Product Summary

Hobby Stock, Twin Tube Shock Type, Rear Position

  • K-Series gas pressure shocks are built with the valving you need for racing, but are assembled in a "stock" configuration body to meet most track rules
  • Split-valve shocks offer additional tuning capabilities over the standard valving
  • Built to the highest quality standards and will deliver the control you need to keep your tires planted and your horsepower working for you
  • 1030 (Rear Shock): Comp/Rebound: 5/5 | 1035 (Rear Shock): Comp/Rebound: 3/5 split valve
  • Compressed Length: 13.00" | Extended Length: 21.00"

Comes as a Kit

See more details

Key Specs

Shock TypeTwin Tube
Shock Body MaterialSteel
Shock Body TypeSmooth
Shock Body SizeLarge Body
PositionRear
See more specs

Need To Know

Quick and Easy Returns

Return Policy

AFCO 9109286 Details

Whatever your street stock choice, AFCO has the stock mount shock for you.  These K-Series gas pressure shocks are built with the valving you need for racing, but are assembled in a "stock" configuration body to meet most track rules.  The split-valve shocks offer additional tuning capabilities over the standard valving.

AFCO K-Series shocks are built to the highest quality standards and will deliver the control you need to keep your tires planted and your horsepower working for you.

Kit Includes:

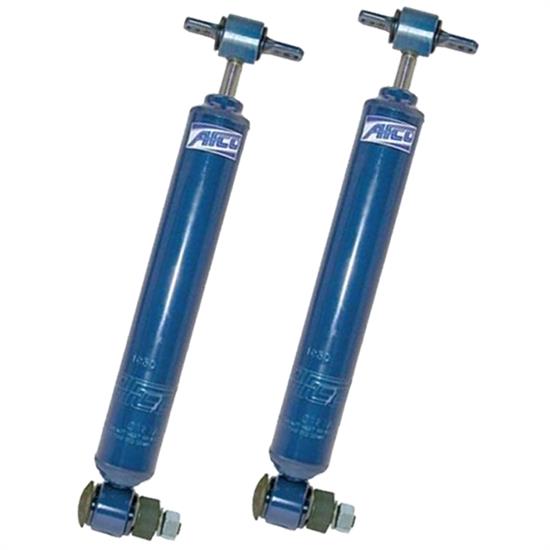

  • (1) AFCO 1030 10 Series GM Street Stock Shock, Rear, Comp/Rebound: 5/5
  • (1) AFCO 1035 10 Series GM Street/Strip Rear Shock, Comp/Rebound: 3/5



AFCO 1030/1035 10 Series GM Street Stock Rear Shocks

  • Compressed Length: 13.00"
  • Extended Length: 21.00"
  • 1030 Comp/Rebound: 5/5
  • 1035 Comp/Rebound: 3/5 split valve
  • These (1035) 40/60 split percentage rear shocks allow the rear to squat which improves traction through weight transfer
  • These (1035) split-valve shocks offer additional tuning capabilities over the standard valving
  • Available Split Valves - Part # 1061035 is a 3 compression/5 rebound split valve shock for rear applications
    • Soft compression accents weight transfer
    • In circle track applications, used on the left rear, this shock tends to tighten corner exit handling
    • Used on the right rear, this shock tends to tighten corner entry handling



Application

  • 1955-86 GM Full Midsize
  • 1963-86 Malibu, Chevelle, Monte Carlo, Cutlass and Regal
  • 1968-79 Nova
  • 1958-70 Impala
  • 1964-86 Chevell/Monte Carlo



Warranty Information

Click for details

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

AFCO 9109286 Specifications

KEY SPECS
MFG. Part #9109286
BrandAFCO
Shock TypeTwin Tube
Shock Body MaterialSteel
Shock Body TypeSmooth
Shock Body SizeLarge Body
PositionRear
Upper Shock MountT-Bar
Lower Shock MountBushed Eyelet
Extended Length Range21.00" to 21.99"
Extended Length21"
Compressed Length Range13.00" to 13.99"
Compressed Length13"
FinishPainted
GENERAL
Sold in QuantityKit

Ratings & Reviews

5

3 Reviews

Overall Assessment

Apologies, but you didn't provide the necessary reviews so I can create the summary you requested. Could you, please, share the reviews for the product you want to be summarized?

5

3 reviews

5

3

4

0

3

0

2

0

1

0

Filter by Ratings

Will buy again

5.0

a month ago

Billy

Caney, KS

Verified

Completely changed and upgraded the way my stock type suspension car handled. Outrunning guys that spend hundreds for one custom shock.

Would Recommend

I would recommend this product to a friend .

5.0

2 years ago

Racer

Sault Ste Marie , Canada

Verified

Product was easy to install & performs as advertised .

Would Recommend

Great product for when you have to run a 10 series shock

5.0

3 years ago

High side hustler

Arkansas

Verified

Stock car rules

Would Recommend

Showing 3 of 3 reviews
