Product Summary

Hobby Stock, Stock Car, Mono Tube Shock Type, Painted

  • K-Series gas pressure shocks are built with the valving you need for racing, but are assembled in a "stock" configuration body to meet most track rules
  • Split-valve shocks offer additional tuning capabilities over the standard valving
  • Built to the highest quality standards and will deliver the control you need to keep your tires planted and your horsepower working for you
  • 1021 (Front Shock): Comp/Rebound: 6/6 | 1022 (Front Shock): Comp/Rebound: 7/4
  • 1030 (Rear Shock): Comp/Rebound: 5/5 | 1035 (Rear Shock): Comp/Rebound: 3/5 split valve

Comes as a Kit

Key Specs

BrandAFCO
Shock TypeMono Tube
Shock Body MaterialSteel
Shock Body TypeSmooth
Shock Body SizeLarge Body

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

Whatever your street stock choice, AFCO has the stock mount shock for you.  These K-Series gas pressure shocks are built with the valving you need for racing, but are assembled in a "stock" configuration body to meet most track rules.  The split-valve shocks offer additional tuning capabilities over the standard valving.

AFCO K-Series shocks are built to the highest quality standards and will deliver the control you need to keep your tires planted and your horsepower working for you.

Kit Includes:

  • (1) AFCO 1021 10 Series Street Stock Front Shock, Comp/Reb: 6/6
  • (1) AFCO 1022 10 Series Street/Strip/Track Front Shock, Comp/Reb: 7/4
  • (1) AFCO 1030 10 Series GM Street Stock Shock, Rear, Comp/Rebound: 5/5
  • (1) AFCO 1035 10 Series GM Street/Strip Rear Shock, Comp/Rebound: 3/5

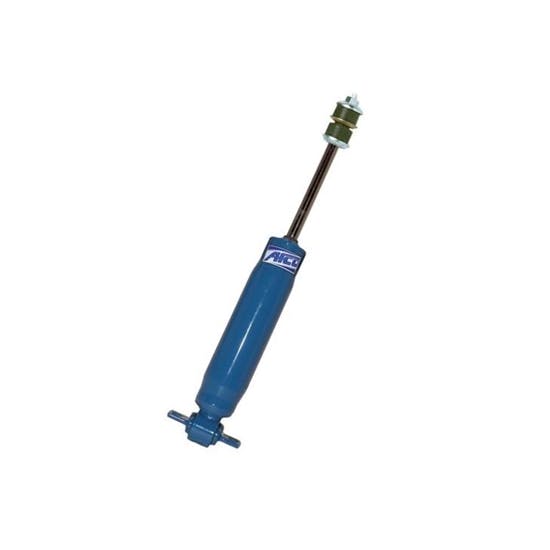

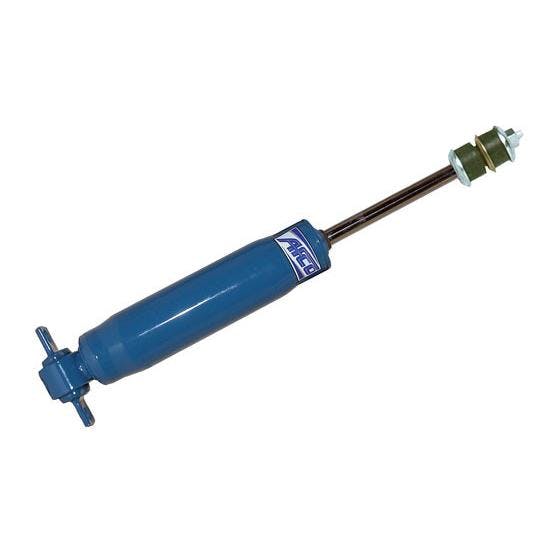

AFCO 1021/1022 10 Series Street Stock Front Shocks

  • Comp. Length: 9.375"
  • Extended Length: 13.375"
  • 1021 Comp/Rebound: 6/6
  • 1022 Comp/Rebound: 7/4
  • 10-Series street/strip/track shocks
  • This (1022) 80/20 front shock allows the front to lift and hold under acceleration, which transfers weight to the rear tires and improves traction
  • Available Split Valves - Part # 1061022 is a "split valve - easy up" shock used on the front to promote weight transfer under acceleration.  This will enhance forward traction.

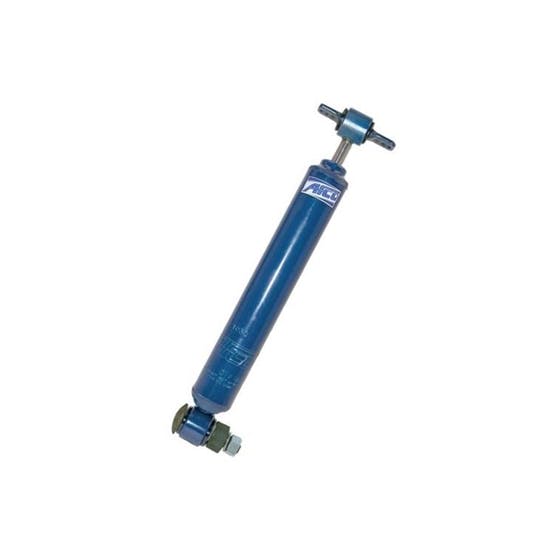

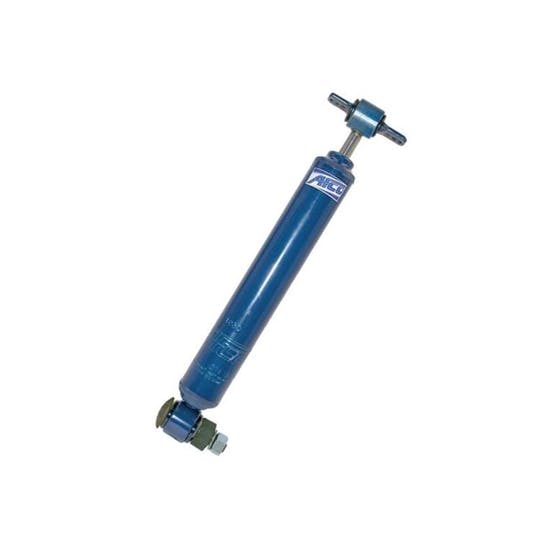

AFCO 1030/1035 10 Series GM Street Stock Rear Shocks

  • Compressed Length: 13.00"
  • Extended Length: 21.00"
  • 1030 Comp/Rebound: 5/5
  • 1035 Comp/Rebound: 3/5 split valve
  • These (1035) 40/60 split percentage rear shocks allow the rear to squat which improves traction through weight transfer
  • These (1035) split-valve shocks offer additional tuning capabilities over the standard valving
  • Available Split Valves - Part # 1061035 is a 3 compression/5 rebound split valve shock for rear applications
    • Soft compression accents weight transfer
    • In circle track applications, used on the left rear, this shock tends to tighten corner exit handling
    • Used on the right rear, this shock tends to tighten corner entry handling



Application





Specifications

KEY SPECS
BrandAFCO
Shock TypeMono Tube
Shock Body MaterialSteel
Shock Body TypeSmooth
Shock Body SizeLarge Body
GENERAL
PositionFront and Rear
FinishPainted
Bushing MaterialRubber
Sold in QuantityKit
ColorBlue
