| MFG. Part # | 50-1215 |
| Electric Fuel Pump Type | In Tank |
| Free Flow Rate | 85 GPH / 322 LPH |
| Maximum Pressure | 80 psi |
| Voltage | 12 volts |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAEM’s 340LPH E85-Compatible High Flow In-Tank Fuel Pumps feature robust internal construction that is designed to withstand the low lubricity characteristics of ethanol and methanol fuels and are tested to work with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline. Its compact, short body design (65mm length) with mounting hooks also makes it ideal in universal applications that have fuel tanks with tight tolerances.
The AEM 340LPH E85-Compatible High Flow In-Tank Fuel Pump is designed for in-tank mounting on high performance naturally aspirated and forced induction vehicles. It features a compact 39mm diameter that fits most applications and an offset inlet design that eases installation.

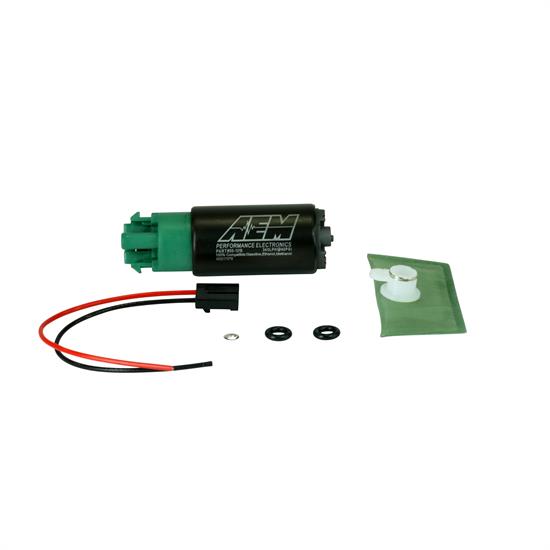

The 340LPH E85-Compatible High Flow In-Tank fuel pump includes a wiring harness, pre-filter, and O-rings. Every AEM 340LPH E85-Compatible Fuel Pump is tested to flow 340 lph at 40 PSI before it is packaged for sale.
Specs
TECHNICAL SPECS:
VOLTAGE SPECS:
* Power rating given at 40 PSI, 13.5v at the pump terminal with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 50-1215 |
| Brand | AEM Electronics |
| Electric Fuel Pump Type | In Tank |
| Free Flow Rate | 85 GPH / 322 LPH |
| Maximum Pressure | 80 psi |
| Voltage | 12 volts |
| GENERAL | |
| Electric Fuel Pump Inlet Fitting(s) | 11mm Hose Barb |
| Electric Fuel Pump Outlet Fitting(s) | 8mm Hose Barb |
| Fuel Pressure Regulator Included | No |
| Sending Unit Included | No |
| Gasket(s) Included | No |
| Wiring Harness Included | No |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Sold in Quantity | Each |
| GTIN Code | 840879024451 |
