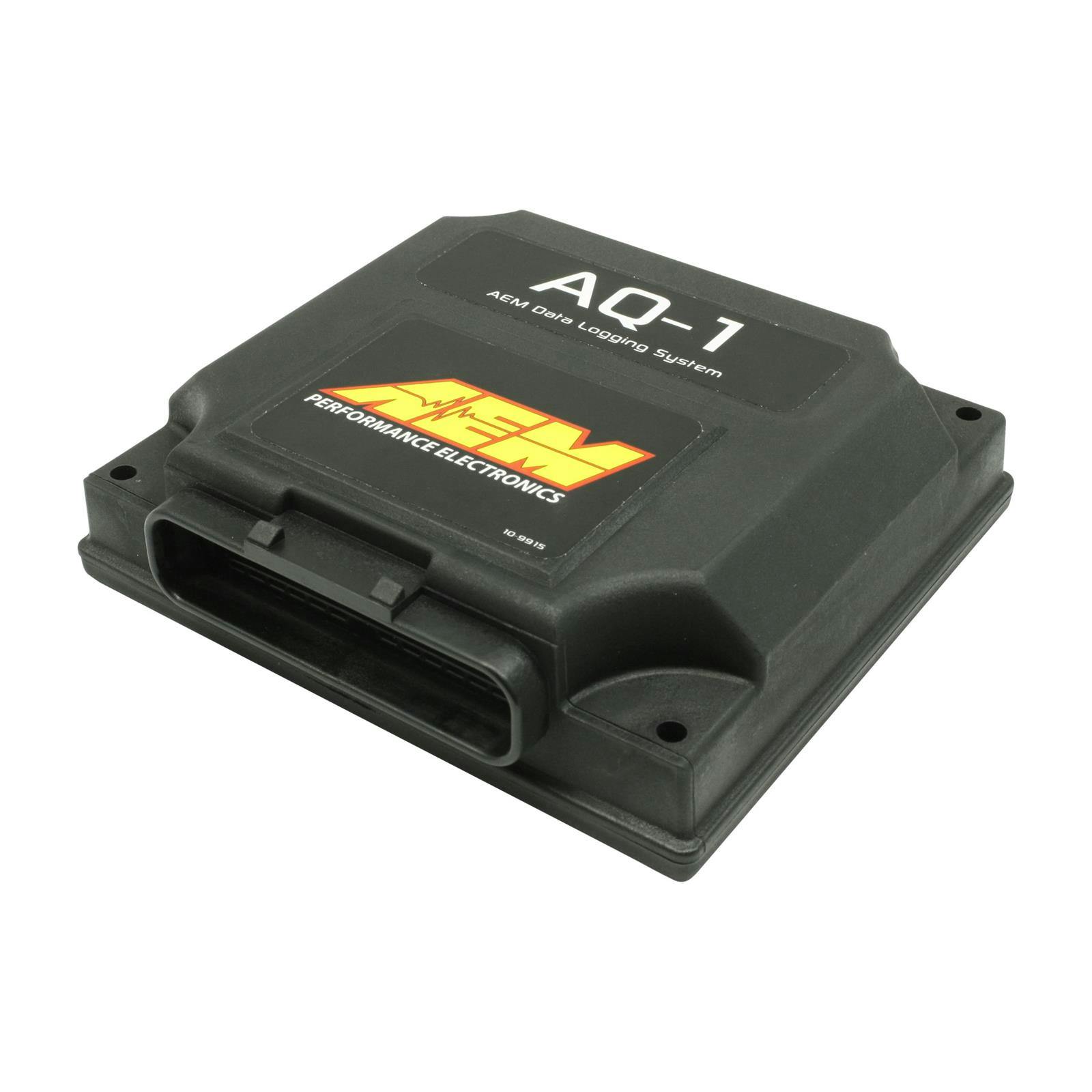

AEM 30-2500 AQ-1 Data Logging System

AEM’s AQ-1 Data Logger is easy to use, feature-packed, and with an approximate street price of $395 is less than half the cost of most competitive data loggers. With logging rates of up to 1000HZ (1000 samples/second) per channel, the AQ-1 is one of the fastest data loggers on the market, and it comes with 8GB of logging memory standard. It features an internal 3-axis accelerometer, a removable SD card for virtually unlimited logging (up to 32GB capable), and includes an available RS-232 serial input for adding an NMEA GPS device.

The AQ-1 Data Logger is the ideal entry-level data logger for virtually all forms of racing and Motorsports because it installs easily, can read live parameters from ancillary sensors, AEMnet enabled devices, GPS and more, and put them into a single log make your data easy to view. Whether you race a late model EFI-equipped OR carbureted vehicle, the AQ-1 is the ideal solution for your data acquisition needs.

The AQ-1 Data Logger is the ideal logger upgrade for current AEM Series-2 and EMS-4 users. The AQ-1 can receive data from the Series-2 and EMS-4 via the AEMnet CAN output. This allows users to expand their logging up to 32GB, while enjoying lightning-fast downloads and all the features available in AEMdata, including video overlays!

Features

The AQ-1 Data Logger includes three switched/digital inputs, four 0-5 V analog inputs with optional pull-up resistor for RTD/Thermistor-style sensors, four additional analog inputs that can optionally be used to measure RPM or other frequency-based signals, and AEMnet (a high-speed communications network that links enabled AEM products together) capability for direct connection to a 4-Channel UEGO controller, AEM Series2 EMS or other future AEMnet enabled devices.

EASY INSTALL & SET UP

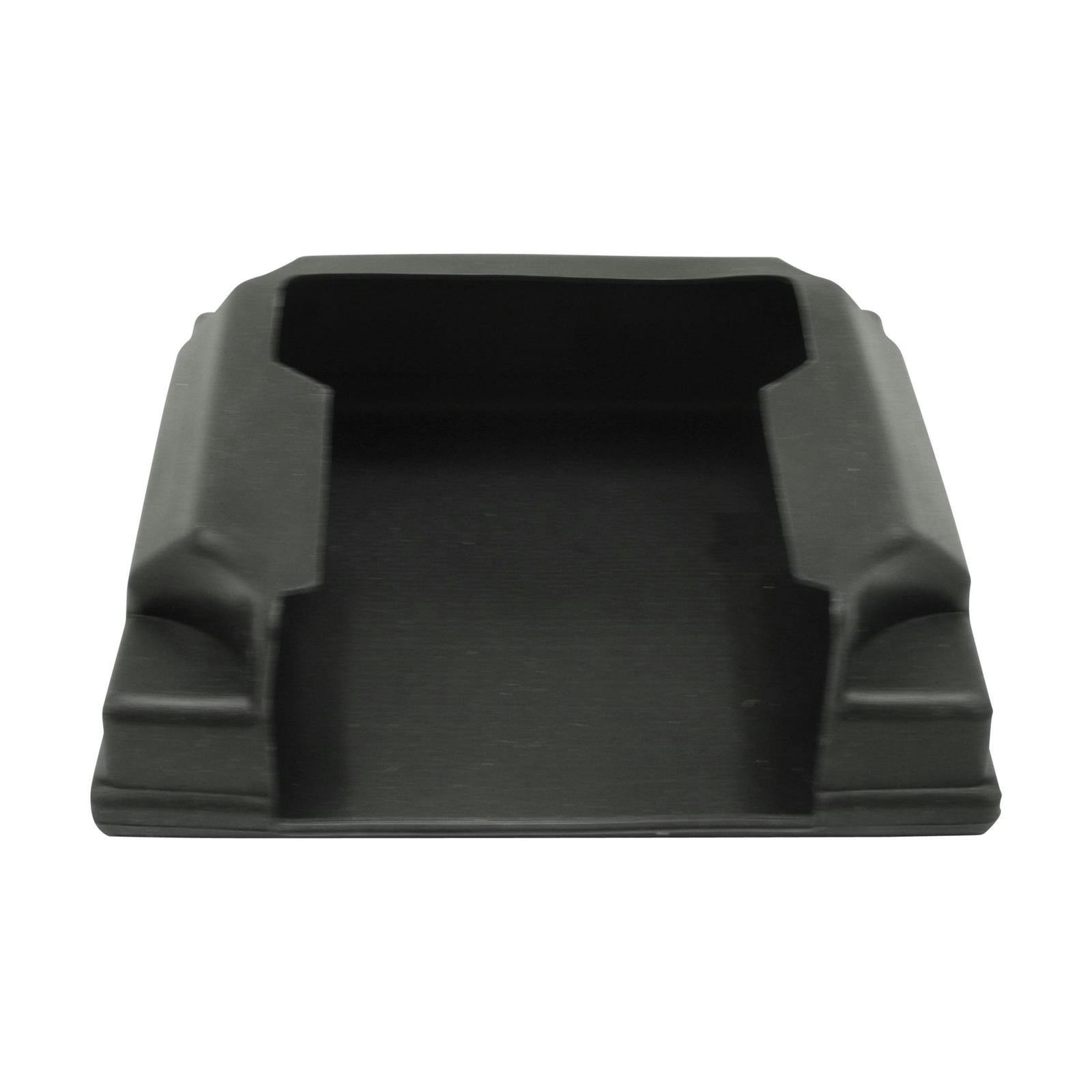

AEM offers a flying lead harness AQ-1 Data Logger with a weather-proof connector and labeled wires for easy installation (sold separately). Its compact size makes it easy to install (4.80” x 4.55” x 1.44”), and its rugged enclosure features a weather-resistant dust cover for added durability.

The AQ-1 Data Logger interfaces via USB connection to a laptop, and the included software is easy to use with detailed configuration screens to simplify set up and use. Log files are generated for use with AEMdata, AEM’s proven software analysis program.

• Intuitive software
• Removable SD card for virtually unlimited logging (8GB card included, supports cards up to 32GB)
• Log virtually any engine parameter, TPS, APP, shock travel, clutch pressure, brake pressure and more!
• Three switched-to-ground inputs for clutch, brake, cooling fan ground switch, nitrous solenoid ground or ground switch to start and stop AQ-1 Logger (ground activated input)
• Track mapping capability

The AQ-1 Data Logger records and stores vehicle data so that it can be downloaded and analyzed. Knowledge is power, and the information stored in the AQ-1 Data Logger can help users improve a vehicle’s tuning and set up, and driving ability. It is ideal for all types of racing and street performance enthusiast vehicles.

• Log AEM gauges, MAP/pressure sensors, TPS, APP, shock travel, load cell sensors, analog, and frequency MAF sensors, any 2-wire temp sensor, any 3-wire pressure sensor, RTD, EGT, vehicle speed, injector duty cycle, boost control solenoid, flow sensor, HALL sensor, clutch pressure, brake pressure, and more!
• Three switched-to-ground inputs for clutch, brake, cooling fan ground switch, nitrous solenoid ground or ground switch to start and stop AQ1 Logger (ground activated input)
• Track mapping capability via NMEA GPS device (RS 232 serial port included)
• Internal 3-axis accelerometer
• AEMnet enabled (will communicate with other AEMnet devices via daisy chain)
• Powerful AEMdata data analysis software is free
• 8GB card included, supports cards up to 32GB
• Size: 4.8" x 4.55" x 1.44"
• Wiring harnesses available (sold separately)

AEMnet CANbus DEVICES SUPPORTED BY AQ-1 SOFTWARE VERSION 1.7

• 30-0300 X-Series Wideband UEGO AFR Gauge (LSU4.9)
• 30-0301 X-Series Oil/Fuel Pressure Gauge 0 to 100psi / 0 to 7bar
• 30-0302 X-Series Oil/Transmission/Water Temperature Gauge 100 to 300F / 40 to 150C
• 30-0305 X-Series EGT Gauge 0 to 1800F / 0 to 1000C
• 30-0306 X-Series Boost Gauge -30inHg to 35psi / -1 to 2.5bar
• 30-0307 X-Series Oil Pressure Gauge 0 to 150psi / 0 to 10bar
• 30-0308 X-Series Boost Gauge -30inHg to 60psi / -1 to 4bar
• 30-0309 X-Series Boost/Fuel Pressure Gauge 0 to 15psi SAE Only
• 30-0310 X-Series Inline Wideband UEGO AFR Controller (LSU4.9)
• 30-0313 X-Series GPS Speedometer Gauge 0 to 160mph / 0 to 260kph
• 30-2203 Vehicle Dynamics Module
• 30-2340 4 Channel Wideband UEGO Controller
• 30-4900 Wideband Failsafe Gauge
• 30-4911 Flex Fuel Wideband Failsafe
• 30-6905 Universal Programmable Engine Manement System. EMS 4
• 30-71XX Infinity ECU (All models and firmwares)
• N/A Series 2 Plug & Play Engine Management System

CHANNELS 1-4 - 0-5V or optional pullup resistor for RTD/Thermistor-style sensors

Choose up to 4(Sensor Examples)

• Air/Fuel Ratio 1
• Air/Fuel Ratio 2
• Air/Fuel Ratio 3
• Air/Fuel Ratio 4
• 0-5V Boost
• 0-5V Boost After Intercooler
• 0-5V Boost Before Intercooler
• 0-5V MAP
• 0-5V Exhaust Back Pressure
• 0-5V Crank Case Pressure
• 0-5V Fuel Pressure
• 0-5V Oil Pressure
• 0-5V Clutch Pressure
• 0-5V Brake Pressure
• 0-5V Shock Travel Sensor
• Air Temperature
• Coolant Temperature
• Trans Temperature
• EGT 1
• EGT 2
• EGT 3
• EGT 4

CHANNELS 5-8 - 0-5V, 0-16.5V or Frequency based sensors

Choose up to 4(Examples of sensors)

• Air/Fuel Ratio 1
• Air/Fuel Ratio 2
• Air/Fuel Ratio 3
• Air/Fuel Ratio 4
• 0-5V Boost
• 0-5V Boost After Intercooler
• 0-5V Boost Before Intercooler
• 0-5V MAP
• 0-5V Exhaust Back Pressure
• 0-5V Crank Case Pressure
• 0-5V Fuel Pressure
• 0-5V Oil Pressure
• 0-5V Clutch Pressure
• 0-5V Brake Pressure
• 0-5V Shock Travel Sensor
• RPM
• Driveshaft Speed
• Wheel Speed
• Turbo Speed

Switched Digital Inputs 1-3

Choose up to 3(Examples)

• Clutch Switch
• Brake Switch
• Line Lock
• Nitrous Switch

Serial/GPS

Choose 1(Examples)

• GPS for Vehicle Speed, GPS Location and Track Mapping - Recommended Garmin 18x 1Hz & 5Hz models(some wiring may be required)
• Series 1 EMS
• Series 2 EMS

AEMnet

• Infinity EMS
• Wideband Failsafe
• 4-Channel Wideband UEGO Controller
• Series 2 EMS
• EMS-4
