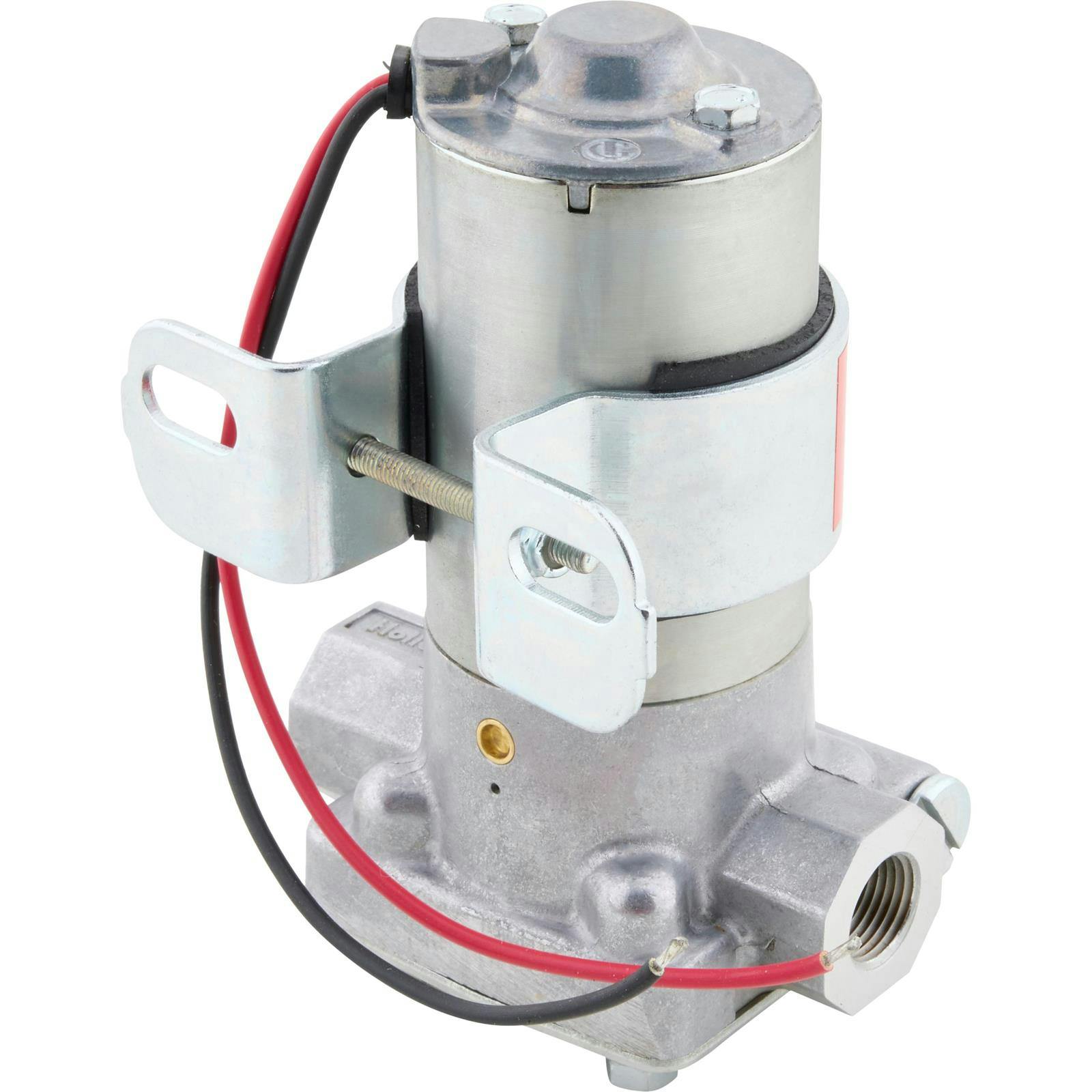

97 GPH Red Electric Fuel Pump and 3/8 NPT to 3/8 Hose Barbs

Holley's Red Electric fuel pump is a standard pressure street pump for gas only. It has a pressure preset of 7 psi and a free flow capacity of 97 gph. It flows 67 gph while maintaining 5 psi. No regulator required. Has a 3/8" NPT inlet and outlet.

• Tumble polished billet look
• Improved design for street/strip applications
• Distinctive "Red" logo
• Flows 97 GPH (free flow)
• Flows 71 GPH at 4 PSI
• Regulator is not required
• Motor draws only 2 amps current
• 7-1/2 Amp fuse recommended
• Provides constant fuel flow with no pulsation
• Has externally accessible pressure relief valve (max 7 PSI)
• Rotor/Vane pump design is more tolerant of contaminated fuels
• New lower housing casting for enhanced fuel flow and quieter operation
• Weighs only 2.88 lbs.
• Includes mounting bracket
• Repair kits are readily available
• NOT compatible with alcohol or methanol fuels
• Use of safety shut-off switch strongly recommended
• Not designed or recommended for use with fuel injection systems
• 3/8 NPT inlet/outlet
• Includes (2) 3/8" NPT to 3/8" hose barbs

425-12801 Instruction Sheet (PDF)

Fuel Pump Tech Info (PDF)
