#9101413

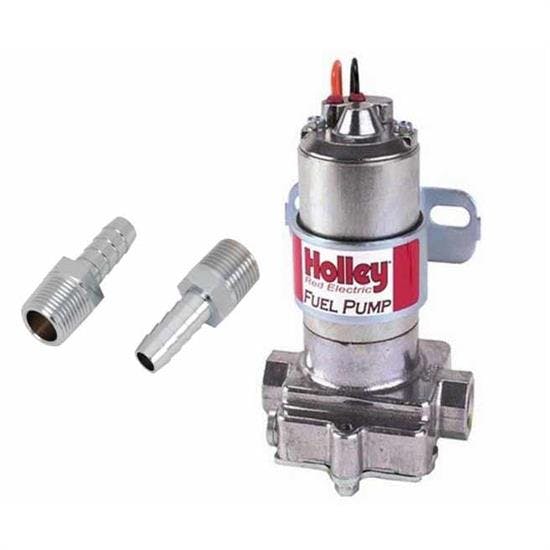

97 GPH Red Electric Fuel Pump and 3/8 NPT to 3/8 Hose Barbs
2 Reviews
|
Ask a Question
- Flows 97 GPH (free flow) and 71 GPH at 4 PSI
- Engineered to provide constant fuel flow with no pulsation
- Has an externally accessible pressure relief valve (max 7 PSI)
See More
$176.34
kit
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, External Electric Fuel Pump Type
- Flows 97 GPH (free flow) and 71 GPH at 4 PSI
- Engineered to provide constant fuel flow with no pulsation
- Has an externally accessible pressure relief valve (max 7 PSI)
- Regulator is not required and the motor only draws 2 amps of current
- Chrome hose barb adapters included
Comes as a Kit
View Kit Components
See more details
Key Specs
| MFG. Part # | 9101413 |
| Brand | Speedway Motors |
| Electric Fuel Pump Type | External |
| Free Flow Rate | 97 GPH / 367 LPH |
| Maximum Pressure | 7 psi |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9101413 Details
Speedway Motors 9101413 Details
Holley's Red Electric fuel pump is a standard pressure street pump for gas only. It has a pressure preset of 7 psi and a free flow capacity of 97 gph. It flows 67 gph while maintaining 5 psi. No regulator required. Has a 3/8" NPT inlet and outlet.
- Tumble polished billet look
- Improved design for street/strip applications
- Distinctive "Red" logo
- Flows 97 GPH (free flow)
- Flows 71 GPH at 4 PSI
- Regulator is not required
- Motor draws only 2 amps current
- 7-1/2 Amp fuse recommended
- Provides constant fuel flow with no pulsation
- Has externally accessible pressure relief valve (max 7 PSI)
- Rotor/Vane pump design is more tolerant of contaminated fuels
- New lower housing casting for enhanced fuel flow and quieter operation
- Weighs only 2.88 lbs.
- Includes mounting bracket
- Repair kits are readily available
- NOT compatible with alcohol or methanol fuels
- Use of safety shut-off switch strongly recommended
- Not designed or recommended for use with fuel injection systems
- 3/8 NPT inlet/outlet
- Includes (2) 3/8" NPT to 3/8" hose barbs
Charts
425-12801 Instruction Sheet (PDF)
Fuel Pump Tech Info (PDF)
Speedway Motors 9101413 Specifications
Speedway Motors 9101413 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9101413 |
| Brand | Speedway Motors |
| Electric Fuel Pump Type | External |
| Free Flow Rate | 97 GPH / 367 LPH |
| Maximum Pressure | 7 psi |
| GENERAL | |
| PSI Flow Rate | 67 GPH at 5 PSI |
| Inline | No |
| Electric Fuel Pump Inlet Fitting(s) | 3/8" NPT Female |
| Electric Fuel Pump Outlet Fitting(s) | 3/8" NPT Female |
| Fittings Included | Yes |
| Overall Height | 5.50" |
| Center to Center | 2.67" |
| Base Length | 3.11" |
| Base Width | 3.73" |
| Sold in Quantity | Kit |
| Notes | Inlet is on pressure relief screw side |
