9 Inch Ford Overhaul Kit, No Carrier Bearing
9 Inch Ford Overhaul Kit, No Carrier Bearing

9 Inch Ford Overhaul Kit, No Carrier Bearing

2 Reviews | 0 Answered Questions
In Stock
Can Ship FREE
9 Inch Ford Overhaul Kit, No Carrier Bearing
9 Inch Ford Overhaul Kit, No Carrier Bearing
Zoomed In Image
Part # 9190955
$59.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Hardware Included:
No
Sold in Quantity:
Kit

Info

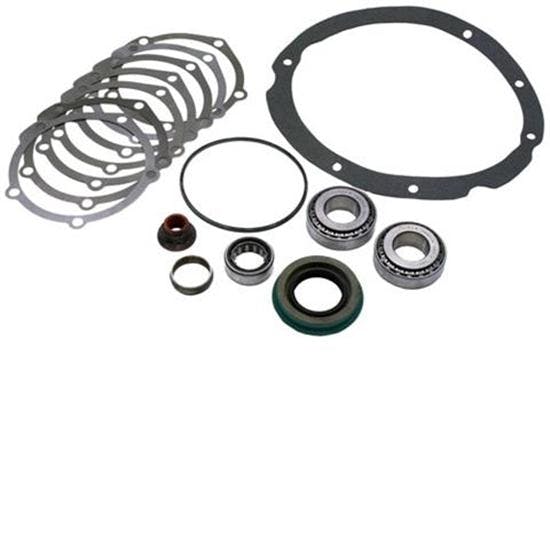

This 9" Ford overhaul kit includes: pinion pilot, pinion shaft, pinion nut, pinion seal, gasket, shims, and crush collar. Ring gear bolts not included.

NOTE: All Ford 9" full spools use overhaul kit 9190950-31, even if they are a 28-spline spool. The 9190950-31 contains the large I.D. standard O.D. carrier bearings and pinion bearings needed for use with our full spools.

If you are using the H.D. nodular iron center section which uses the large diameter carrier bearings, order kit 9190950-31s, which also includes the large pinion bearings for use with the Daytona pinion support.

9" Ford Carrier Bearing Chart (GIF)  - Double check your bearing p/n.

Application

  • 9190950-28
    • Includes carrier bearing # LM501349
    • 28-spline axles DO NOT guarantee that the LM501349 bearings are used in the carrier. If in doubt, double check the bearings used and then order accordingly.
  • 9190950-31
    • Includes carrier bearing # LM102949
    • 31-spline axles DO NOT guarantee that the LM102949 bearings are used in the carrier. If in doubt, double check the bearings used and then order accordingly.
  • 9190950-31S
    • Carrier bearing # LM603049 (CONE) and LM603011 (CUP) TM88048 (CONE)
    • Outer pinion bearing TM88010 (CUP)
    • Large "Daytona" inner pinion bearing  HM89443 (CONE)
    • Race # HM89410 (CUP)
      • LM603049 CONE ID:  1.781"
      • LM603011 CUP OD:  3.063"
      • TM88048 CONE ID:  1.308"
      • TM88010 CUP OD:  2.687"
      • HM89443 CONE ID:  1.308"
      • HM89410 CUP OD:  3.00"

Specs

  • 9190950-28
    • Includes carrier bearing # LM501349
    • 28-spline axles DO NOT guarantee that the LM501349 bearings are used in the carrier. If in doubt, double check the bearings used and then order accordingly.
  • 9190950-31
    • Includes carrier bearing # LM102949
    • 31-spline axles DO NOT guarantee that the LM102949 bearings are used in the carrier. If in doubt, double check the bearings used and then order accordingly.
  • 9190950-31S
    • Carrier bearing # LM603049 (CONE) and LM603011 (CUP) TM88048 (CONE)
    • Outer pinion bearing TM88010 (CUP)
    • Large "Daytona" inner pinion bearing  HM89443 (CONE)
    • Race # HM89410 (CUP)
      • LM603049 CONE ID:  1.781"
      • LM603011 CUP OD:  3.063"
      • TM88048 CONE ID:  1.308"
      • TM88010 CUP OD:  2.687"
      • HM89443 CONE ID:  1.308"
      • HM89410 CUP OD:  3.00"

Notes

Includes: pinion pilot, pinion nut, pinion seal, gasket, shims, and crush collar. Ring gear bolts not included.
Some parts are not legal for use in California or other states with similar laws/regulations
