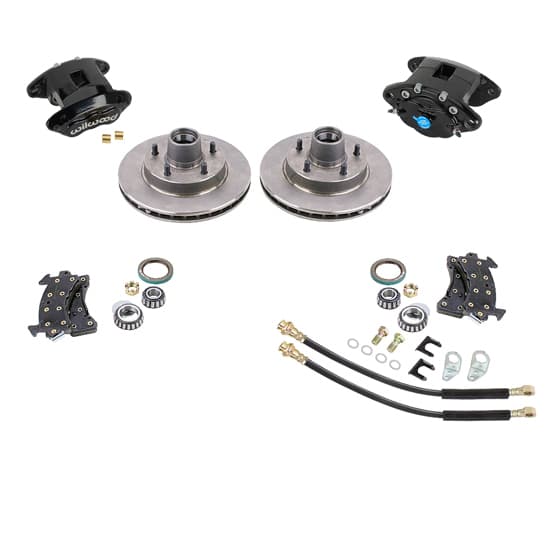

55-57 GM Disc Brake Kit for 2" Drop Spindles W/ Wilwood Calipers

#91696095

55-57 GM Disc Brake Kit for 2" Drop Spindles W/ Wilwood Calipers

This disc brake kit is for use with 1955 to 1957 Chevy 2" drop spindles part number 91034921
Premium 10-1/2" GM vented brake rotors for excellent stopping power and fade free performance
Includes D154 Wilwood calipers, brake pads, and slide bolts

Type:

Wilwood Caliper Kit for 910-34921

Spindle W/ Brackets Only Stock-Style Brake Kit for 910-34921

$582.99

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 10.50 Inch Rotor Diameter

This disc brake kit is for use with 1955 to 1957 Chevy 2" drop spindles part number 91034921
Premium 10-1/2" GM vented brake rotors for excellent stopping power and fade free performance
Includes D154 Wilwood calipers, brake pads, and slide bolts
New bearings, seals, and brake hoses are also provided in this kit
Instructions are provdied to simplify installation

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #	91031992
Position	Front
Wheel Bolt Pattern (in.)	5x4.75 in.
Wheel Bolt Pattern (mm)	5x120.65 mm
Rotor Diameter	10.50 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 91031992 Details

Disc brake kit features 10-½" GM vented cast iron rotors and Wilwood D154 dual-piston calipers.

10-1/2" rotors (O.E. on 1979-81 GM Midsize: Malibu, Monte Carlo, Cutlass, Regal, etc.)
5 x 4-3/4" bolt pattern
Rubber Brake Lines
Wilwood D154 Calipers
7/16"-20 inlet fitting
Includes all hardware: pads, slide bolts, seals, inner & outer wheel bearings, spindle nuts, dust caps

Spindles sold separately.

Item Details

Spindles & Caliper Brackets are NOT included. Available as part #s 910-34921 & 910-34927

Features

This kit will not work with the original '55-'57 Chevy drum brake master cylinder. It does not have the capacity to supply the proper amount of pressure for front disc brakes. For best results, we recommend using master cylinder booster kit 910-35556 with this front disc brake conversion.
Front drum-to-disc brake conversions also require a proportioning valve to be installed in the rear brake line circuit. The proportioning valve modulates pressure to the rear brakes which is necessary to prevent the rear brakes from locking up in an emergency stop situatiuon. Recommended master cylinder booster kit 910-35556 also incudes an adjustable proportioning valve to allow for a proper installation of front disc brakes.

Guides & Documents

Disc Brake Pads Technical Information (9193381)

Brake Pad Identification and Friction Surface Options Explained

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Speedway Motors 91031992 Specifications

KEY SPECS
MFG. Part #	91031992
Brand	Speedway Motors
Position	Front
Wheel Bolt Pattern (in.)	5x4.75 in.
Wheel Bolt Pattern (mm)	5x120.65 mm
Rotor Diameter	10.50 Inch
Rotor Type	Vented
Caliper Pistons	Two
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	14 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Plain Face
Front Rotor Included	Yes
Front Rotor Diameter	10.50 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	No
Rear Rotor Included	No
Bolt Pattern	5 on 4.75"
Finish	Powder Coated
Front Caliper Piston Quantity	Two
Front Caliper Finish	Powder Coated

GENERAL
Sold in Quantity	Kit
Notes	Includes rotors, bearings and seals, calipers, pads, brake hoses, and brake tabs.
Rotor Thickness	1.04"
Centerline of Holes	5.5"
Front Suspension Type	IFS
Rotor Material Type	Cast Iron
Front Caliper Material	Aluminum
Caliper Material Type	Aluminum
Piston Diameter	2"

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1978-1987 Buick Regal

1957 Chevy Del Ray

1978-1983 Chevy Malibu

1978-1988 Chevy Monte Carlo

1978-1987 Oldsmobile Cutlass
