4 Way Air Ride Suspension Kit
Universal Fit, 23 amps Amperage
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Viair 450C air suspension single compressor kit is a continuous duty cycle compressor. Features include a standard 1/4" NPT stainless braided leader hose with inline check valve and insulated wireing for simple instructions.
Seamless aluminum air tanks have revolutionized welded air tank construction. Speedway Motors has adapted a new style of technology to create a non-welded tank. The metal spinning process has allowed Specialty to manufacture the tanks from a single piece of extruded aluminum tube. Their technique of closing both ends of the tube using the base material creates a true seamless tank.
- (1) Air Suspension Compressor Kit
- 10.6" x 4" x 6.8"
- Amperage: 23 amps
- Voltage: 12 volts
- Permanent Magnetic Motor
- 100% duty cycle @ 100 psi
- 150 psi max working pressure
- Permanent Magnetic Motor
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (1) 18 Inch Aluminum Air Suspension Tank
- 3 gallon capacity
- 18" x 6.6"
- (4) 3/8" NPT ports
- (1) 1/4" NPT port
- Rated to 200psi
- (1) Air Suspension 8 Position Switch Controller
- Microprocessor control
- Coil Saver Technology
- Modular system
- One-wire communication for flexible operation
- Four corner control with Pancake
- (1) 4-Corner Valve Manifold
- 3/8 Inch
- D.O.T. Push-to-connect style fittings
- Rated @ 200psi
- (4) Bag inlets
- (2) Tank inlets
- Dual slot exhaust ports w/ integrated internal exhaust mufflers
- (1) 20 Foot Air Suspension Line
- 3/8 Inch
- (1) 15 Foot Air Suspension Line
- 3/8 Inch
- (1) 1/4 In x Male 3/8 In NPT Pipe Bushing Reducer
- Fitting End A: 3/8" NPT Male
- Fitting End B: 1/4" NPT Female
- Angle: Straight
- Material Type: Aluminum
- Finish: Anodized
- Color: Black
- (1) Air Suspension Tank Drain Petcock
- 1/4 Inch Male NPT
- (1) Air Suspension Push-In Tubing 90 Degree Elbow Fitting
- Angle: 90 degree
- Fitting End A: 3/8" Tube
- Fitting End B: 3/8" NPT
- Material Type: Brass
- Fitting Attachment 1: Push-On
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

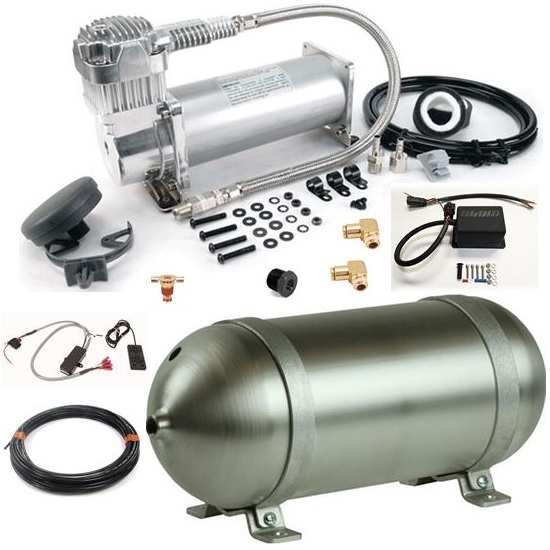

What's In The Kit
Slam Specialties SV-8C 4-Corner Valve Manifold, 3/8 InchPart # 9109025Qty x 1
Viair 45040 Single Air Suspension Compressor Kit, 450CPart # 91045040Qty x 1
Speedway 18 Inch Aluminum Air Suspension Tank, 2 GallonPart # 9109022Qty x 1
Slam Specialties MC.1-SS Air Suspension 8 Switch ControllerPart # 9109024Qty x 1
Synflex Air Suspension Line, 3/8 Inch, Black, 20 ft.Part # 6175029-20Qty x 1
Synflex Air Suspension Line, 3/8 Inch, Black, 15 ft.Part # 6175029-15Qty x 1
Earls AT991202ERL Female 1/4 In x Male 3/8 In NPT Pipe Bushing ReducerPart # 425AT991202ERLQty x 1
Viair 92835 Air Suspension Tank Drain Petcock, 1/4 Inch NPTPart # 91092835Qty x 1
Air Suspension Push-In Tubing 90 Degree Elbow Fitting, 3/8 NPT MalePart # 6175016Qty x 2
