Product Summary

Universal Fit, Steel, 0.188" Tube O.D., -3 AN

  • This brake line kit makes it easy to install all new brake lines on your project
  • Includes 25 ft roll of PVF Poly-Armour coated premium steel 3/16" brake line
  • Considered a premium line, Poly-Armour hard line should be used on any vehicle that will see any type of harsh environment including snow, road treatments, salt, air, dirt/gravel etc.
  • Includes stainless steel hard line tubing sleeves and nuts
  • A flare tool such as 91089520 or 91089528 will be needed to create 37 degree flares

Comes as a Kit

Key Specs

BrandSpeedway Motors

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

Speedway makes plumbing brake lines easy with this steel brake line kit that includes new lines and fittings to make your job less stressful.

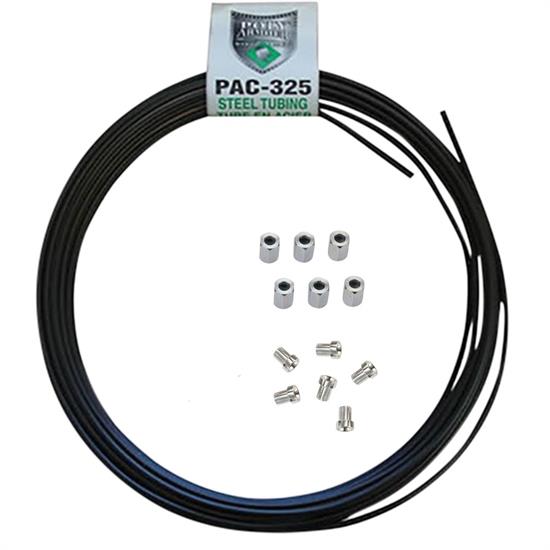

Kit Includes:

  • (1) 25 Ft. Roll of Speedway 3/16 Inch PVF Coated Steel Brake Line
  • (6) Speedway Stainless Steel -3 AN Hard Line Tube Sleeves
  • (6) Speedway Stainless Steel -3 AN Fitting Tube Nuts

Learn more about flaring lines for our automotive fittings by reading our tech article. The Principles of Automotive Fittings.



Speedway 3/16 Inch PVF Coated Steel Brake Line

Now available for your 3/16" brake line consideration is a new PVF Poly-Armour Poly-Vinyl Fluorine coated brake line.

  • PVF coating is a highly durable 'plastic' coating that is 'baked and cured' to the line for a durable finish that provides a clean look and appearance with a dark olive green color
  • This provides extra protection from corrosion, debris, and road surfacing solutions
  • Also offers superior bend-ability without kinking and bends easier than standard brake line tubing
  • This makes Poly-Armour the easiest line to work with-period!
  • Underneath the PVF coating is a double-wall, low carbon steel, copper brazed tubing which meets all international and U.S. requirements for brake tubing
  • Considered a premium line, Poly-Armour hard line should be used on any vehicle that will see any type of harsh environment including snow, road treatments, salt, air, dirt/gravel etc.
  • PVF Poly-Armour coated line is the perfect choice for the racer for those weekend after race chassis washes week after week or any street rod fabricator wanting to utilize a hard line application for that beautiful finish that will last for years
  • Available in a 25' roll of 3/16" line
  • This line bends easily and smoothly with hand tools and can be flared with a 37° AN flaring tool, or 45° double flaring tool
  • Use in conjunction with our 3/8"-24 inverted flare male brake line nuts, or AN tube nuts and sleeves



Speedway Stainless Steel -3 AN Hard Line Tube Sleeves

  • These stainless steel hard line tubing sleeves are commonly used in brake line systems
  • They slip over 3/16" brake line tube and allow you to make a 37-degree flare -3 AN connection when used with included nuts



Speedway Stainless Steel -3 AN Fitting Tube Nuts

  • These stainless steel hard line tubing nuts are commonly used in brake line systems
  • They allow you to make a 37-degree flare -3 AN connection when used with included sleeves
  • Works with 3/16" diameter brake line
  • Also available are stainless -3AN Bulkhead-3 AN Couplers, and Pipe to -3AN Fittings to help complete your brake line installation



Charts

Specifications

KEY SPECS
BrandSpeedway Motors
GENERAL
Material TypeSteel
Tube O.D.0.188"
Overall Length25 ft.
AN Size-3 AN
Thread Pitch
FinishPoly-Vinyl Fluorine (PVF)
Sold in QuantityKit
