3/16 PVF Coated Steel Brake Line Kit, 3/8-9/16-1/2 Inch Fittings
Universal Fit, Steel, 0.188" Tube O.D., 25 ft. Overall Length, Poly-Vinyl Fluorine (PVF)

















- Considered a premium line, Poly-Armour hard line should be used on any vehicle that will see any type of harsh environment including snow, road treatments, salt, air, dirt/gravel etc.
- PVF Poly-Armour coated line is the perfect choice for those after race chassis washes each week or any street rod fabricator wanting a hard line application that will last for years
- Stainless Steel 3/8"-24 SAE I.F. Male, 1/2-20 SAE, and 9/16-18 SAE hard line tubing nuts included
- 25' roll of 3/16" line
- Ideal for creating custom brake lines
Build Your Kit
You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.Details
Info
Speedway makes plumbing brake lines easy with this steel brake line kit that includes new lines and fittings to make your job less stressful.

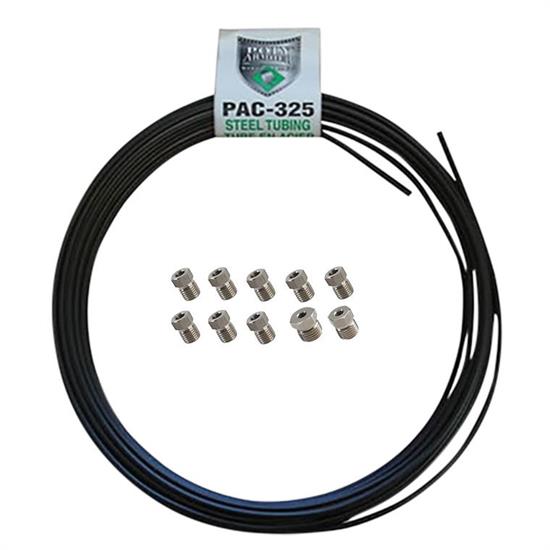

Kit Includes:
- (1) 25 Ft. Roll of Speedway 3/16 Inch PVF Coated Steel Brake Line
- (8) Speedway Stainless Steel 3/8 Inch Fitting Tube Nut, 3/16 Tubing
- (1) Speedway Stainless Steel 1/2 Inch Fitting Tube Nut, 3/16 Tubing
- (1) Speedway Stainless Steel 9/16 Inch Fitting Tube Nut, 3/16 Tubing
Learn more about flaring lines for our automotive fittings by reading our tech article. The Principles of Automotive Fittings.
Speedway 3/16 Inch PVF Coated Steel Brake Line
Now available for your 3/16" brake line consideration is a new PVF Poly-Armour Poly-Vinyl Fluorine coated brake line.
- PVF coating is a highly durable 'plastic' coating that is 'baked and cured' to the line for a durable finish that provides a clean look and appearance with a dark olive green color
- This provides extra protection from corrosion, debris, and road surfacing solutions
- Also offers superior bend-ability without kinking and bends easier than standard brake line tubing
- This makes Poly-Armour the easiest line to work with-period!
- Underneath the PVF coating is a double-wall, low carbon steel, copper brazed tubing which meets all international and U.S. requirements for brake tubing
- Considered a premium line, Poly-Armour hard line should be used on any vehicle that will see any type of harsh environment including snow, road treatments, salt, air, dirt/gravel etc.
- PVF Poly-Armour coated line is the perfect choice for the racer for those weekend after race chassis washes week after week or any street rod fabricator wanting to utilize a hard line application for that beautiful finish that will last for years
- Available in a 25' roll of 3/16" line
- This line bends easily and smoothly with hand tools and can be flared with a 37° AN flaring tool, or 45° double flaring tool
- Use in conjunction with our 3/8"-24 inverted flare male brake line nuts, or AN tube nuts and sleeves
Speedway Stainless Steel 3/8 Inch Fitting Tube Nut, 3/16 Tubing
- These stainless steel hard line tubing nuts are commonly used in brake line systems
- 3/8"-24 SAE I.F. Male
- Stainless Steel
- Used on 3/16" OD tubing
Speedway Stainless Steel 1/2 Inch Fitting Tube Nut, 3/16 Tubing
- These stainless steel hard line tubing nuts are commonly used in brake line systems
- 1/2-20 SAE
- Stainless Steel
- Used on 3/16" OD tubing
Speedway Stainless Steel 9/16 Inch Fitting Tube Nut, 3/16 Tubing
- These stainless steel hard line tubing nuts are commonly used in brake line systems
- 9/16-18 SAE
- Stainless Steel
- Used on 3/16" OD tubing
Used in conjunction with Inverted Flare Fittings, Pipe To Inverted Flare Fittings, and -AN to Inverted Flare Fittings.
Charts
Brake System Builder's Tip (Link)
Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
What's In The Kit
-
Speedway 3/16 Inch PVF Coated Steel Brake Line, 25 Ft. RollPart # 916325Qty x 1
-
Speedway Stainless Steel 9/16 Inch Fitting Tube Nut, 3/16 TubingPart # 910SS7006Qty x 1
-
Speedway Stainless Steel 1/2 Inch Fitting Tube Nut, 3/16 TubingPart # 910SS7004Qty x 1
-
Speedway Stainless Steel 3/8 Inch Fitting Tube Nut, 3/16 TubingPart # 910SS7001Qty x 8
