#9153194

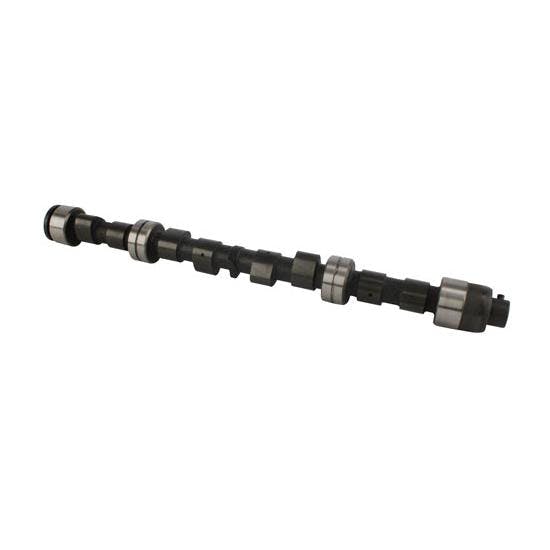

2.3 Ford Hydraulic Cam, 4000-7200 RPM
- Specifically designed for oval track racing
- Choose hydraulic or solid
- Use new followers such as our #915-19818 and drop in dual springs #915-19817
Out of Stock
This item is currently not available
Shop all Speedway Motors Camshafts
Product Summary
Hydraulic Flat Tappet Camshaft Type
- Specifically designed for oval track racing
- Choose hydraulic or solid
- Use new followers such as our #915-19818 and drop in dual springs #915-19817
- Lifters NOT included
- Best if used with performance-grade carb, intake and header
Comes as a Kit
View Kit Components
Key Specs
| Camshaft Type | Hydraulic Flat Tappet |
| RPM Range | 4000-7200 |
| Intake Duration (.050" Lift) | 252 |
| Exhaust Duration (.050" Lift) | 252 |
| Lobe Separation | 105 ° |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9153194 Details
Speedway Motors 9153194 Details
Speedway 2.3 Ford hydraulic camshafts are specifically designed for oval track racing. Camshafts must be used with oil additive (sold separately).
- Basic RPM Range: 4000-7200
- Duration @ .050: 252
- Lobe Angle: 105
- Gross Lift: .450"
- Lifters NOT included
Item Details
Best if used with better carb, intake and header.4000-7200 RPM
Charts

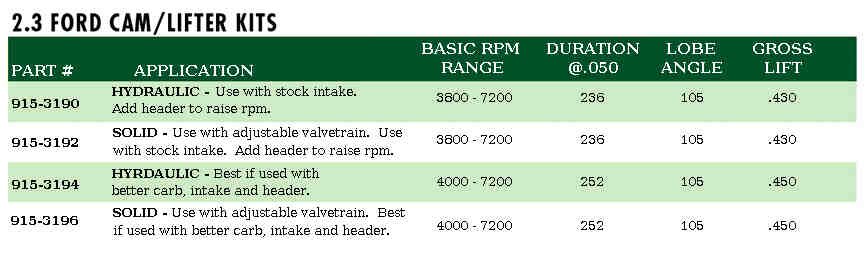

Cam Application Chart (GIF)

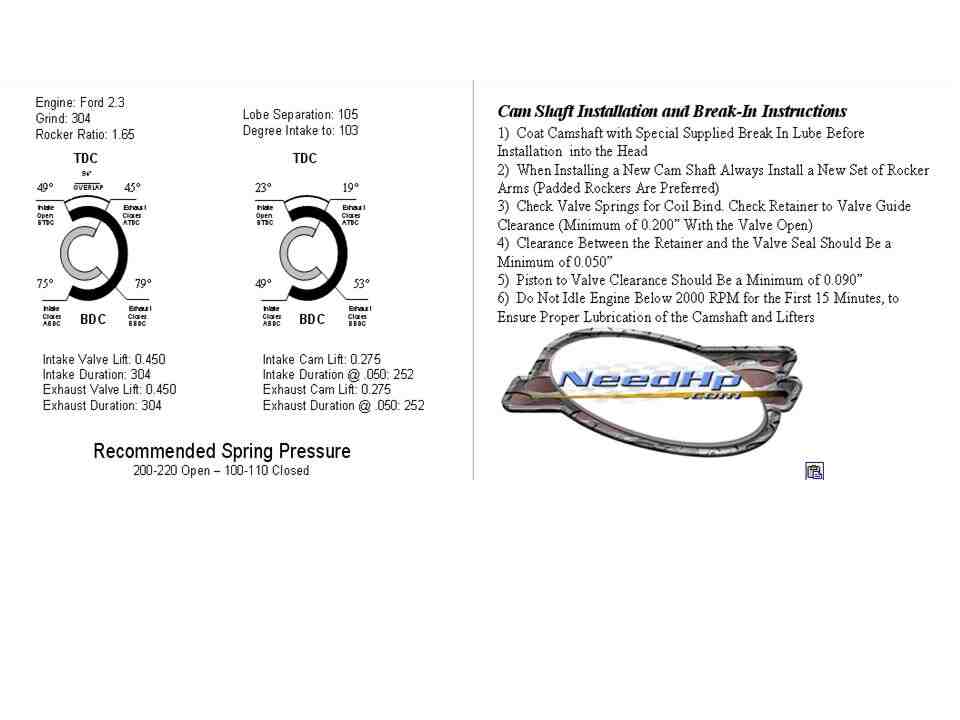

Cam Card (JPG)
Speedway Motors 9153194 Specifications
Speedway Motors 9153194 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9153194 |
| Brand | Speedway Motors |
| Camshaft Type | Hydraulic Flat Tappet |
| RPM Range | 4000-7200 |
| Intake Duration (.050" Lift) | 252 |
| Exhaust Duration (.050" Lift) | 252 |
| Lobe Separation | 105 ° |
Ratings & Reviews
5
2 Reviews
Customers highlight the product's quality, usability, and reliable performance. Noted features include a smoother operation at low end and the potential for better performance at higher speeds. It's recommended for its distinct profile/grind, despite similarities to other models. Importantly, customers suggest replacing valve springs when installing the product for optimal function. The product repeatedly surpasses customer expectations, distinguishing it from its competitors.
Ratings & Reviews
5
2 Reviews
Customers highlight the product's quality, usability, and reliable performance. Noted features include a smoother operation at low end and the potential for better performance at higher speeds. It's recommended for its distinct profile/grind, despite similarities to other models. Importantly, customers suggest replacing valve springs when installing the product for optimal function. The product repeatedly surpasses customer expectations, distinguishing it from its competitors.
5
2 reviews
5
2
4
0
3
0
2
0
1
0
Filter by Ratings
Nice cam
5.0
6 years ago
Ron
Pueblo, CO
Verified
Had previously purchased this same part number cam. It had a completely different profile/grind on the lobes, although is has the same part number on the rear end. Not sure which is the correct grind for this P/N, but it sure runs smoother at the low end. Hope to get it on the track next week to see if it runs better at WOT.
Would Recommend
I would buy this product again.
5.0
8 years ago
Hitman
Ft Worth Tx
Verified
Great product, make sure you replace valve springs when replacing cam. We found out the hard way
Would Recommend
Showing 2 of 2 reviews
