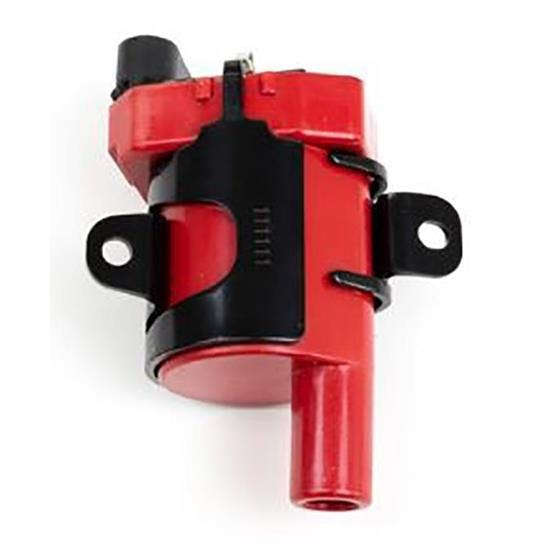

1999-07 GM LS Ignition Coil Set and Relocation Mount Bracket
1999-07 GM LS Ignition Coil Set and Relocation Mount Bracket
Speedway Motors

|

#9102697

1999-07 GM LS Ignition Coil Set and Relocation Mount Bracket

  • Delco D585 high-output replacement ignition coil
  • Features magnetic steel cores
  • Uses shock resistant high resistant epoxy designed for vibration at high RPMs
See More

$411.99

/kit

In Stock

$419.98

Save $7.99

Order soon, only 3 left in stock!


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

40,000 volts Maximum Voltage, 0.5 ohms Resistance

  • Delco D585 high-output replacement ignition coil
  • Features magnetic steel cores
  • Uses shock resistant high resistant epoxy designed for vibration at high RPMs
  • Makes use of billet aluminum relocation mounting brackets
  • 8 piece set

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #9102697
BrandSpeedway Motors
Maximum Voltage40,000 volts
Material TypePlastic
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 9102697 Details

Ignition Coils

Speedway Motors LSX ignition coils are the top coils on the market today, featuring magnetic steel cores specially designed to deliver up to 15% more spark than OEM. They use a high resistant epoxy material for added resistance to shock and vibration at high RPM. This is a high-output replacement of the Delco D585 ignition coil.

  • 0.500 Ohms Primary Resistance
  • 2,000 Ohms Secondary Resistance
  • 40,000 volts Maximum Voltage
  • 300 microseconds Spark Duration
  • 220 milliamperes Peak Current
  • 75:1 Turns Ratio
  • 2.7 millihenrys Inductance
  • Female Coil Wire Attachment
  • Red in color
  • 8 piece set

Fits most 1999-07 LS2/Truck engines



Bracket Kit

Billet Remote Coil Brackets (Mounts 8 Coils)
  • This will only fit D585 coils (see photo coil guide)
  • Made in Wichita, KS from aerospace grade USA billet aluminum
  • Natural finish aluminum as shown
  • Includes: 2 sets of brackets, bolts, and spacers (for mounting 8 coils)
  • These work great for turbo setups

Speedway Motors 9102697 Specifications

KEY SPECS
MFG. Part #9102697
BrandSpeedway Motors
Maximum Voltage40,000 volts
Material TypePlastic
GENERAL
Resistance0.5 ohms
Secondary Resistance2000 ohms
Inductance2.7 millihenrys
Peak Current220 milliamperes
Spark Duration300 microseconds
Mounting Bracket IncludedYes
Sold in QuantityKit
