$149.99
1975-1981 Camaro Steering Kit
1975-1981 Camaro Steering Kit

1975-1981 Camaro Steering Kit

Center Link Included, Idler Arm Included

2 Reviews | 1 Answered Question
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Limited Qty
Select your vehicle to verify fitment.
Select Vehicle
1975-1981 Camaro Steering Kit
1975-1981 Camaro Steering Kit
1975-1981 Camaro Steering Kit
X
1975-1981 Camaro Steering Kit
Zoomed In Image
Part # 9107893
$149.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • Includes replacement center drag links, inner/outer tie rods, tie rod sleeves and idler arm's
  • Will give your 1975-1981 Camaro an overall better handling and a positive feel while cruising the strip or on the race track
  • Lightweight versatile design for an easy installation
  • All components are machine forged to ensure a high quality finish and greater strength for the longevity of your project
  • Take on any road with confidence and gain greater cornering ability with your steering kit today

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Center Link Included:
Yes
Idler Arm Included:
Yes
Sold in Quantity:
Kit

Info

Speedway Motors brings you this 1975-81 Camaro Steering Kit with these hard to find replacement center drag links, inner/outer tie rods, tie rod sleeves and idler arm's that are a must when rebuilding your classic vehicle.  They will give your 1975-81 Camaro an overall better handling and a positive feel while cruising the strip or on the race track.

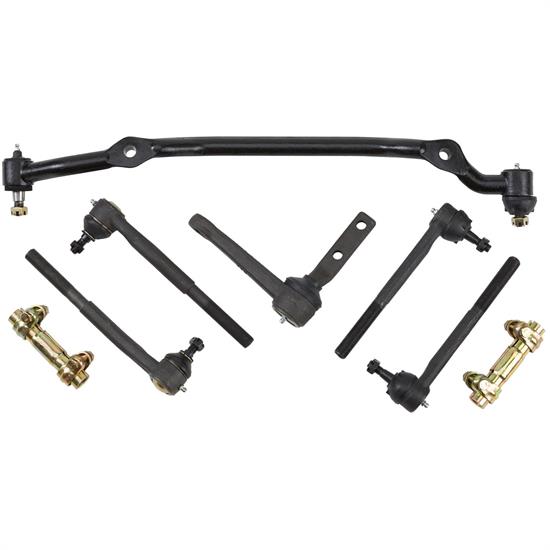

Kit Contains:

  • (1) Steering Center Link Drag Link
  • (2) Outer Tie Rods
  • (2) Inner Tie Rods
  • (2) Tie Rod Sleeves
  • (1) Idler Arm

Steering Center Link Drag Link

  • Center to Center: 24.50"
  • Centerline of Holes: 14.875"
  • Same as MOOG DS829

Outer Tie Rods

  • Overall Length: 9.00"
  • Thread Length: 3.00"
  • Thread Type: RH Male
  • Thread Pitch: 11/16"-18

Inner Tie Rods

  • Tie rod Style: Bent
  • Thread Type: LH Male
  • Thread Length: 2-3/4"
  • Thread Pitch: 11/16"-18
  • Center Hole to End of Shank: 9.40"

Tie Rod Sleeves

  • Overall Length: 4.75"
  • Thread Pitch: 11/16"
  • MOOG ES-2004S Replacement

Idler Arm

  • Center to Center: 6.00"
  • Centerline of Holes: 1.88"
  • MOOG K6186 Replacement

Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • 1970-81 GM F-Body X-Body Steering Center Link Drag Link
    Qty x 1
  • 1975-81 Camaro/Firebird Outer Tie Rod
    Qty x 2
  • Tie Rod Sleeve - 4.75 x 11/16"
    Qty x 2
  • 1970-81 Camaro/Firebird Right Inner Tie Rod, 11/16
    Qty x 1
  • 1970-81 Camaro/Firebird Left Inner Tie Rod, 11/16
    Qty x 1
  • 1970-81 Camaro/Firebird Idler Arm
    Qty x 1
