Part # 9100274

1966-67 Chevelle LS Swap Radiator Kit with Holley 302-3 Oil Pan

by

|

  • Direct replacement for many '64-and-up cars and trucks
  • All aluminum radiator features two rows of 1" tubes, all welded construction, and includes a built-in transmission cooler
  • LS hose adapter features one 1.25" end to match the water pump outlet, one 1.5" end to match the upper radiator inlet

$817.99

kit

In Stock

$860.68

Save $42.69

Order soon, only 2 left in stock!


Quantity

Select a vehicle to verify Fitment

Product Summary

Bel Air, Caprice, Chevelle, Impala, Malibu, Aluminum

  • Direct replacement for many '64-and-up cars and trucks
  • All aluminum radiator features two rows of 1" tubes, all welded construction, and includes a built-in transmission cooler
  • LS hose adapter features one 1.25" end to match the water pump outlet, one 1.5" end to match the upper radiator inlet
  • Oil pan is designed for LS engine retrofit installations in GM muscle/classic car and truck chassis requiring more oil pan to chassis clearance around the front half of the oil pan
  • Oil pan provides maximum clearance for vehicles where the steering linkage is behind the engine cross member

Comes as a Kit

Key Specs

MFG. Part #9100274
Radiator StyleSingle Pass
Radiator Flow DirectionCrossflow
Material TypeAluminum
FinishNatural

Need To Know

This Product Will Ship Free

Quick and Easy Returns

Details

Complete your next LS Swap into that 1966-67 Chevy Chevelle/Malibu or 1966-70 Impala with these installation kits featuring oil pan and radiator with hose adapter.

Kit Includes:

  • (1) Speedway 1966-70 Chevelle/Impala Aluminum Radiator
  • (1) LS Swap Radiator Hose Adapter w/ Steam Port, 1.5 Inch - 1.25 Inch
  • (1) Holley 302-3 LS Swap Retro-Fit Oil Pan w/302-15 Dipstick/Gasket Kit

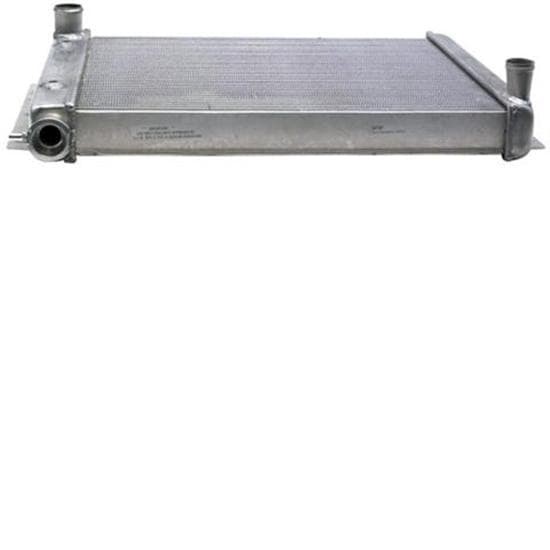

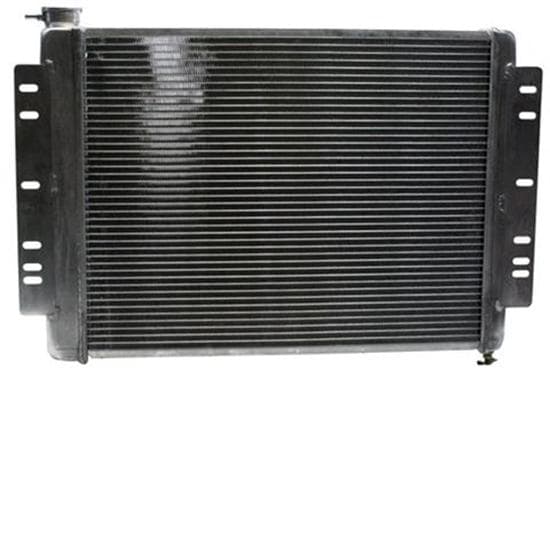

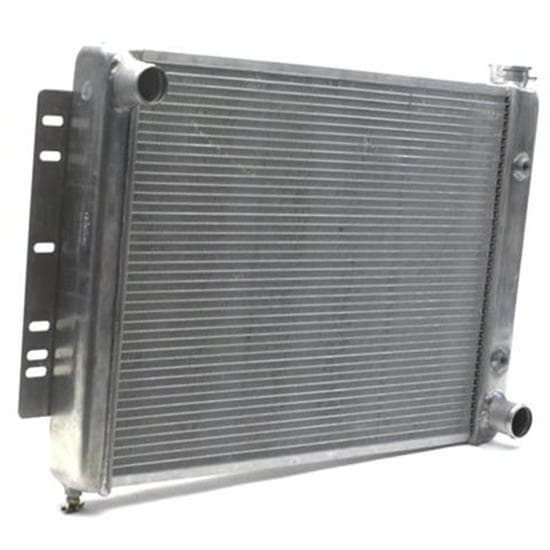

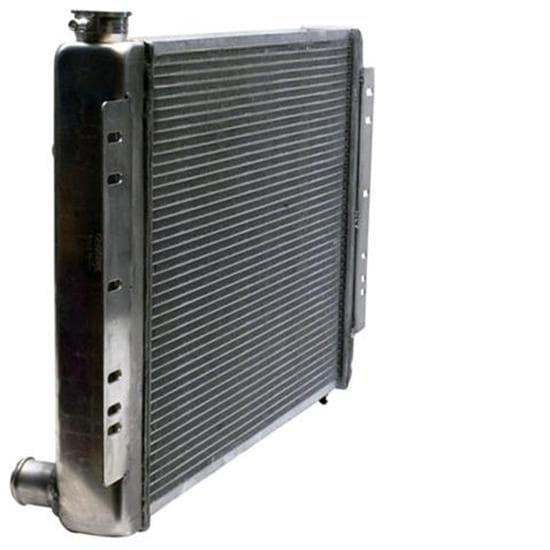

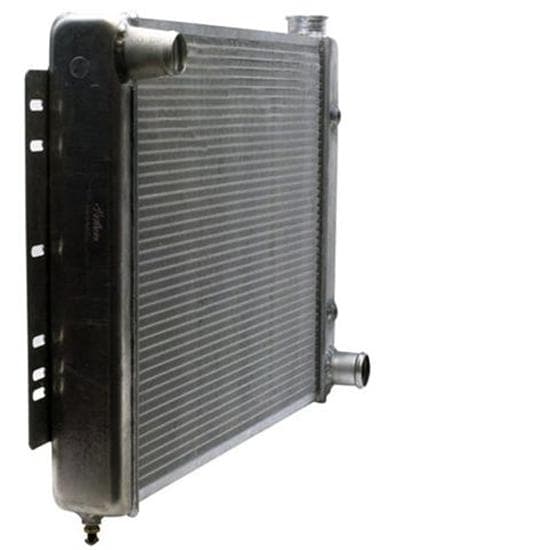

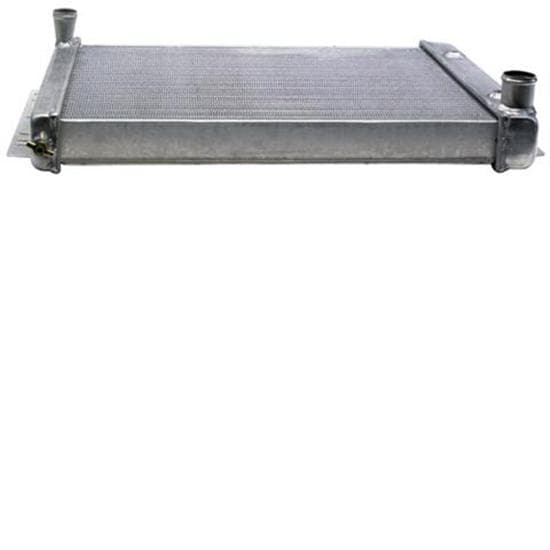

Speedway 1966-70 Chevelle/Impala Aluminum Radiator

  • Aluminum crossflow radiator
  • All welded construction and include a built-in transmission cooler
  • 1966-70 Impala
  • 1966-67 Chevelle/Malibu
  • 29" Wide, 18-1/2" Tall
  • Style C

NOTE: Applications for reference only - measure your existing radiator for proper dimensions. Measurements listed are overall which includes radiator tanks.

Shroud and fan assemblies available separately.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.



LS Swap Radiator Hose Adapter w/ Steam Port, 1.5 Inch - 1.25 Inch

Runner-Up for the 2020 SEMA Best New Street Rod/Custom Car Product Award!

If you've decided to add modern power to your ride using an LS series engine, this LS Steam Port Radiator Hose Adapter is the perfect way to protect your investment and ensure proper cooling system function.

We wanted to offer a solution for the budget-minded builder that also kept aesthetics in mind. Instead of an inline hose adapter with an NPT bung for you to plumb in your own fittings, which can look like junkyard parts hacked together and is susceptible to leaks, we created a unique LS Steam Vent Radiator Hose Adapter. This adapter makes quick work of several LS swap radiator hose issues with one simple piece. It features one 1.25" end to match the water pump outlet, one 1.5" end to match the upper radiator inlet, an integrated streamlined 1/4" 90° hose barb fitting for the steam line, and a black finish to blend in with radiator hoses.

  • 1.25" end - matches water pump outlet size
  • 1.50" end - matches upper radiator inlet size
  • Black finish blends in with radiator hoses

Unlike the older SBC or BBC, the LS engine family features a thermostat that is located in the water pump housing. While this design allows for temperature and flow to be regulated before the coolant enters your engine, having the thermostat at a low point means that any air in the cooling system can easily get trapped in your engine. Air bubbles in cooling passages disrupt coolant flow, create hot-spots, and can cause overheating issues, pre-ignition, and detonation. None of these are things that your new (or used) LS will stand up to for very long without damage. Fortunately, there are steam ports in the heads that allow this trapped air to flow away from critical cooling locations to a high point outside of the cylinder heads. Since these engines utilize a closed pressurized cooling system, the steam tubes must be connected back into it at some point. Stock radiators in vehicles produced with LS engines feature a port to connect the steam lines to, and a direct-fit LS swap radiator with steam port provision is likely available for your ride - at a high price tag. This piece allows you to spend less of your hard-earned cash on a cooling solution without sacrificing appearance under the hood.



Holley 302-3 LS Swap Retro-Fit Oil Pan w/302-15 Dipstick/Gasket Kit

Holley is proud to announce that they have taken their LS Retro-fit oil pans to the next level! The Holley 302-3 Oil Pan has more sump clearance, includes two 1/2" NPT oil return bosses, and can clear a 4.00” stroke crankshaft. Just like the 302-2, the new designed 302-3 will fit the 1955-87 GM Muscle Cars and Trucks that need a little more clearance in the front of the oil pan. However, the new design will also fit the Ford Fox body OEM K-member and was designed to clear the Fox Body rack and pinion too. It’s a win-win for more LS conversions.


Features:

  • Designed for LS engine retrofit installations in GM muscle/classic car and truck chassis requiring more oil pan to chassis clearance around the front half of the oil pan
  • Profile of the sump has been revised to provide extra chassis and steering rack clearance
  • Perfect for: 1964-72 A-body applications
  • NOTE – Oil pan #302-3 will clear a 4.00” stroke crankshaft.
  • Includes two ½-14” NPT oil return ports to provide a convenient oil return for turbochargers. (one port on each side)
  • Provides OEM fitment - OEM oil filter mounting, OEM oil cooler port provision, OEM engine NVH suppression, OEM flange gasket and sealing, proper structural rigidity and OEM bell-housing attachments
  • Traditional high-quality cast aluminum appearance with clean exterior styling
  • Provides maximum clearance for vehicles where the steering linkage is behind the engine cross member
  • Complete kit includes sump baffle, OE style pick-up tube, sump plug, oil filter stud, oil passage cover, drain plug, dipstick, gasket, etc.



Charts

Specifications

KEY SPECS
MFG. Part #9100274
BrandSpeedway Motors
Radiator StyleSingle Pass
Radiator Flow DirectionCrossflow
Material TypeAluminum
FinishNatural
GENERAL
Inlet LocationUpper driver side
Outlet LocationLower passenger side
Row Quantity2
Tube Size1.00"
Overall Width Range26.00" to 26.99"
Overall Width26.35"
Overall Height Range18.00" to 18.99"
Overall Height18.375"
Overall Thickness3.125"
Core Width Range22.00" to 22.99"
Core Width22.375"
Core Height Range17.00" to 17.99"
Core Height17.375"
Core Thickness2.25"
Cooling FanNot Included
Transmission CoolerYes
Shroud IncludedNo
Filler Neck Height1.13"
Inlet Size1.50
Radiator Cap IncludedNo
Sold in QuantityKit
