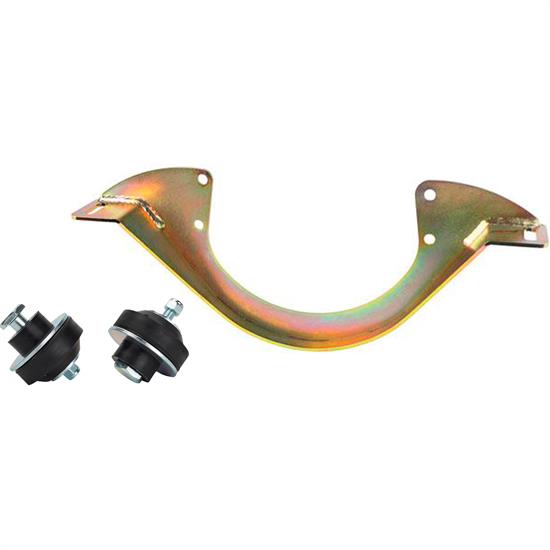

1965-94 Big Block Chevy 396-454 Bolt-Thru Cushion Motor Mount Kit
1965-94 Big Block Chevy 396-454 Bolt-Thru Cushion Motor Mount Kit

1965-94 Big Block Chevy 396-454 Bolt-Thru Cushion Motor Mount Kit

Chevy Big Block V8, Crossmember Motor Mount Type, Engine Swap Application Compatibility

0 Reviews | 0 Answered Questions
In Stock
Can Ship FREE
Select your vehicle to verify fitment.
Select Vehicle
1965-94 Big Block Chevy 396-454 Bolt-Thru Cushion Motor Mount Kit
1965-94 Big Block Chevy 396-454 Bolt-Thru Cushion Motor Mount Kit
1965-94 Big Block Chevy 396-454 Bolt-Thru Cushion Motor Mount Kit
1965-94 Big Block Chevy 396-454 Bolt-Thru Cushion Motor Mount Kit
1965-94 Big Block Chevy 396-454 Bolt-Thru Cushion Motor Mount Kit
1965-94 Big Block Chevy 396-454 Bolt-Thru Cushion Motor Mount Kit
1965-94 Big Block Chevy 396-454 Bolt-Thru Cushion Motor Mount Kit
X
1965-94 Big Block Chevy 396-454 Bolt-Thru Cushion Motor Mount Kit
1965-94 Big Block Chevy 396-454 Bolt-Thru Cushion Motor Mount Kit
1965-94 Big Block Chevy 396-454 Bolt-Thru Cushion Motor Mount Kit
1965-94 Big Block Chevy 396-454 Bolt-Thru Cushion Motor Mount Kit
1965-94 Big Block Chevy 396-454 Bolt-Thru Cushion Motor Mount Kit
Zoomed In Image
Part # 9108679
Save 13%
$64.99
$74.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • Mount your 1965-1994 Chevy 396-454 Big Block into almost any chassis
  • Heavy duty rubber cushion absorbs vibrations for a comfortable driving experience
  • Universal mount cushions - allow for easy setup
  • Complete with bolts, washers, and rubber cushions for both sides of the engine
  • Connect engine mounts to frame adapters

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Motor Mount Type:
Crossmember
Application Compatibility:
Engine Swap
Attachment Style:
Bolt-on
Mount Material:
Steel
Mount Finish:
Zinc Plated
Color:
Natural
Bushing Included:
Yes
Bushing Material:
Rubber
Bushing Color:
Black
Bushing Diameter:
2.945"
Hardware Included:
Yes
Sold in Quantity:
Kit

Info

Specially designed engine mount cradle to mount your 1965-1994 Chevy 396-454 Big Block into almost any chassis.  This professional installation kit comes complete with heavy-duty rubber cushion bushings to connect engine mounts to frame adapters.  Includes grade 5 mounting hardware.

Kit Includes:

  • (1)¬†Universal Bolt-Through Engine Mount Cushion Kit
  • (1) '65-'94 Big Block Chevy Engine Cradle Front Motor Mount



Universal Bolt-Through Engine Mount Cushion Kit

  • Heavy duty rubber cushion absorbs vibrations for a comfortable driving experience
  • Universal mount cushions - allow for easy setup
  • Complete with bolts, washers, and rubber cushions for both sides of the engine
  • Connects engine mounts to frame adapters
  • 3" OD large bushing and 1 5/8" OD small bushing
  • Large cone shaped rubber biscuit is 3"¬†O.D. and 1-1/8" thick. It is the main load carrying component in the mount
  • Small rubber biscuit is 1-5/8"¬†O.D. and is 7/8" thick. It is stepped to mount in a 1" diameter hole and acts as the backup isolator for the mount
  • Bolt is 3" long, has a 5/8" shank and 7/16" threads
  • Complete with bolts, washers, and rubber cushions - Does both sides



'65-'94 Big Block Chevy Engine Cradle Front Motor Mount

  • Overall Width:¬† 21-11/16"
  • Overall Height:¬† 8-3/16"
  • Center to center cushion mount hole is 20-3/16"
  • Mount hole slot is 1-7/8" long

Charts

Engine Mounting Illustration (GIF)

135-6852 Instructions (PDF)

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • 1965-1994 Big Block Chevy 396-454 Engine Mount
    Qty x 1
  • Universal Bolt-Through Engine Mount Cushion Kit
    Qty x 1
