1965-94 Big Block Chevy 396-454 Bolt-Thru Cushion Motor Mount Kit
- Mount your 1965-1994 Chevy 396-454 Big Block into almost any chassis
- Heavy duty rubber cushion absorbs vibrations for a comfortable driving experience
- Universal mount cushions - allow for easy setup
$83.99
/kit
In Stock
$84.98
Save $0.99
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Product Summary
Crossmember Motor Mount Type, Bolt-on Attachment Style
- Mount your 1965-1994 Chevy 396-454 Big Block into almost any chassis
- Heavy duty rubber cushion absorbs vibrations for a comfortable driving experience
- Universal mount cushions - allow for easy setup
- Complete with bolts, washers, and rubber cushions for both sides of the engine
- Connect engine mounts to frame adapters
Comes as a Kit
View Kit Components
Key Specs
| MFG. Part # | 9108679 |
| Brand | Speedway Motors |
| Attachment Style | Bolt-on |
| Mount Material | Steel |
| Bushing Material | Rubber |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9108679 Details
Speedway Motors 9108679 Details
Specially designed engine mount cradle to mount your 1965-1994 Chevy 396-454 Big Block into almost any chassis. This professional installation kit comes complete with heavy-duty rubber cushion bushings to connect engine mounts to frame adapters. Includes grade 5 mounting hardware.

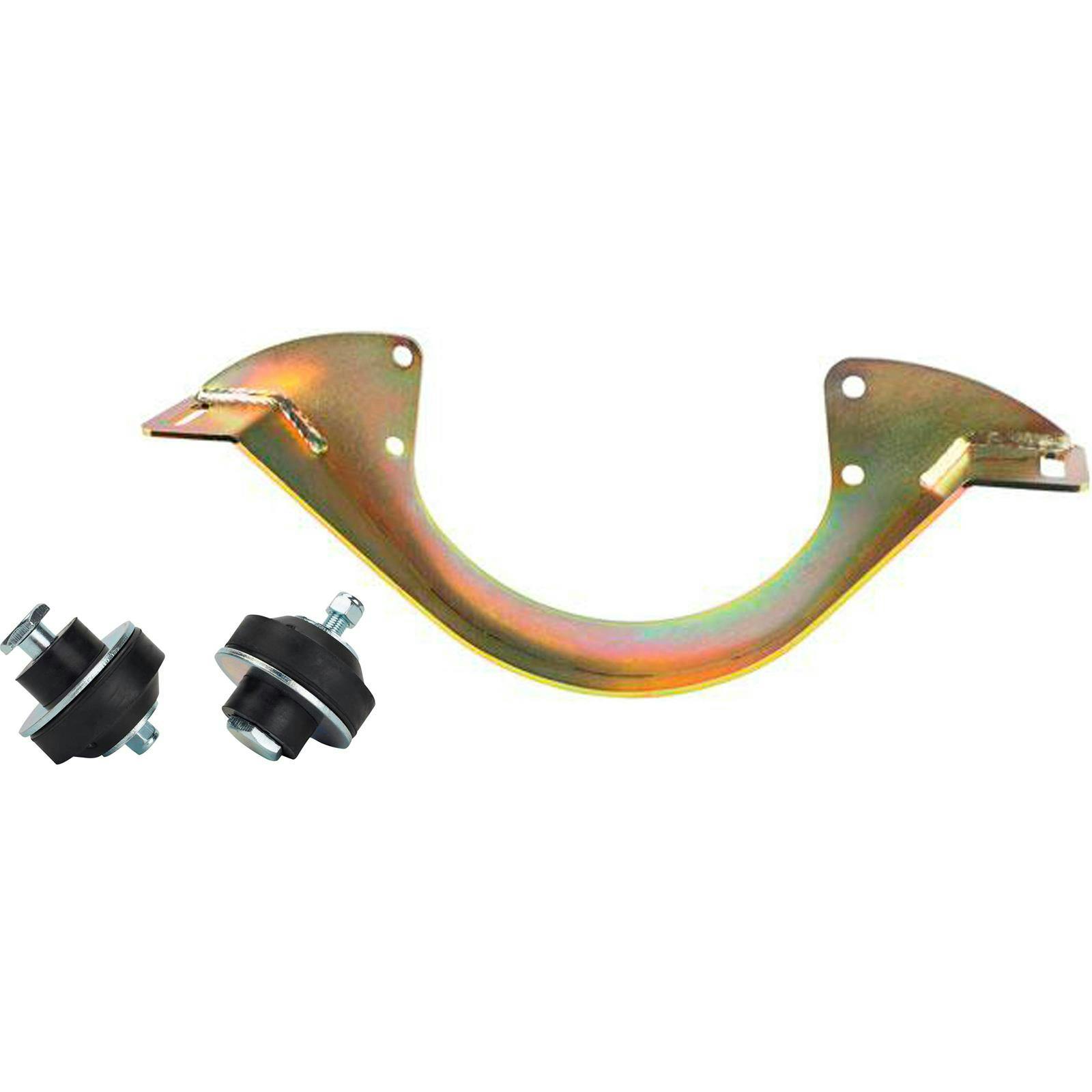

Kit Includes:
- (1) Universal Bolt-Through Engine Mount Cushion Kit
- (1) '65-'94 Big Block Chevy Engine Cradle Front Motor Mount
Universal Bolt-Through Engine Mount Cushion Kit
- Heavy duty rubber cushion absorbs vibrations for a comfortable driving experience
- Universal mount cushions - allow for easy setup
- Complete with bolts, washers, and rubber cushions for both sides of the engine
- Connects engine mounts to frame adapters
- 3" OD large bushing and 1 5/8" OD small bushing
- Large cone shaped rubber biscuit is 3" O.D. and 1-1/8" thick. It is the main load carrying component in the mount
- Small rubber biscuit is 1-5/8" O.D. and is 7/8" thick. It is stepped to mount in a 1" diameter hole and acts as the backup isolator for the mount
- Bolt is 3" long, has a 5/8" shank and 7/16" threads
- Complete with bolts, washers, and rubber cushions - Does both sides

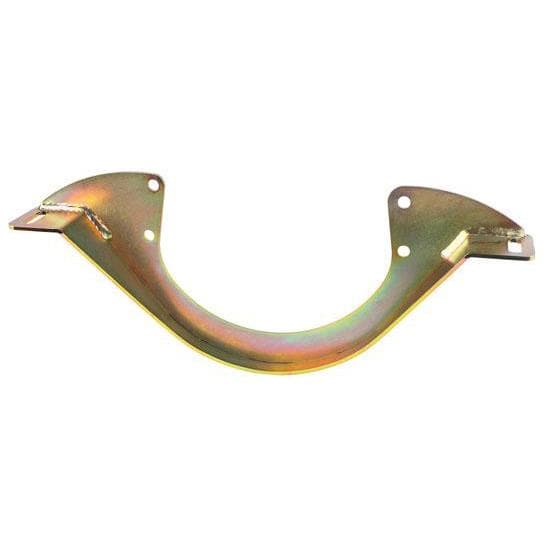

'65-'94 Big Block Chevy Engine Cradle Front Motor Mount
- Overall Width: 21-11/16"
- Overall Height: 8-3/16"
- Center to center cushion mount hole is 20-3/16"
- Mount hole slot is 1-7/8" long
Charts

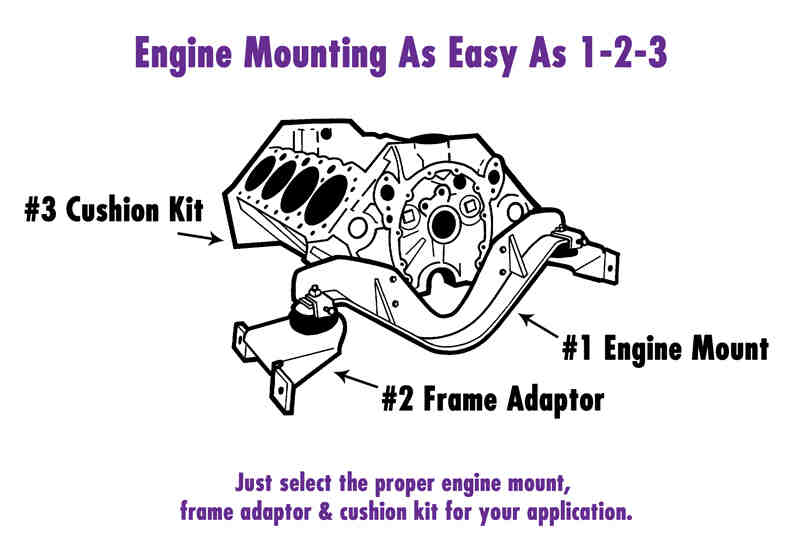

Engine Mounting Illustration (GIF)
135-6852 Instructions (PDF)
Speedway Motors 9108679 Specifications
Speedway Motors 9108679 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9108679 |
| Brand | Speedway Motors |
| Attachment Style | Bolt-on |
| Mount Material | Steel |
| Bushing Material | Rubber |
| GENERAL | |
| Motor Mount Type | Crossmember |
| Application Compatibility | Engine Swap |
| Mount Finish | Painted |
| Color | Black |
| Bushing Included | Yes |
| Bushing Color | Black |
| Bushing Diameter | 2.945" |
| Hardware Included | Yes |
| Min. Mounting Distance | 18" |
| Mounting Plate Length | 5.25" |
| Mounting Plate Width | 4" |
| Material Thickness | 0.19" |
| Hole Diameter | 0.56" |
| Sold in Quantity | Kit |
Ratings & Reviews
4.5
2 Reviews
Customers appreciate the quality and robust construction of our mount. They consider it a well-made product, highlighting its practicality. However, a suggestion for improvement is to clarify the need for modifications, such as the removal of the stock fuel pump, in the product description. Overall, its superior features and performance appear to leave customers satisfied, favoring it over competitors.
Ratings & Reviews
4.5
2 Reviews
Customers appreciate the quality and robust construction of our mount. They consider it a well-made product, highlighting its practicality. However, a suggestion for improvement is to clarify the need for modifications, such as the removal of the stock fuel pump, in the product description. Overall, its superior features and performance appear to leave customers satisfied, favoring it over competitors.
4.5
2 reviews
5
1
4
1
3
0
2
0
1
0
Filter by Ratings
I'm very pleased with the mount!
5.0
2 months ago
Justin
Illinois
Verified
It's a quality, well built part
Would Recommend
Well made product but chose to return.
4.0
3 years ago
Rusty67
Southern Indiana
Verified
Need to state the stock fuel pump has to be taken off and a block off plate used, in the description . It was stated in the installation instructions that came with part.
Would Recommend
Showing 2 of 2 reviews
Fitment
Fitment
1965 Chevy Bel Air
396 Chevy Big Block V8
1966-1969 Chevy Bel Air
396 Chevy Big Block V8
427 Chevy Big Block V8
1970-1972 Chevy Bel Air
402 Chevy Big Block V8
Chevy Big Block V8 Mark IV 454 LS5
1973-1975 Chevy Bel Air
Chevy Big Block V8 Mark IV 454 LS5
1965 Chevy Biscayne
396 Chevy Big Block V8
1966-1969 Chevy Biscayne
396 Chevy Big Block V8
427 Chevy Big Block V8
1970-1972 Chevy Biscayne
402 Chevy Big Block V8
Chevy Big Block V8 Mark IV 454 LS5
1969 Chevy Brookwood
396 Chevy Big Block V8
427 Chevy Big Block V8
1970-1972 Chevy Brookwood
402 Chevy Big Block V8
Chevy Big Block V8 Mark IV 454 LS5
1969 Chevy C10
Chevy Big Block V8 Mark IV 396 L35
1970-1972 Chevy C10
402 Chevy Big Block V8
1973-1979 Chevy C10
Chevy Big Block V8 Mark IV 454 LS5
1968-1969 Chevy C10 Suburban
Chevy Big Block V8 Mark IV 396 L35
1970-1972 Chevy C10 Suburban
402 Chevy Big Block V8
1973-1979 Chevy C10 Suburban
Chevy Big Block V8 Mark IV 454 LS5
1988 Chevy C15
Chevy Big Block V8 Gen 5 454 L19
1990 Chevy C1500
Chevy Big Block V8 Mark IV 454 LS5
1991 Chevy C1500
Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Mark IV 454 LS5
1992-1993 Chevy C1500
Chevy Big Block V8 Gen 5 454 L19
1968-1969 Chevy C20
Chevy Big Block V8 Mark IV 396 L35
1970-1972 Chevy C20
402 Chevy Big Block V8
1973-1986 Chevy C20
Chevy Big Block V8 Mark IV 454 LS5
1987 Chevy C20
454 Chevy Big Block V8
1968-1969 Chevy C20 Suburban
Chevy Big Block V8 Mark IV 396 L35
1970-1972 Chevy C20 Suburban
402 Chevy Big Block V8
1973-1986 Chevy C20 Suburban
Chevy Big Block V8 Mark IV 454 LS5
1991 Chevy C2500
454 Chevy Big Block V8
Chevy Big Block V8 Gen 5 454 L19
1992-1997 Chevy C2500
Chevy Big Block V8 Gen 5 454 L19
1992-1997 Chevy C2500 Suburban
Chevy Big Block V8 Gen 5 454 L19
1968-1969 Chevy C30
Chevy Big Block V8 Mark IV 396 L35
1970-1972 Chevy C30
402 Chevy Big Block V8
1973-1986 Chevy C30
Chevy Big Block V8 Mark IV 454 LS5
1988-1990 Chevy C3500
454 Chevy Big Block V8
1991 Chevy C3500
454 Chevy Big Block V8
Chevy Big Block V8 Gen 5 454 L19
1992-1997 Chevy C3500
Chevy Big Block V8 Gen 5 454 L19
1967 Chevy Camaro
Chevy Big Block V8 Mark IV 396 L35
Chevy Big Block V8 Mark IV 396 L78
1968-1969 Chevy Camaro
396 Chevy Big Block V8
427 Chevy Big Block V8
Chevy Big Block V8 Mark IV 396 L35
Chevy Big Block V8 Mark IV 396 L78
1970-1972 Chevy Camaro
402 Chevy Big Block V8
1966-1969 Chevy Caprice
427 Chevy Big Block V8
Chevy Big Block V8 Mark IV 396 L35
1970-1972 Chevy Caprice
402 Chevy Big Block V8
Chevy Big Block V8 Mark IV 454 LS5
1973-1976 Chevy Caprice
Chevy Big Block V8 Mark IV 454 LS5
1965-1969 Chevy Chevelle
396 Chevy Big Block V8
1970-1972 Chevy Chevelle
402 Chevy Big Block V8
Chevy Big Block V8 Mark IV 454 LS5
1973 Chevy Chevelle
Chevy Big Block V8 Mark IV 454 LS5
1968 Chevy Chevy II
396 Chevy Big Block V8
1965 Chevy Corvette
Chevy Big Block V8 Mark IV 396 L78
1966-1969 Chevy Corvette
427 Chevy Big Block V8
1970-1974 Chevy Corvette
Chevy Big Block V8 Mark IV 454 LS5
1966-1969 Chevy El Camino
Chevy Big Block V8 Mark IV 396 L78
1970-1972 Chevy El Camino
402 Chevy Big Block V8
Chevy Big Block V8 Mark IV 454 LS5
1973-1975 Chevy El Camino
Chevy Big Block V8 Mark IV 454 LS5
1969 Chevy Estate
396 Chevy Big Block V8
427 Chevy Big Block V8
1970 Chevy Estate
402 Chevy Big Block V8
Chevy Big Block V8 Mark IV 454 LS5
1996-2000 Chevy Express 2500
Chevy Big Block V8 Gen 5 454 L19
1996-2000 Chevy Express 3500
Chevy Big Block V8 Gen 5 454 L19
1988-1990 Chevy G30
454 Chevy Big Block V8
1991 Chevy G30
454 Chevy Big Block V8
Chevy Big Block V8 Gen 5 454 L19
1992-1996 Chevy G30
Chevy Big Block V8 Gen 5 454 L19
1965 Chevy Impala
Chevy Big Block V8 Mark IV 396 L35
1966-1969 Chevy Impala
427 Chevy Big Block V8
Chevy Big Block V8 Mark IV 396 L35
1970-1972 Chevy Impala
402 Chevy Big Block V8
Chevy Big Block V8 Mark IV 454 LS5
1973-1976 Chevy Impala
Chevy Big Block V8 Mark IV 454 LS5
1969 Chevy K10
Chevy Big Block V8 Mark IV 396 L35
1970-1972 Chevy K10
402 Chevy Big Block V8
1973-1974 Chevy K10
Chevy Big Block V8 Mark IV 454 LS5
1968-1969 Chevy K10 Suburban
Chevy Big Block V8 Mark IV 396 L35
1970-1972 Chevy K10 Suburban
402 Chevy Big Block V8
1973-1974 Chevy K10 Suburban
Chevy Big Block V8 Mark IV 454 LS5
1968-1969 Chevy K20
Chevy Big Block V8 Mark IV 396 L35
1970-1972 Chevy K20
402 Chevy Big Block V8
1973-1974 Chevy K20
Chevy Big Block V8 Mark IV 454 LS5
1968-1969 Chevy K20 Suburban
Chevy Big Block V8 Mark IV 396 L35
1970-1972 Chevy K20 Suburban
402 Chevy Big Block V8
1973-1974 Chevy K20 Suburban
Chevy Big Block V8 Mark IV 454 LS5
1985 Chevy K20 Suburban
Chevy Big Block V8 Mark IV 454 LS5
1991 Chevy K2500
454 Chevy Big Block V8
Chevy Big Block V8 Gen 5 454 L19
1992-1997 Chevy K2500
Chevy Big Block V8 Gen 5 454 L19
1992-1997 Chevy K2500 Suburban
Chevy Big Block V8 Gen 5 454 L19
1968-1969 Chevy K30
Chevy Big Block V8 Mark IV 396 L35
1970-1972 Chevy K30
402 Chevy Big Block V8
1977-1986 Chevy K30
Chevy Big Block V8 Mark IV 454 LS5
1988-1990 Chevy K3500
454 Chevy Big Block V8
1991 Chevy K3500
454 Chevy Big Block V8
Chevy Big Block V8 Gen 5 454 L19
1992-1997 Chevy K3500
Chevy Big Block V8 Gen 5 454 L19
1969 Chevy Kingswood
396 Chevy Big Block V8
427 Chevy Big Block V8
1970-1972 Chevy Kingswood
402 Chevy Big Block V8
Chevy Big Block V8 Mark IV 454 LS5
1973-1975 Chevy Laguna
Chevy Big Block V8 Mark IV 454 LS5
1965-1967 Chevy Malibu
Chevy Big Block V8 Mark IV 396 L78
1973-1975 Chevy Malibu
Chevy Big Block V8 Mark IV 454 LS5
1970-1972 Chevy Monte Carlo
402 Chevy Big Block V8
Chevy Big Block V8 Mark IV 454 LS5
1973-1975 Chevy Monte Carlo
Chevy Big Block V8 Mark IV 454 LS5
1969 Chevy Nova
Chevy Big Block V8 Mark IV 396 L78
1970 Chevy Nova
402 Chevy Big Block V8
1975-1990 Chevy P30
Chevy Big Block V8 Mark IV 454 LS5
1991 Chevy P30
Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Mark IV 454 LS5
1992-1997 Chevy P30
Chevy Big Block V8 Gen 5 454 L19
1972 Chevy P30 Van
402 Chevy Big Block V8
1973-1974 Chevy P30 Van
Chevy Big Block V8 Mark IV 454 LS5
1987-1988 Chevy R20
Chevy Big Block V8 Mark IV 454 LS5
1987-1988 Chevy R20 Suburban
Chevy Big Block V8 Mark IV 454 LS5
1989 Chevy R2500
454 Chevy Big Block V8
1989-1990 Chevy R2500 Suburban
454 Chevy Big Block V8
1991 Chevy R2500 Suburban
454 Chevy Big Block V8
Chevy Big Block V8 Gen 5 454 L19
1987-1988 Chevy R30
Chevy Big Block V8 Mark IV 454 LS5
1989-1990 Chevy R3500
454 Chevy Big Block V8
1991 Chevy R3500
454 Chevy Big Block V8
Chevy Big Block V8 Gen 5 454 L19
1969 Chevy Townsman
396 Chevy Big Block V8
427 Chevy Big Block V8
1970-1972 Chevy Townsman
402 Chevy Big Block V8
Chevy Big Block V8 Mark IV 454 LS5
1987-1988 Chevy V20 Suburban
Chevy Big Block V8 Mark IV 454 LS5
1990 Chevy V2500 Suburban
454 Chevy Big Block V8
1987-1988 Chevy V30
Chevy Big Block V8 Mark IV 454 LS5
1989-1990 Chevy V3500
454 Chevy Big Block V8
1991 Chevy V3500
454 Chevy Big Block V8
Chevy Big Block V8 Gen 5 454 L19
1975-1978 GMC C15
Chevy Big Block V8 Mark IV 454 LS5
1975-1978 GMC C15 Suburban
Chevy Big Block V8 Mark IV 454 LS5
1973-1974 GMC C15/C1500 Pickup
Chevy Big Block V8 Mark IV 454 LS5
1973-1974 GMC C15/C1500 Suburban
Chevy Big Block V8 Mark IV 454 LS5
1979 GMC C1500
Chevy Big Block V8 Mark IV 454 LS5
1979 GMC C1500 Suburban
Chevy Big Block V8 Mark IV 454 LS5
1975-1978 GMC C25
Chevy Big Block V8 Mark IV 454 LS5
1975-1978 GMC C25 Suburban
Chevy Big Block V8 Mark IV 454 LS5
1967-1970 GMC C25/C2500 Pickup
396 Chevy Big Block V8
1971-1972 GMC C25/C2500 Pickup
402 Chevy Big Block V8
1973-1974 GMC C25/C2500 Pickup
Chevy Big Block V8 Mark IV 454 LS5
1967-1970 GMC C25/C2500 Suburban
396 Chevy Big Block V8
1971-1972 GMC C25/C2500 Suburban
402 Chevy Big Block V8
1973-1974 GMC C25/C2500 Suburban
Chevy Big Block V8 Mark IV 454 LS5
1979-1986 GMC C2500
454 Chevy Big Block V8
1988-1990 GMC C2500
454 Chevy Big Block V8
1991 GMC C2500
454 Chevy Big Block V8
Chevy Big Block V8 Gen 5 454 L19
1992-2000 GMC C2500
Chevy Big Block V8 Gen 5 454 L19
1979-1986 GMC C2500 Suburban
454 Chevy Big Block V8
1992-1999 GMC C2500 Suburban
Chevy Big Block V8 Gen 5 454 L19
1975-1978 GMC C35
454 Chevy Big Block V8
1967-1970 GMC C35/C3500 Pickup
396 Chevy Big Block V8
1971-1972 GMC C35/C3500 Pickup
402 Chevy Big Block V8
1979-1986 GMC C3500
454 Chevy Big Block V8
1988-1990 GMC C3500
454 Chevy Big Block V8
1991 GMC C3500
454 Chevy Big Block V8
Chevy Big Block V8 Gen 5 454 L19
1992-2000 GMC C3500
Chevy Big Block V8 Gen 5 454 L19
1967-1970 GMC K25/K2500 Pickup
396 Chevy Big Block V8
1971-1972 GMC K25/K2500 Pickup
402 Chevy Big Block V8
1967-1970 GMC K25/K2500 Suburban
396 Chevy Big Block V8
1971-1972 GMC K25/K2500 Suburban
402 Chevy Big Block V8
1994-1999 GMC K2500 Suburban
Chevy Big Block V8 Gen 5 454 L19
1977-1978 GMC K35
454 Chevy Big Block V8
1967-1970 GMC K35/K3500 Pickup
396 Chevy Big Block V8
1971-1972 GMC K35/K3500 Pickup
402 Chevy Big Block V8
1979-1986 GMC K3500
454 Chevy Big Block V8
1988-1990 GMC K3500
454 Chevy Big Block V8
1991 GMC K3500
454 Chevy Big Block V8
Chevy Big Block V8 Gen 5 454 L19
1992-2000 GMC K3500
Chevy Big Block V8 Gen 5 454 L19
1987-1989 GMC R2500
454 Chevy Big Block V8
1987-1990 GMC R2500 Suburban
454 Chevy Big Block V8
1991 GMC R2500 Suburban
454 Chevy Big Block V8
Chevy Big Block V8 Gen 5 454 L19
1987-1990 GMC R3500
454 Chevy Big Block V8
1991 GMC R3500
454 Chevy Big Block V8
Chevy Big Block V8 Gen 5 454 L19
1996-2000 GMC Savana 2500
Chevy Big Block V8 Gen 5 454 L19
1996-2000 GMC Savana 3500
Chevy Big Block V8 Gen 5 454 L19
1971-1972 GMC Sprint
402 Chevy Big Block V8
Chevy Big Block V8 Mark IV 454 LS5
1973-1977 GMC Sprint
454 Chevy Big Block V8
1967 GMC Suburban
396 Chevy Big Block V8
402 Chevy Big Block V8
