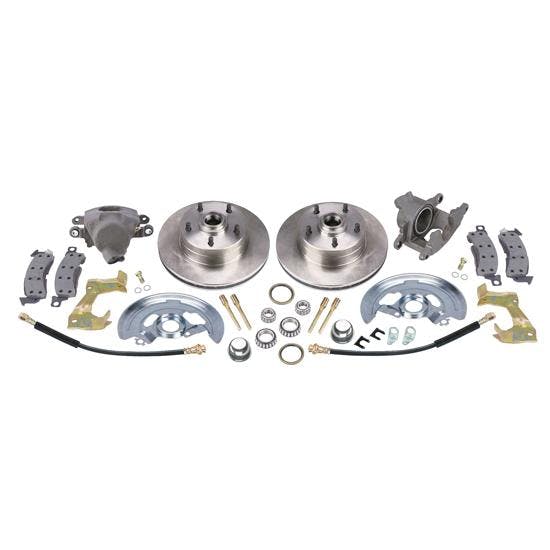

1964-1972 A-Body Front And Rear Disc Brake Conversion Kit

Disc brakes provide a significant improvement in braking performance versus the drum brakes your car came with. This complete front and rear disc brake conversion kit is perfect for your 1964-72 GM A-Body and uses our new replacement stock height disc brake spindles.

The front kit includes 11" diameter vented brake rotors with 5 on 4-3/4" wheel bolt pattern, '69-'77 GM style calipers (7/16"-20 inlets), caliper brackets, brake pads, backing plates, rubber brake lines, and all necessary bearings, seals and hardware for an easy, complete installation onto factory disc brake spindles.

The rear kit includes two bolt-on caliper brackets, two 11-1/4" vented rotors, two GM emergency brake style calipers, brake pads, and hardware.

This kit will fit 10 & 12 Bolt (non-staggered shock) rear ends from Chevelles.

The housing flange must have:

• 3-1/8" center-to-center distance for the top two bolt holes
• 2-11/16" center-to-center distance for the bottom two bolt holes
• 2-7/16" distance from the center of the top bolt to the center of the bottom bolt
• Axle Flange Identification Chart (GIF)

Additional Information:

• 910-31958 Speedway Deluxe 1967-74 GM Car Front Disc Brake Kit
  • Caliper brackets
  • Backing plates/dust shields
  • Outer wheel bearing cones
  • Inner wheel bearings cones
  • 11" brake rotors, 5 on 4-3/4"
  • RH/LH Calipers
  • Brake pads
  • Spindle nut kit
  • Seals and hardware
• 910-31924 GM 10 and 12 Bolt Bolt-On Rear Disc Brake Kit w/ E-Brake
  • RH/LH e-brake calipers
  • 11-1/4" rear brake rotors
  • Bolt-on caliper brackets
  • Caliper bolt kit
  • Rotors have both 5 on 4-1/2" and 5 on 4-3/4" bolt circles
  • Fits axle with a maximum flange diameter of 6-1/4" O.D.
  • 2.780" rotor center hole
  • Does not fit all 10 and 12 bolt axles - check Applications for details
  • Requires 15" and larger wheels as 14" and smaller wheels will not clear application.
• 910-34900 1964-74 GM Car OEM Style Disc Brake Spindles
  • Stock height replacement spindles
• 617-8568 Rubber Brake Line Hose Set for 7/16"-20 Calipers
  • For 7/16"-20 calipers
  • Comes with banjo bolts
• 617-3513 7/16 Inch Crush Washers 5/Pk
  • Aluminum

For more details and installation photos, see this article in Super Chevy magazine.

Kit Includes:

(1) LH Rear Caliper

(1) RH Rear Caliper

(2) 11-1/4" Rear Rotor

(1) Pair, Rear Caliper Brackets

(1) Caliper Bolt Kit

(2) Seals

(1) Pair, Front Caliper Brackets

(1) Pair, Backing Plates

(2) Outer Wheel Bearing

(2) Inner Wheel Bearing

(2) Front Brake Rotors

(1) LH Front caliper

(1) RH Front Caliper

(1) Brake Pad Set

(1) Spindle Nut Kit

(1) Spindle Hardware Kit

(1) Front Disc Brake Hardware Kit

(1) Pair, Disc Brake Spindles

(1) 7/16" Brake Line Hose Set

(1) Pack of 7/16 Inch Crush Washers

The caliper piston pin needs to be aligned with the notch in the pad to avoid fitment issues.
