#91606057
1957-86 SBC Intake Manifold Kit w/ Gaskets & Air Cleaner, Plain
$236.76
kit
On Backorder
$275.42
Save $38.66
This part is Backordered. We estimate this item will ship on or before June 26th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
262, 265, 267, 283, 305, 383, 400, Aluminum, Natural
Comes as a Kit
View Kit Components
See more details
Key Specs
| MFG. Part # | 916-06057 |
| Brand | Speedway Motors |
| Intake Manifold Type | Dual Plane |
| RPM Range | 1,500-6,500 |
| Material Type | Aluminum |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 916-06057 Details
Speedway Motors 916-06057 Details
If you're building a high-performance Small Block Chevy on a budget, then this is the intake manifold kit for you! The Speedway Hi-Rise aluminum intake is a dual plane, 180° street manifold designed to be used with Holley, Carter AFB or Edelbrock square flange carbs. Fits 1957-86 S/B Chevy engine applications. This kit comes complete with the intake manifold, manifold gaskets, carburetor gasket, manifold bolts/washers, carburetor studs, and distributor clamp. Top it all off with the included chrome deep dish air cleaner and air cleaner gasket.
Kit Features:
- Hi-Rise Intake Manifold
- Power range is 1500-6500 RPM
- Larger-than-stock plenum and runners complement other upgrades
- Supports larger engines & enhances RPM potential
- Power comparable to single plane manifolds yet retains throttle response/driveability of a dual-plane
- Dual distributor hold-downs
- Accepts HEI distributor
- Natural aluminum finish
- Extra Thick Valve Cover Gasket part # 550179 is recommended for added valve cover clearance with this intakeIntake Manifold Gaskets for 265-400 SBC
-
- No end seals - use silicone gasket maker
- Heat crossover port is blocked
- Compare to Fel-Pro 1204
- 1.23" x 1.99"
- Carburetor Stud Kit
- Easy installation/removal of carb plates
- Includes zinc plated steel studs, nuts, and washers

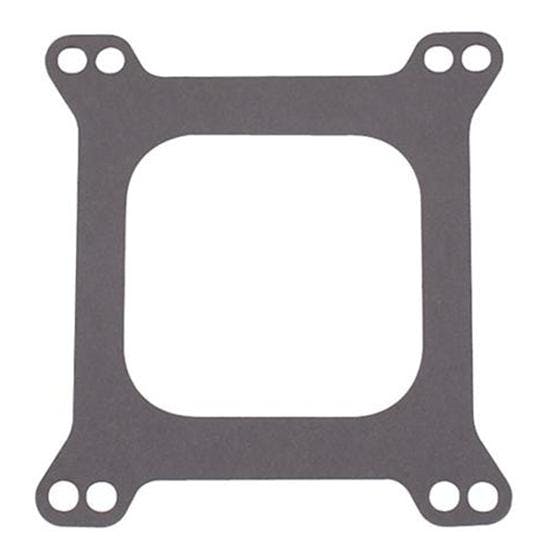

- Open Base Carburetor Gasket
- A quality paper gasket for mounting your 4150-style 4-barrel carburetor
- Intake Manifold Bolt and Washer Set
- Designed for Chevrolet 265-400 small block engines
- 3/8 inch-16 by 1-inch bolts
- Kit includes 12 bolts and washers
- Manufactured from high-quality steel
- Bolts feature hex heads
- Distributor Hold-Down
- Chrome
- OEM-style distributor clamp with bolt
- Fits 1963-Up Chevy

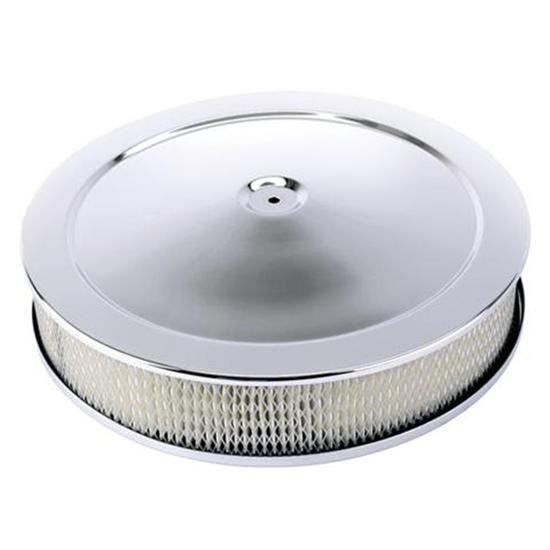

- Chrome Deep Dish Air Cleaner
- Chrome plated steel
- 14" diameter and 3" tall filter element
- Fits 4 barrel carbs with 5-1/8" neck
- Includes stud and wing nut
- Triple process plating for brightest finish and long life
- Non-restricting, flame proof filter
- Performance designed for increased breathing
- Super Seal® Air Cleaner Base Gasket
- Fits standard 5-18" air horn
- Reuasble neoprene rubber gasket
- Stainless steel ring embedded
Speedway Motors 916-06057 Specifications
Speedway Motors 916-06057 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 916-06057 |
| Brand | Speedway Motors |
| Intake Manifold Type | Dual Plane |
| RPM Range | 1,500-6,500 |
| Material Type | Aluminum |
| GENERAL | |
| Speedway Motors Catalog Part # | 916-06057 |
| Fuel System Type | Carbureted |
| Carburetor Quantity | One |
| Carburetor Flange Type | 4-Barrel Square Bore |
| Finish | Natural |
| Intake Section Included | Complete |
| Hardware Included | Yes |
| Gaskets Included | Yes |
| Fastener Material | Steel |
| Fastener Finish | Zinc Plated |
| Overall Height | 5" |
| Bolt Hole Pattern | 5.160" x 5.625" |
| Sold in Quantity | Kit |
