#91034925

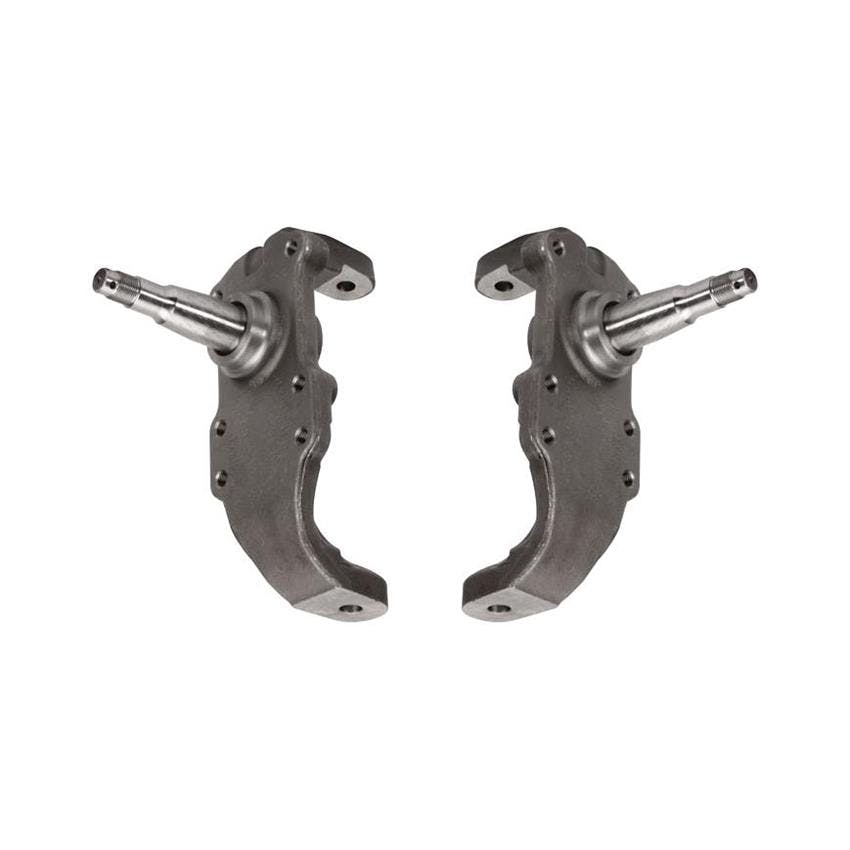

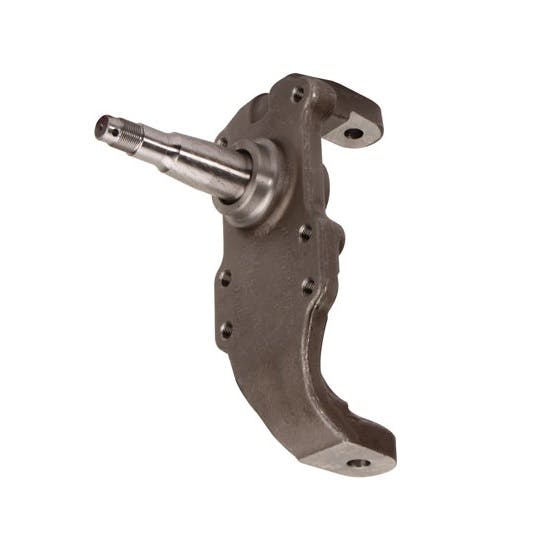

1955-57 Chevy 2" Drop Spindles, Aftermarket Disc Brake Conversion
- Ideal for use with Wilwood or other aftermarket brake kits applicable to Heidt's Tri-5 drop spindle application
- 2" drop design to lower the front of you car and achieve the stance you are after
- Cannot be used with stock drums or brake conversion for stock type spindle
$298.99
/pair
In Stock
Garage Sale alternatives: from $253.99
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
55-57 Chevy, Left and Right Position, 10 degree Angle
- Ideal for use with Wilwood or other aftermarket brake kits applicable to Heidt's Tri-5 drop spindle application
- 2" drop design to lower the front of you car and achieve the stance you are after
- Cannot be used with stock drums or brake conversion for stock type spindle
- Ball joints mount through the top, on both top & bottom ball joint mount bosses
- Sold in pairs
Key Specs
| Position | Left and Right |
| Spindle Style | Chevy/GM Custom |
| Spindle Drop | 2 Inch |
| Brake System Type | Disc |
| Angle | 10 degree |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91034925 Details
Speedway Motors 91034925 Details
1955-57 Chevy 2" dropped spindles for use with aftermarket disc brake conversion kits.
- 2" drop built in
- Cannot be used with stock drums or brake conversion for stock type spindle
- Sold in pairs
Ideal for use in conjunction with the following Wilwood brake kit for Heidts Tri-5 drop spindle application:
- 4-piston 12.19" rotor kit # 140-12306
Speedway Motors 91034925 Specifications
Speedway Motors 91034925 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91034925 |
| Brand | Speedway Motors |
| Position | Left and Right |
| Spindle Style | Chevy/GM Custom |
| Spindle Drop | 2 Inch |
| Brake System Type | Disc |
| Angle | 10 degree |
| Material Type | Steel |
| Snout Material | Steel |
| Finish | Natural |
| Color | Natural |
| King Pin Included | No |
| Mounting Bolt Center to Center | 3.13" |
| Suspension Height Adjustment | Lowered |
| GENERAL | |
| Outer Bearing Surface O.D. | 0.84" |
| Inner Bearing Surface O.D. | 1.25" |
| Seal Friction Surface O.D. | 2" |
| Spindle Pin Length (Inside Bearing) | 0.95" |
| Spindle Pin Length (Outside Bearing) | 3.1" |
| Spindle Pin Length (Overall) | 4.06" |
| Thread Pitch | 3/4"-20 |
| Sold in Quantity | Pair |
| Notes | ="Ball joints mount through the top, on both top & bottom ball joint mount bosses. Backing plate and steering arm mount holes are 3/8" and top mount is 3-1/8" C to C, bottom mount is 4" C to C." |
