1955-1994 Small Block Chevy Bolt-Through Cushion Motor Mount Kit

Specially designed engine mount cradle to mount your 1955-1994 Chevy 265-400 small block into almost any chassis.  This professional installation kit comes complete with heavy-duty rubber cushion bushings to connect engine mounts to frame adapters.  Includes grade 5 mounting hardware.

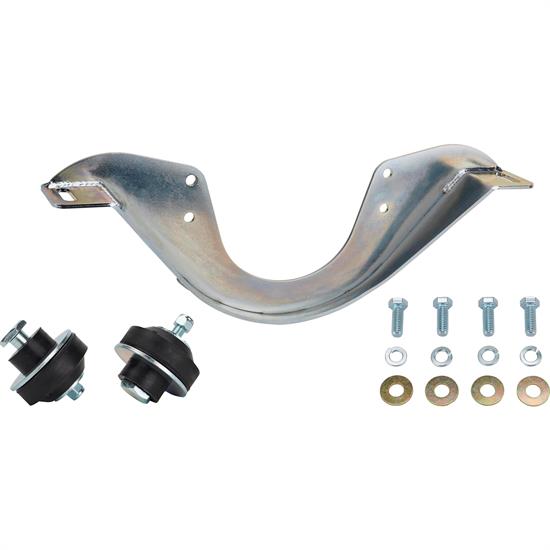

Kit Includes:

• (1) Universal Bolt-Through Engine Mount Cushion Kit
• (1) '55-'94 Small Block Chevy Engine Cradle Front Motor Mount



Universal Bolt-Through Engine Mount Cushion Kit

• Heavy duty rubber cushion absorbs vibrations for a comfortable driving experience
• Universal mount cushions - allow for easy setup
• Complete with bolts, washers, and rubber cushions for both sides of the engine
• Connects engine mounts to frame adapters
• 3" OD large bushing and 1 5/8" OD small bushing
• Large cone shaped rubber biscuit is 3" O.D. and 1-1/8" thick. It is the main load carrying component in the mount
• Small rubber biscuit is 1-5/8" O.D. and is 7/8" thick. It is stepped to mount in a 1" diameter hole and acts as the backup isolator for the mount
• Bolt is 3" long, has a 5/8" shank and 7/16" threads



'55-'94 Small Block Chevy Engine Cradle Front Motor Mount

• Not compatible with mechanical fuel pump
• Also fits 4.3L V6 engine if frame mounts are moved rearward from V8 location
• Will not fit 92-97 LT1 engines

Speedway offers a variety of frame adapters to pair with this motor mount for a wide array of vehicles:

1353298 – 55-57 Chevy Car

1353273 – 49-54 Chevy Car

1353274 – 28-34 Ford

1353312 – 35-40 Ford & Mercury

1353294 – 49-53 Ford & Mercury

1356872 – 53-64 Ford Truck

Engine Mounting Illustration (GIF)

Installation Instructions (PDF)
