1940-Design Early Ford Banjo Rear Axle Wheel Hub Install Kit

1940-Design Early Ford Banjo Rear Axle Wheel Hub Install Kit
5 on 5.5" Bolt Pattern, Steel, 7.50" Outside Diameter, 1.875" Stud Length, 1/2"-20 Thread Pitch
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle











1940-Design Early Ford Banjo Rear Axle Wheel Hub Install Kit
X










Details
What's In The Kit
Reviews
Q&A
Videos & Articles
- Fits early ford rear axles w/ drum brakes - Comes with pre-installed wheel studs
- 1940 design which was of the slip-over drum configuration
- Rear hubs are keyed for the stock axles and include the bearing race, seal and lock ring
- 1928-48 Ford tight-fitting rear axle hub key that will prevent damage to the axle keyway
- 5 x 5-1/2 bolt pattern
Build Your Kit
You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.Next
Details
Wheel Bolt Pattern (in.):
5x5 in.
Bolt Pattern:
5 on 5.5"
Material Type:
Steel
Finish:
Natural
Outside Diameter:
7.50"
Stud Length:
1.875"
Thread Pitch:
1/2"-20
Sold in Quantity:
Kit
Info

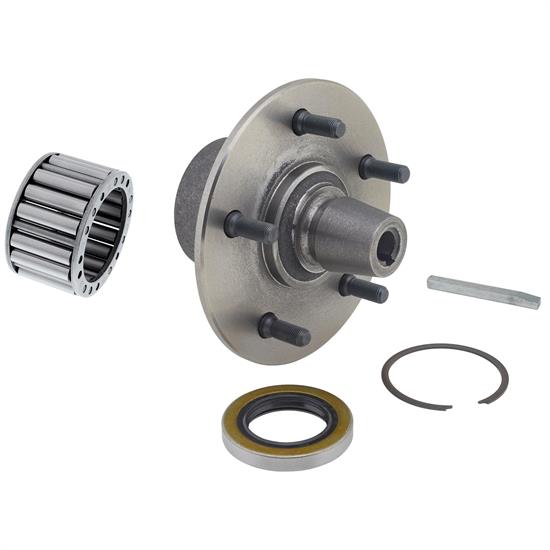

Kit Includes:
- (1) 1928-48 Ford Rear Axle Hub Key
- (1) 1940-Design Early Ford Banjo Rear Axle Wheel Hub, 5 on 5.5 BP
- (1) Early Ford Banjo Rear End Axle Wheel Bearing
Rear Axle Hub Key
- The wheels lock onto this key, and are then held onto the axle with a nut
- Be sure to check your old keys, worn keys can damage the keyway and therefore the axle
- 1928-48 Ford tight-fitting rear axle hub key that will prevent damage to the axle keyway
- Tapered 1/2" and the tapered end goes towards the differential
Banjo Rear Axle Wheel Hub
- 1940 design which was of the slip-over drum configuration
- Rear hubs are keyed for the stock axles and include the bearing race, seal and lock ring
- Slip-on design
- Fits early ford rear axles w/ drum brakes
- 5 x 5-1/2 bolt pattern
- Comes with pre-installed wheel studs
- 1.130" big end taper
- .748" small end taper
- 2-3/4" Long
- 1/4" wide/thick
- 2 required per car
- Steel
Banjo Rear End Axle Wheel Bearing
- 2.792 O.D.
- 2.096 I.D.
- 1.622 Length
Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
What's In The Kit
Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
-
Speedway Early Ford Banjo Rear End Axle Wheel BearingPart # 91268125Qty x 1
-
Speedway 1940-Design Early Ford Banjo Rear Axle Wheel Hub, 5 on 5.5 BPPart # 91065460Qty x 1
-
1928-48 Ford Rear Axle Hub KeyPart # 91065462Qty x 1
