1939-48 Ford Front Wheel Cylinder Kit
1939-48 Ford Front Wheel Cylinder Kit

1939-48 Ford Front Wheel Cylinder Kit

1.25" Bore Size, 1.00" Bore Size (Opposite), 7/16"-20 Thread Pitch, Steel, Natural

2 Reviews | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
1939-48 Ford Front Wheel Cylinder Kit
1939-48 Ford Front Wheel Cylinder Kit
1939-48 Ford Front Wheel Cylinder Kit
1939-48 Ford Front Wheel Cylinder Kit
1939-48 Ford Front Wheel Cylinder Kit
X
1939-48 Ford Front Wheel Cylinder Kit
1939-48 Ford Front Wheel Cylinder Kit
1939-48 Ford Front Wheel Cylinder Kit
Zoomed In Image
Part # 91603038
Save 9%
$101.99
$113.00
each
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • Includes 1939-1948 Ford Car Front Wheel Cylinder 1.25 x 1 (left and right side)
  • Premium steel construction for superior strength and durability
  • 7/16"-20 Straight thread inlet
  • Bleeder is threaded 3/8"-24
  • Bore size 1.25", bore size (opposite): 1.00"

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Bore Size:
1.25"
Bore Size (Opposite):
1.00"
Thread Pitch:
7/16"-20
Material Type:
Steel
Finish:
Natural
Sold in Quantity:
Kit

Info

Hit the brakes and make sure you come to a complete stop with a new set of wheel cylinders for your '39-48 Ford car from Speedway Motors! Save your valuable time and money shopping for your projects needs with our simple, one-click solution for rebuilding your front drum brake setup!

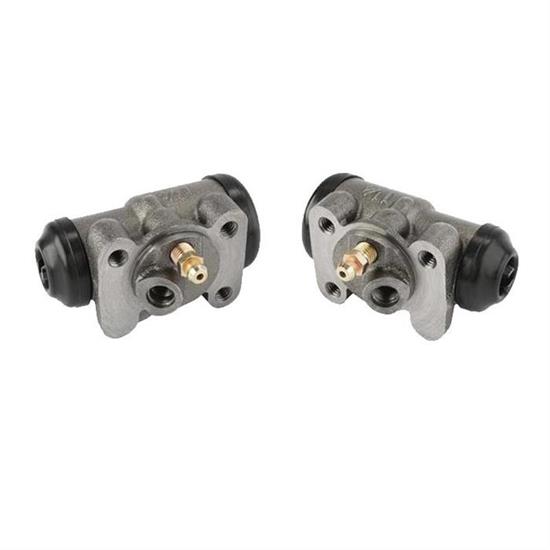

Kit Contains:

  • (1) Speedway Left-Side 1939-1948 Ford Car Front Wheel Cylinder 1.25 x 1
  • (1) Speedway Right-Side 1939-1948 Ford Car Front Wheel Cylinder 1.25 x 1

Speedway 1939-1948 Ford Car Front Wheel Cylinder 1.25 x 1

Whether you are restoring a classic or building yourself a traditional hot rod, you need a set of our new stainless steel sleeved wheel cylinders. We start with all new casting, install corrosion resistant stainless steel sleeves with news pistons, cups and seals. Each cylinder has two bore sizes just as the originals did. To adapt to an AN# 3 brake line, use fitting # 617-4132 along with crush washer # 617-3513.

  • Includes right and left side wheel cylinders
  • 7/16"-20 straight thread inlet.
  • Bleeder is threaded 3/8"-24
  • Bore size 1.25"
  • Bore size (opposite): 1.00"
  • Thread Pitch: 7/16"-20 Straight Thread

Installation Tips

WARNING - These parts are designed to operate under hydraulic fluid pressure. To insure that there is no damage to the seals avoid the temptation to push inward on the cylinder dust covers and pucks with your fingers prior to installation (when there is no fluid in the cylinders). With lack of fluid in the cylinder, this action can dislodge the internal rubber cup piston seals from the installed position. Failure of the internal seal to seat correctly can produce a wheel cylinder fluid leak which allows air to enter the lines and disable the brake system. Please follow brake service instructions from an accepted automotive service manual.

Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Speedway Left-Side 1939-1948 Ford Car Front Wheel Cylinder 1.25 x 1
    Qty x 1
  • Speedway Right-Side 1939-1948 Ford Car Front Wheel Cylinder 1.25 x 1
    Qty x 1
