Product Summary

Mechanical Water Pump Type, 1 Groove Count, Polished

  • These new water pumps from Speedway Motors feature severe-duty roller and ball bearings
  • The close tolerances and modular impellers to provide maximum flow and reduce cavitation
  • Comes with modern ceramic seals on a heavy duty 3/4" shaft, making the assembly exceptionally strong and more efficient
  • All the mounting areas are spot faced for improved fit and sealing
  • Specially designed for the 1937-1948 Ford and Mercury cars and trucks

Key Specs

MFG. Part #
BrandSpeedway Motors
Water Pump TypeMechanical

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

Original Flathead water pumps have always suffered from unreliable bronze bushings and carbon seals. They almost always leaked and even Ford manuals warned mechanics not to tighten fan belts too tight. The excess slack allowed belts to slip and lose contact with the generator and water pump pulleys, causing more cooling and power problems.

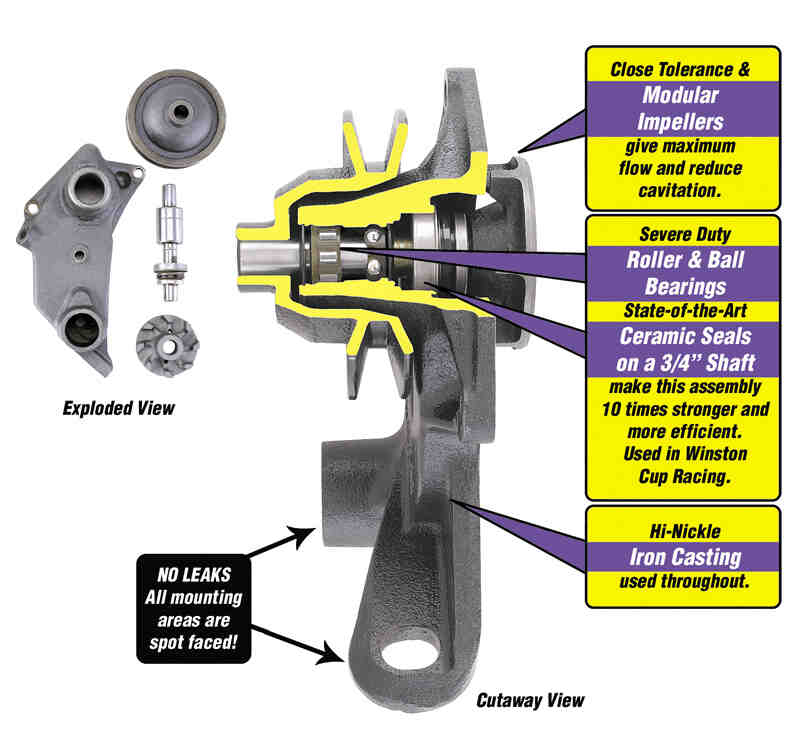

Speedway's completely new water pumps feature severe-duty roller and ball bearings, close tolerances and modular impellers to provide maximum flow and reduce cavitation. They also have modern ceramic seals on a heavy duty 3/4" shaft, making the assembly exceptionally strong and more efficient. All mounting areas are spot faced for improved fit and sealing.

Factory replacement for 1937-1948 Ford and Mercury cars and trucks. Includes gaskets.

  • Polished finish
  • Severe-duty roller and ball bearings
  • Ceramic seals on sturdy 3/4" shaft
  • High-flow modular impeller reduces cavitation
  • Gaskets included
  • For systems with 5/8" drive belts

Charts

Specifications

KEY SPECS
MFG. Part #
BrandSpeedway Motors
Water Pump TypeMechanical
GENERAL
Pulley Type CompatibilityV-Belt
Pulley Diameter4.35"
Groove Count1
Belt Width0.63"
Housing MaterialAluminum
Housing FinishPolished
Housing ColorNatural
Mounted Length3.4"
Overall Width6.25"
Overall Height9.00"
Gasket(s) IncludedYes
Hardware IncludedNo
Sold in QuantityEach
