Add to Cart
$139.99
1937-1939 Chevy Frame Rail Mount Pedal Assemblies
1937-1939 Chevy Frame Rail Mount Pedal Assemblies

1937-1939 Chevy Frame Rail Mount Pedal Assemblies

37-38 Chevy Master, 1939 Chevy Master 85, 1934 Chevy DB, 3.38" x 3.38" Bolt Hole Pattern, Steel

2 Reviews | 3 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
1937-1939 Chevy Frame Rail Mount Pedal Assemblies
1937-1939 Chevy Frame Rail Mount Pedal Assemblies
1937-1939 Chevy Frame Rail Mount Pedal Assemblies
1937-1939 Chevy Frame Rail Mount Pedal Assemblies
X
1937-1939 Chevy Frame Rail Mount Pedal Assemblies
1937-1939 Chevy Frame Rail Mount Pedal Assemblies
Zoomed In Image
Part # 91631958
$139.99
each
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • Bolts to the left frame rail (boxed or open channel) of a reproduction early frame or one without its original X member
  • Brake booster/master cylinder not included (sold separately)
  • Includes bracket, pedal, pedal pad and hardware
  • Intended for use on vehicles with automatic transmission- will not work with factory clutch pedals
  • New parts make installation cleaner

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

MFG. Part #:
91631958
Bolt Hole Pattern:
3.38" x 3.38"
Material Type:
Steel
Finish:
Natural
Hardware Included:
Yes
Sold in Quantity:
Kit
Notes:
Includes pedal, pedal pad and threaded bung.

Info

This kit adapts our brake booster/master cylinder (not included, sold separately at right) to the left frame rail (boxed or open channel) of a '37-'39 Chevy frame. Bracket bolts to frame (slight trimming may be required). Sturdy, steel pedal arm can easily be heated and bent to clear any obstacles your car may have. Round pedal pad screws onto pedal to finish the installation.

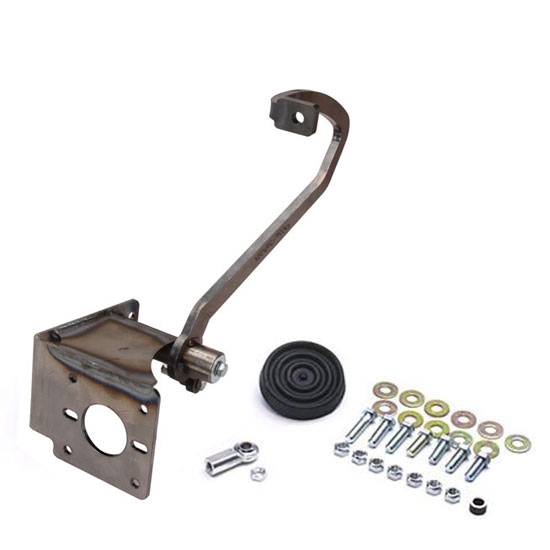

Pedal assembly kit includes zinc plated bracket, pedal, pedal pad and hardware.

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Brake Pedal 1939-37 Chevy Car Frame
    Qty x 1
  • Brake Pedal Pad, Round, Rubber
    Qty x 1
  • Standard Steel Heim Joint Rod Ends, 3/8-24 RH Female
    Qty x 1
  • Steel Jam Nut, 3/8 Inch-24 Fine Thread, Zinc Coated
    Qty x 1
  • Bolt & Nut Set/35+ Brake Pedal
    Qty x 1
  • Threaded Steel Weld Bung Fitting, 1/4 Inch NPT Female
    Qty x 1
