Part # 91139537
1933-1934 Ford Dash Panel, Stewart Warner Gauges
by
3 Reviews
|
1 Question
- Aluminum dash panels
- 3 1/8" & 2 1/16" gauge sizes
- Stewart Warner gauges
See More
$131.99
each
On Backorder
This part is Backordered. We currently do not have an estimate when this item will ship.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
33-34 Ford, Aluminum, Polished, 5 Gauge Quantity
- Aluminum dash panels
- 3 1/8" & 2 1/16" gauge sizes
- Stewart Warner gauges
- For use with 5/32" LED bulbs for turn signal indicators
See more details
Key Specs
MFG. Part # | 91139537 |
Material Type | Aluminum |
Finish | Polished |
Speedometer Hole Diameter | 3.4" |
Auxiliary Gauge Hole Diameter | 2.14" |
See more specs
Need To Know
Free Shipping on Orders Over $149
Quick and Easy Returns
Details
Details

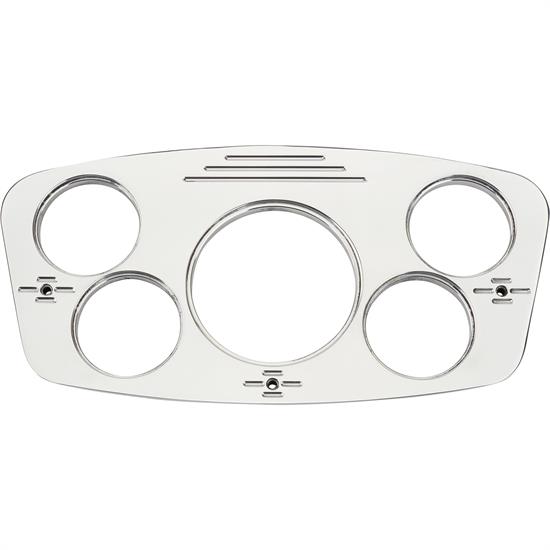

These beautiful billet aluminum dash panels are the perfect finishing touch for your interior. These are held into a factory dash or equivalent fiberglass dash with four tabs that attach to the back of the billet panel with 4 machine screws, which are included. This billet panel sits down into the recess lip of the factory or aftermarket dash. For use with Stewart Warner gauges.
This panel features three drilled and recessed holes that can be used for mini LED indicator lights. The inside diameter of the hole is 5/32" and the recess around the hole is nearly 1/4" wide for the light bezel around the bulb. The three holes would serve for high beam indicator, and left and right turn indicators.
Entire thickness of this panel is 3/8" with 1/4" going through the dash opening and the remaining 1/8" being the lip that sits into the factory style recessed lip of the dash. Designed for a 3-3/8" O.D. speedometer and 2-1/16" O.D. auxillary Stewart Warner gauges.
Specifications
Specifications
KEY SPECS | |
---|---|
MFG. Part # | 91139537 |
Brand | Speedway Motors |
Material Type | Aluminum |
Finish | Polished |
Speedometer Hole Diameter | 3.4" |
Auxiliary Gauge Hole Diameter | 2.14" |
GENERAL | |
Gauge Quantity | 5 |
Overall Width | 11.75" |
Overall Height | 5.75" |
Overall Thickness | .38" |
Sold in Quantity | Each |
