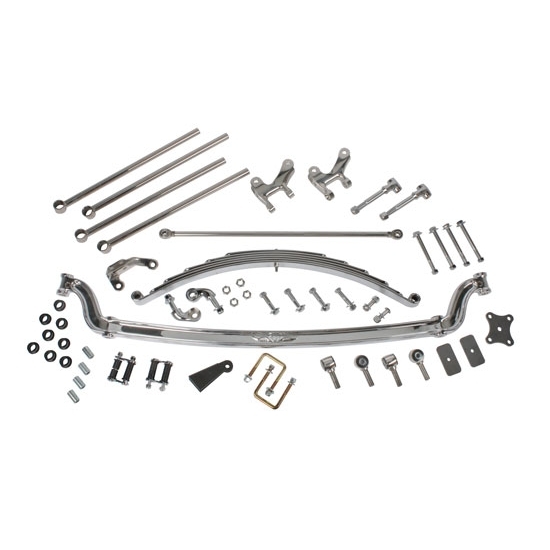

1932 Ford Front End Assembly, Tube Axle, 4-Bar Kit, Chrome

1932 Ford Front End Assembly, Tube Axle, 4-Bar Kit, Chrome
1932 Ford Model B, 1932 Ford Model 18, Straight Axle Front Suspension Type, Chrome
On Backorder
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Build Your Kit
You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.Next
Details
Front Suspension Type:
Straight Axle
Suspension Height Adjustment:
3 Inch Lowered
Control Arm Style:
4-Bar
Shock Type:
Not Included
Spring Type:
Leaf Spring
Finish:
Chrome
Bolt Pattern:
Not Applicable
Rotor Diameter:
Not Included
Spindle Style:
Ford Stock
Dropped Spindles:
No
Dropped Axle:
Yes
Dropped Control Arms:
No
Front Leaf Spring Style:
Spring-Over Axle
Spindles Included:
No
Brakes Included:
No
Steering Included:
No
Notes:
Front axle kit for 1932 Ford Chassis frame # 916-57050
MFG. Part #:
91639610
Frame Brackets Included:
No
Welding Required:
Yes
Info
To make it easier for you the builder, we have four front axle assemblies that are designed for frame #91657050. Choose from plain or chrome and tube or I-beam axles.
These front end assemblies include a new tube or I-beam axle, new leaf spring and u-bolts, spring shackles, spring perches, lower shock mounts, 4-bars and ends and panhard bar assembly.
Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
What's In The Kit
Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
-
Chrome Front Tube Axle w/ Perch Bolt Holes, Ford SpindlePart # 91035118Qty x 1
-
Super Glide® Front Spring, 48 Inch Axle, Reverse Eye, ChromePart # 91033028Qty x 1
-
Speedway Front Solid Axle Leaf Spring Perch, Chrome Forged SteelPart # 91033046Qty x 1
-
Speedway Forged Steel Lower Shock Mounts for Front Solid Axle, ChromePart # 91036103Qty x 1
-
Transverse Leaf Spring Shackles w/ Nylon Bushings, ChromePart # 91033323-CHRQty x 1
-
Stainless Jam Nut, 5/8 Inch-18 RH NF Fine ThreadPart # 91001156Qty x 4
-
Speedway Stainless 4-Bar Rod End, 5/8-18 RH Thread, Straight ShankPart # 91008051-STRQty x 4
-
Polished Stainless Steel 4-Bar Batwing Brackets w/ Mounts, PairPart # 91635006-POLQty x 1
-
CHR Bolt & Nut Set - 4 Bar KitPart # 91639001-1Qty x 1
-
21-1/2 Inch Four Bar RodsPart # 91645133Qty x 1
-
Plain Model T thru 1934 U-BoltsPart # 91633010Qty x 1
-
U-Bolt Clamping Plate SetPart # 91633016Qty x 1
-
Polished Panhard Bar Kit, 1928-1934 Ford 4-Bar Front End SuspensionPart # 91049801-POLQty x 1
