#91639610
1932 Ford Front End Assembly, Tube Axle, 4-Bar Kit, Chrome
$2,287.99
kit
On Backorder
$2,333.81
Save $45.82
This part is Backordered. We estimate this item will ship on or before December 24th.
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Straight Axle Front Suspension Type, Chrome
Comes as a Kit
View Kit Components
Key Specs
| Front Suspension Type | Straight Axle |
| Suspension Height Adjustment | 3 Inch Lowered |
| Control Arm Style | 4-Bar |
| Shock Type | Not Included |
| Spring Type | Leaf Spring |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91639610 Details
Speedway Motors 91639610 Details
To make it easier for you the builder, we have four front axle assemblies that are designed for frame #91657050. Choose from plain or chrome and tube or I-beam axles.
These front end assemblies include a new tube or I-beam axle, new leaf spring and u-bolts, spring shackles, spring perches, lower shock mounts, 4-bars and ends and panhard bar assembly.
Charts

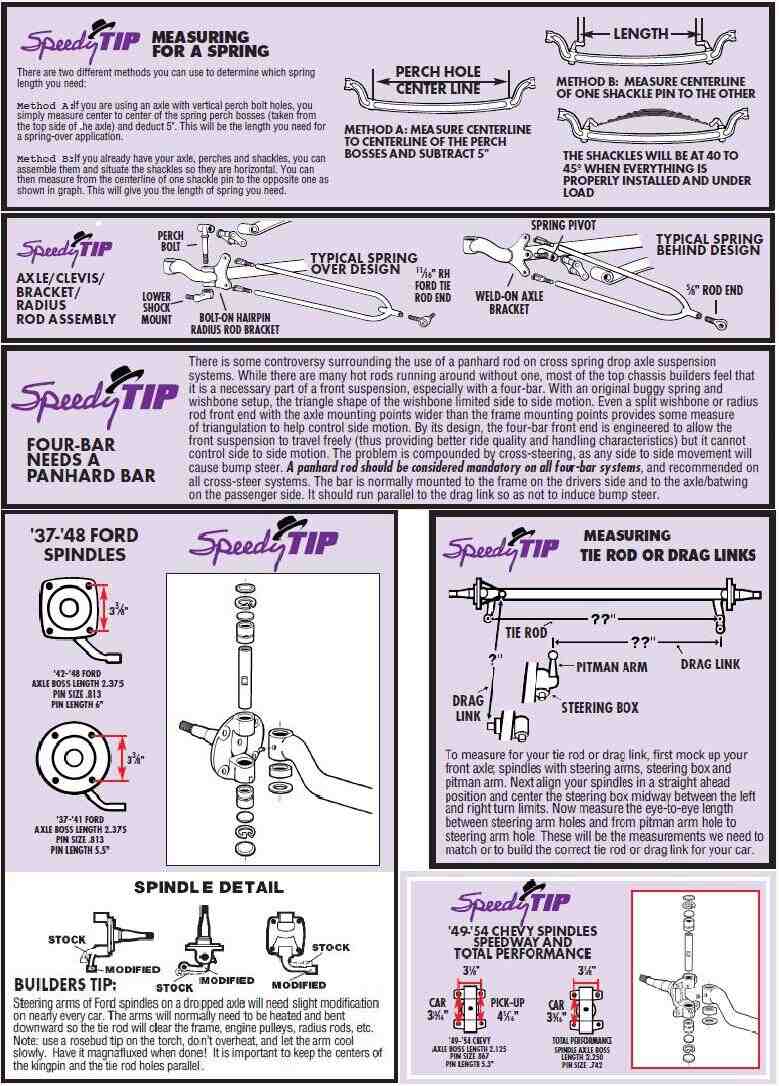

Guides & Documents
Speedway Motors 91639610 Specifications
Speedway Motors 91639610 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91639610 |
| Brand | Speedway Motors |
| Front Suspension Type | Straight Axle |
| Suspension Height Adjustment | 3 Inch Lowered |
| Control Arm Style | 4-Bar |
| Shock Type | Not Included |
| Spring Type | Leaf Spring |
| Finish | Chrome |
| Bolt Pattern | Not Applicable |
| Rotor Diameter | Not Included |
| Spindle Style | Ford Custom |
| Dropped Spindles | No |
| Dropped Axle | Yes |
| Dropped Control Arms | No |
| Front Leaf Spring Style | Spring-Over Axle |
| Spindles Included | No |
| Brakes Included | No |
| Steering Included | No |
| Welding Required | Yes |
| GENERAL | |
| Notes | Front axle kit for 1932 Ford Chassis frame # 916-57050 |
| Frame Brackets Included | No |
| Straight Axle Style | Tube |
