#91639620
1932 Ford Front End Assembly, I-Beam Axle, 4-Bar Kit, Plain
$875.99
kit
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Straight Axle Front Suspension Type, Natural
Comes as a Kit
View Kit Components
Key Specs
| Front Suspension Type | Straight Axle |
| Suspension Height Adjustment | 4 Inch Lowered |
| Control Arm Style | 4-Bar |
| Shock Type | Not Included |
| Spring Type | Leaf Spring |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91639620 Details
Speedway Motors 91639620 Details
To make it easier for you the builder, we have four front axle assemblies that are designed for frame #91657050. Choose from plain or chrome and tube or I-beam axles.
These front end assemblies include a new tube or I-beam axle, new leaf spring and u-bolts, spring shackles, spring perches, lower shock mounts, 4-bars and ends and panhard bar assembly.
Charts

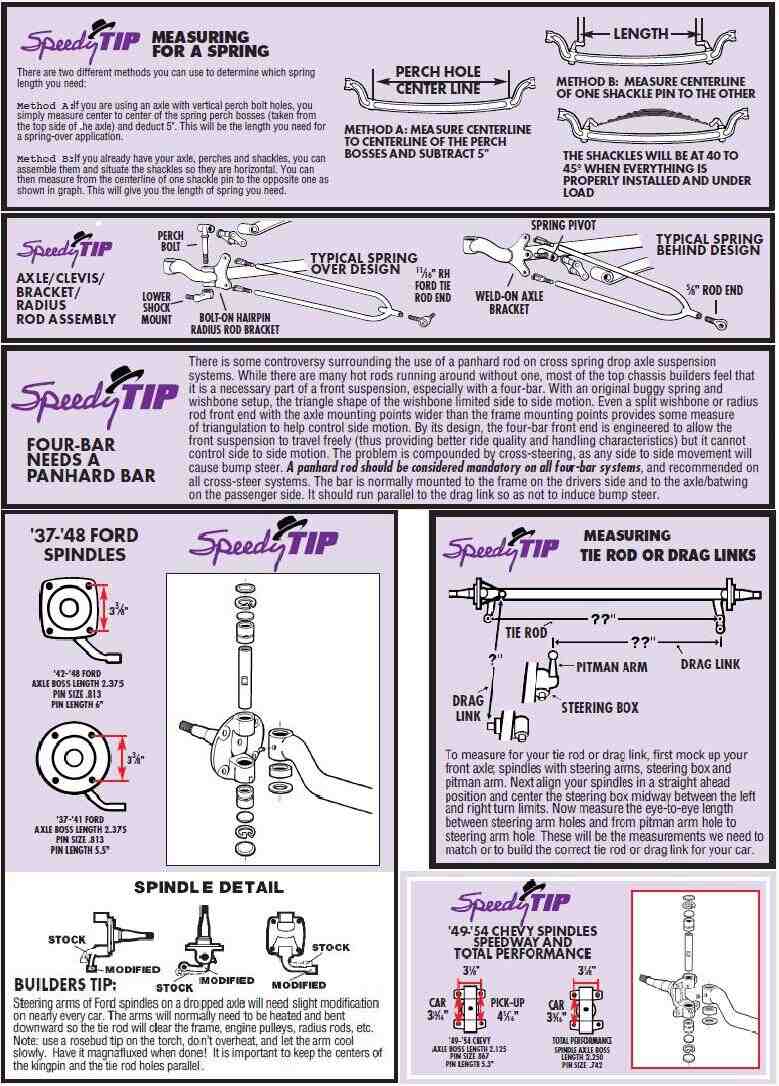

Instructions(PDF)
Guides & Documents
Speedway Motors 91639620 Specifications
Speedway Motors 91639620 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91639620 |
| Brand | Speedway Motors |
| Front Suspension Type | Straight Axle |
| Suspension Height Adjustment | 4 Inch Lowered |
| Control Arm Style | 4-Bar |
| Shock Type | Not Included |
| Spring Type | Leaf Spring |
| Finish | Natural |
| Bolt Pattern | Not Applicable |
| Rotor Diameter | Not Included |
| Spindle Style | Ford Custom |
| Dropped Spindles | No |
| Dropped Axle | Yes |
| Dropped Control Arms | No |
| Front Leaf Spring Style | Spring-Over Axle |
| Spindles Included | No |
| Brakes Included | No |
| Steering Included | No |
| Hardware Included | Yes |
| Welding Required | Yes |
| GENERAL | |
| Material Type | Steel |
| Sold in Quantity | Kit |
| Straight Axle Style | Solid I-Beam |
Ratings & Reviews
5
1 Review
Ratings & Reviews
5
1 Review
5
1 reviews
5
1
4
0
3
0
2
0
1
0
Filter by Ratings
Great Kit
5.0
11 years ago
bigmurf
Michigan
This was my first purchase from Speedway and I was amazed at how fast it arrived, and that every single part was there and undamaged. I was pleasantly surprised to find that the axle is a Super Bell axle, not some cheapo axle. And the parts that I expected were "plain steel," like the4-bars and spring, are already powder-coated. It's a great kit.
Would Recommend
Showing 1 of 1 reviews
