#91639513

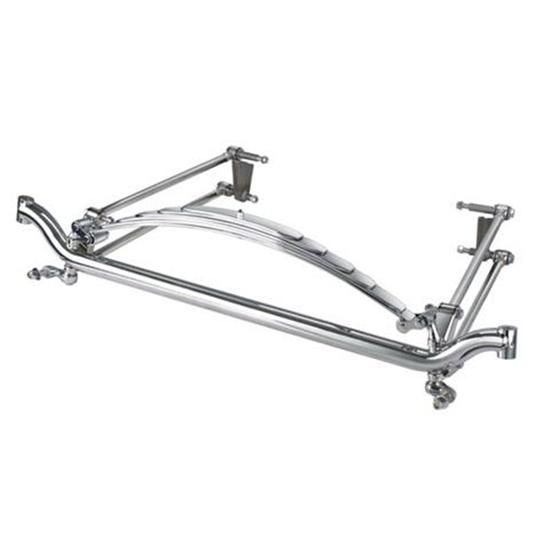

1932-34 Ford 4-Bar Tube Axle Kit for Ford Spindles, Chrome
- Will fit '32-'34 Ford
- Will for '32-'34 Ford
- Chrome Finish
$2,060.99
/kit
On Backorder
$2,102.83
Save $41.84
This part is Backordered. We currently do not have an estimate when this item will ship.
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Straight Axle Front Suspension Type
- Will fit '32-'34 Ford
- Will for '32-'34 Ford
- Chrome Finish
- 3" drop tube
- 48" wide
Comes as a Kit
View Kit Components
Key Specs
| MFG. Part # | 91639513 |
| Front Suspension Type | Straight Axle |
| Suspension Height Adjustment | 3 Inch Lowered |
| Control Arm Style | 4-Bar |
| Shock Type | Not Included |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91639513 Details
Speedway Motors 91639513 Details
Save yourself searching and confusion with these complete 1932-34 Ford front suspension kits. Each kit includes a 48" wide, 3" drop tube axle, our famous urethane-bushed 21" long four bar assembly, perch bolts, lower shock mounts, spring shackles, Super Glide spring and the necessary brackets and hardware needed for assembly.
Requires '37-'48 Ford passenger car spindles.
Each kit includes:
- 48" kingpin-to-kingpin tube axle, 3" drop
- Urethane-bushed 21" long 4-bar assembly
- Forged steel perch bolts
- Forged steel lower shock mounts (key-slotted design)
- Spring shackles w/ nylon bushings
- 31-1/4" eye-to-eye 4-leaf Super Glide cross spring
- All hardware for assembly
Charts
Guides & Documents
Speedway Motors 91639513 Specifications
Speedway Motors 91639513 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91639513 |
| Brand | Speedway Motors |
| Front Suspension Type | Straight Axle |
| Suspension Height Adjustment | 3 Inch Lowered |
| Control Arm Style | 4-Bar |
| Shock Type | Not Included |
| Spring Type | Leaf Spring |
| Finish | Chrome |
| Rotor Diameter | Not Included |
| Spindle Style | Ford Custom |
| Dropped Spindles | No |
| Dropped Axle | Yes |
| Dropped Control Arms | No |
| Front Leaf Spring Style | Spring-Over Axle |
| Spindles Included | No |
| Brakes Included | No |
| Steering Included | No |
| Welding Required | Yes |
| GENERAL | |
| Straight Axle Style | Tube |
