1928-31 Model A Tail Light Bracket Kit, Chrome

Upgrade your Model A today with our Speedway Motors Model A Tail Light Bracket Kit! Save time and money on your next build by purchasing our tail light brackets together.

Kit Contains:

• (1) Speedway Motors 1928-31 Model A Tail Light Bracket, Left
• (1) Speedway Motors 1928-31 Model A Tail Light Bracket, Right

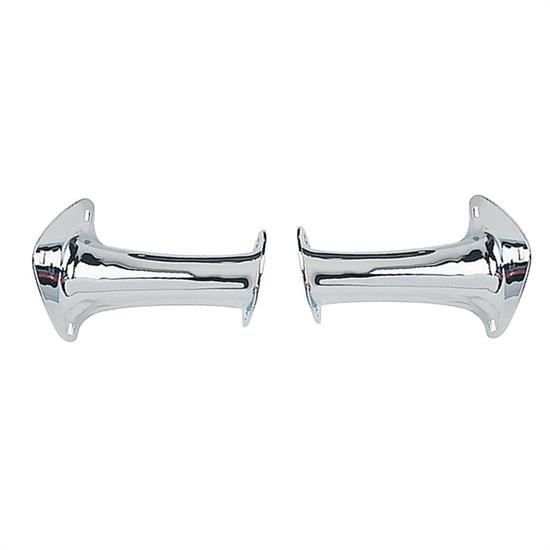

Speedway Motors 1928-31 Model A Tail Light Brackets

Chrome plated stamped steel Model A tail light bracket only (taillight is not included). Left side bracket will mount license plate bracket.

• Includes both left and right brackets
• Mount point to mount point is 5-3/8"
• The flange to which the taillight attaches is 2.375" round, with the taillight bolt holes (2 of them, 0.25" diameter), horizontal, 1.75" apart
• The flanges for the taillight and the fender are not parallel, but are the closest at 4.5"
• The fender flange is triangle-shaped, 3.625" wide by 2.75" tall
• The 3-bolt pattern of the fender flange is 2.25" by 2.25" by 2.875" (1/4" square holes)
• Three holes are drilled to mount this bracket to your Model A fender:
  • The bottom two holes are 3-7/8" center to center
  • The top hole is 3-3/8" center to center with each bottom hole
