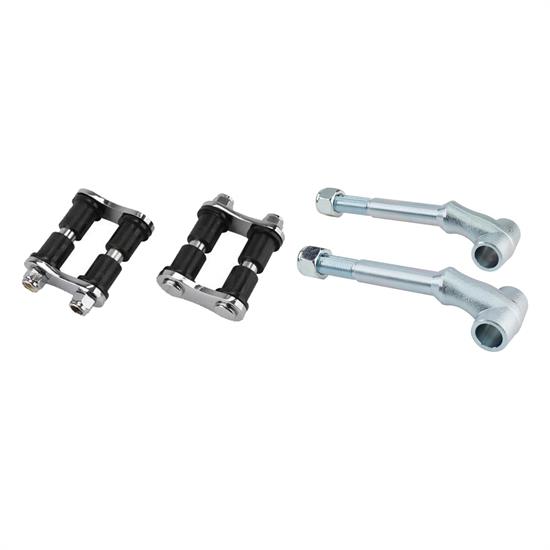

1-3/4 Inch Shackle and Solid Axle Leaf Spring Perch Kit
Universal Fit, 1-3/4 Inch Leaf Spring Width, 1.50" Center to Center, 0.750" Bushing Diameter
- Includes (1) 1-3/4 Nylon Spring Shackle Kit Pair & (1) Front Solid Axle Leaf Spring Perch
- Shackle pair fits front or rear springs
- Leaf spring perch works with 1928-1934 Ford front ends with 1-3/4" wide cross spring
- Versatile design for an easy installation
- Includes nylock nut
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Packed together, to save you time and money! Our in house experts have compiled this Shackle and Spring Kit to get you the parts you need - with zero frustrations along the way - to keep your shop projects moving forward!
- (1) Speedway Motors 1-3/4 Nylon Spring Shackle Kit Pair, Zinc Finish
- (1) Speedway Motors Front Solid Axle Leaf Spring Perch, Plain Forged Steel
Speedway Motors 1-3/4 Nylon Spring Shackle Kit Pair, Zinc Finish
Fits front or rear springs. All measurements are the width of spring. All nylon bushed shackles are 1-1/2" shackle bolt center to shackle bolt center.
- Bushings are included.
- Bushing O.D. is 3/4".

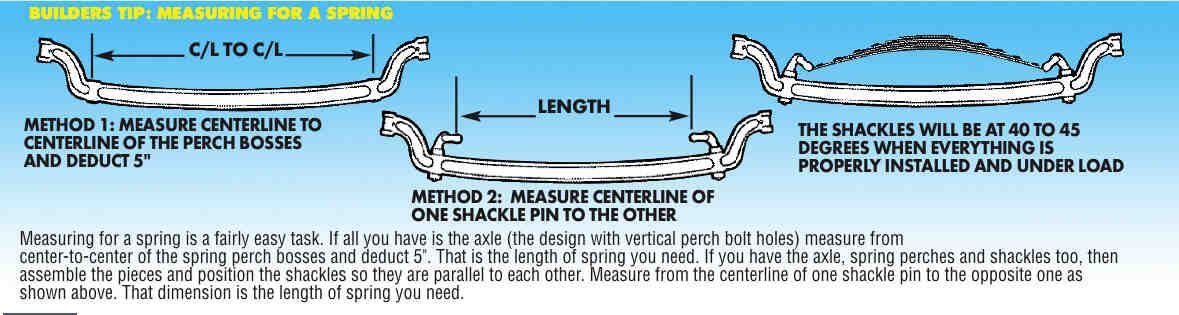

Leaf Spring Measuring Guide (Link)
Speedway Motors Front Solid Axle Leaf Spring Perch, Plain Forged Steel
Works with 1928-34 Ford front ends with 1-3/4" wide cross spring. Extra long for lower shock mounts. Includes nylock nut.
- 2-1/2" from top of threads to mid shoulder
- 2-7/8" from top of threads to top of shoulder
- Thread length is 1-7/8"
- Distance from the top of the shoulder to the bottom of the threads is 4-3/4"
- Overall Width: 1.750"
- Inside Diameter: 0.750"
- Thread Length: 1.750"
- Thread Pitch: 5/8"-18
- Overall Height: 6.840"
- Under Head Length: 2.50"
Leaf Spring Measuring Guide (Link)
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
What's In The Kit
Transverse Leaf Spring Shackles w/ Nylon Bushings, Zinc FinishPart # 91033323-ZINCQty x 1
Speedway Front Solid Axle Leaf Spring Perch, Plain Forged SteelPart # 91033047Qty x 1
