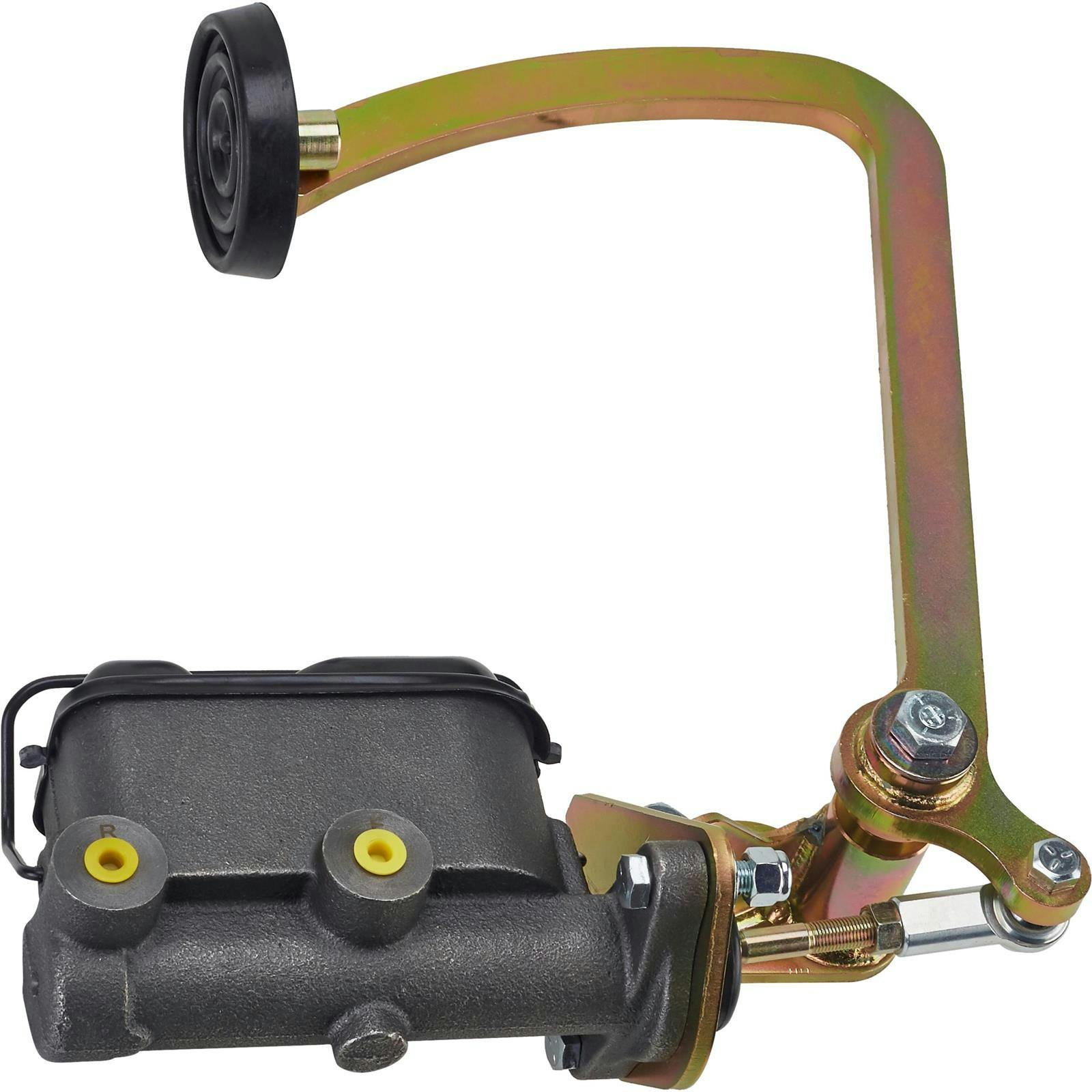

Master Cylinder/Pedal Assembly for Model T, A, 1932 Ford
- Designed for a clean and simple install
- 1" bore remanufactured master cylinder is suitable for 4-wheel disc or disc/drum brake setups
- Kit includes a dual feed master cylinder, frame bracket, and a steel pedal arm w/ pad
$165.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Frame Position, Disc/Drum Brake System Type
- Designed for a clean and simple install
- 1" bore remanufactured master cylinder is suitable for 4-wheel disc or disc/drum brake setups
- Kit includes a dual feed master cylinder, frame bracket, and a steel pedal arm w/ pad
- Brake lever can easily be modified for driver comfort
- Intended for use with an automatic transmission
Comes as a Kit
View Kit Components
Key Specs
| MFG. Part # | 91631926 |
| Brand | Speedway Motors |
| Brake System Type | Disc/Drum |
| Master Cylinder Bore Size | 1 Inch |
| Reservoir Type | Integral |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91631926 Details
Speedway Motors 91631926 Details
Designed for a clean and simple install onto Model T, Model A, and 1932 Ford frame. The included 1" bore remanufactured master cylinder is suitable for 4-wheel disc or disc/drum brake setups. The outlet ports are 3/8"-24 IFF. The bracket can be bolted or welded to the left frame rail (boxed or stock).
Kit includes a dual feed master cylinder, frame bracket, and a steel pedal arm w/ pad that can be easily modified for driver comfort.
Note: Will NOT work in conjunction with the factory clutch pedal. Intended for use with an Automatic Transmission.
Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.
Item Details
Fits Model T, Model A, and 1932 frames.Application
Charts
916-31926 Instructions (PDF)
Specs
- Both fluid outlets are 3/8" -24 Inverted flare female.
- Overall Height of Pedal: 11" (from the center of the pivot)
- Pedal Ratio: 6:1
- Frame bracket is 4" front-to-back, 4-1/2" tall, and 3-1/4" from top of bracket down to centerline of master cyl. mount
- From where master cylinder bolts to the bracket to the end of the master cylinder is 7”
- Master Cylinder Overall Height: 5”
- From the mounting holes to the top is 4-1/4”
Speedway Motors 91631926 Specifications
Speedway Motors 91631926 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91631926 |
| Brand | Speedway Motors |
| Brake System Type | Disc/Drum |
| Master Cylinder Bore Size | 1 Inch |
| Reservoir Type | Integral |
| GENERAL | |
| Position | Frame |
| Master Cylinder Mount Type | Reverse |
| Pedals Included | Brake |
| Master Cylinder Count | 1 |
| Outlet Count | Tandem |
| Outlet Fitting | 3/8"-24 IFF |
| Outlet Fitting 2 | 3/8"-24 IFF |
| Centerline of Holes | 3.25" |
| Pedal Length | 11" |
| Brake Booster Included | No |
| Balance Bar | No |
| Sold in Quantity | Kit |
| Notes | Includes master cylinder and pedal with pad. |
Ratings & Reviews
4.7
76 Reviews
The product, commonly used for vintage or modified vehicles, stands out for its high quality, durability, and practicality. Many customers commented on the excellent quality of the parts and how well they work, even in various custom applications. They also appreciated its versatile mounting options, either bolted or welded, to adapt to different car models. Reviews mention that the kit provides great performance in both disc and drum systems, even though some fabrication may be required for a perfect fit. Despite calls for clearer instructions, customers generally found the assembly straightforward. However, a few users noted that the kit’s hardware might need some adjustment depending on the vehicle’s specific configuration. Safety and reliability were highly praised, with users often recommending the product over competing alternatives. Despite some minor issues, the product was overwhelmingly praised and repeatedly purchased by a number of customers.
Ratings & Reviews
4.7
76 Reviews
The product, commonly used for vintage or modified vehicles, stands out for its high quality, durability, and practicality. Many customers commented on the excellent quality of the parts and how well they work, even in various custom applications. They also appreciated its versatile mounting options, either bolted or welded, to adapt to different car models. Reviews mention that the kit provides great performance in both disc and drum systems, even though some fabrication may be required for a perfect fit. Despite calls for clearer instructions, customers generally found the assembly straightforward. However, a few users noted that the kit’s hardware might need some adjustment depending on the vehicle’s specific configuration. Safety and reliability were highly praised, with users often recommending the product over competing alternatives. Despite some minor issues, the product was overwhelmingly praised and repeatedly purchased by a number of customers.
4.7
76 reviews
5
57
4
17
3
1
2
0
1
1
Most Liked Positive Review
4.0
Extremely Heavy Duty Construction
I'm currently installing this brake unit in a 1928 Model A Pickup and am quite impressed by the extremely heavy duty construction of the brake unit......3/8" gold-anodized steel. So far, although the firewall and floorboard areas are extensively modified, I've been able to install the unit successfully. Only one drawback......the link provided between the pedal unit and master cylinder is way, way too long. Even if you screw the actuating rod completely into the heim joint, the pedal end of the brake lever is so far forward it almost touches the master cylinder. I will now have to fabricate a proper-length rod to complete the installation.
Most Liked Negative Review
1.0
Poor design
Had to wait due to Backorder. When arrived I found the clevis and pushrod were 1/2 inch out of line with the bore of the master cylinder. Had to modify pedal and mount in order to align pushrod into master cylinder. Poor manufcturing
Filter by Ratings
yes
5.0
5 months ago
bryan
ky
Verified
easy install
Would Not Recommend
Good unit for the money
5.0
5 months ago
Mike
Kalamazoo michigan
Verified
I am building a 29 model a rod. This powerglide shifter is inexpensive and works quite well. It fits comfortanly in front of the seat out of the way!
Would Recommend
Yes
5.0
a year ago
Gilbert
KY Merica
Verified
It's fantastic!
Would Recommend
Yes I would buy this again !!
5.0
a year ago
Fatboy's Kustom
Borger tx
Verified
Mounted right up to my model a frame!
Would Recommend
Definitely a great product for a great price.
5.0
2 years ago
Chris
Tacoma, WA
Verified
Everything came as advertised. I like the resources Speedway has for installation info. I wish they had a bigger YouTube presence, but I also realize that with such a broad spectrum of products offered, there's no way they could cover it all.
Would Recommend
I would be repeat buyer
5.0
2 years ago
omd
lathrop ca
excellent !
This was not an easy job, but the parts were great.
5.0
2 years ago
G
London UK
Verified
Difficult to explain as this was a custom fit to eradicate another problem.
Would Recommend
I would buy again
5.0
2 years ago
Texas Ron
Texas
Verified
Mounted on a 1931 model A coupe. Looks great and easily bolted or welded to the boxed frame.
Would Recommend
Yes
5.0
3 years ago
Lou
Phoeinix
Verified
Always get the right parts
Would Recommend
I did buy this product twice .. worked both times
5.0
3 years ago
joe
wisconsin
Verified
good product , would buy again
Would Recommend
Showing 10 of 76 reviews
Fitment
Fitment
1928-1931 Ford Model A
1932 Ford Model B
1908-1927 Ford Model T
1928-1931 Ford Sedan Delivery
