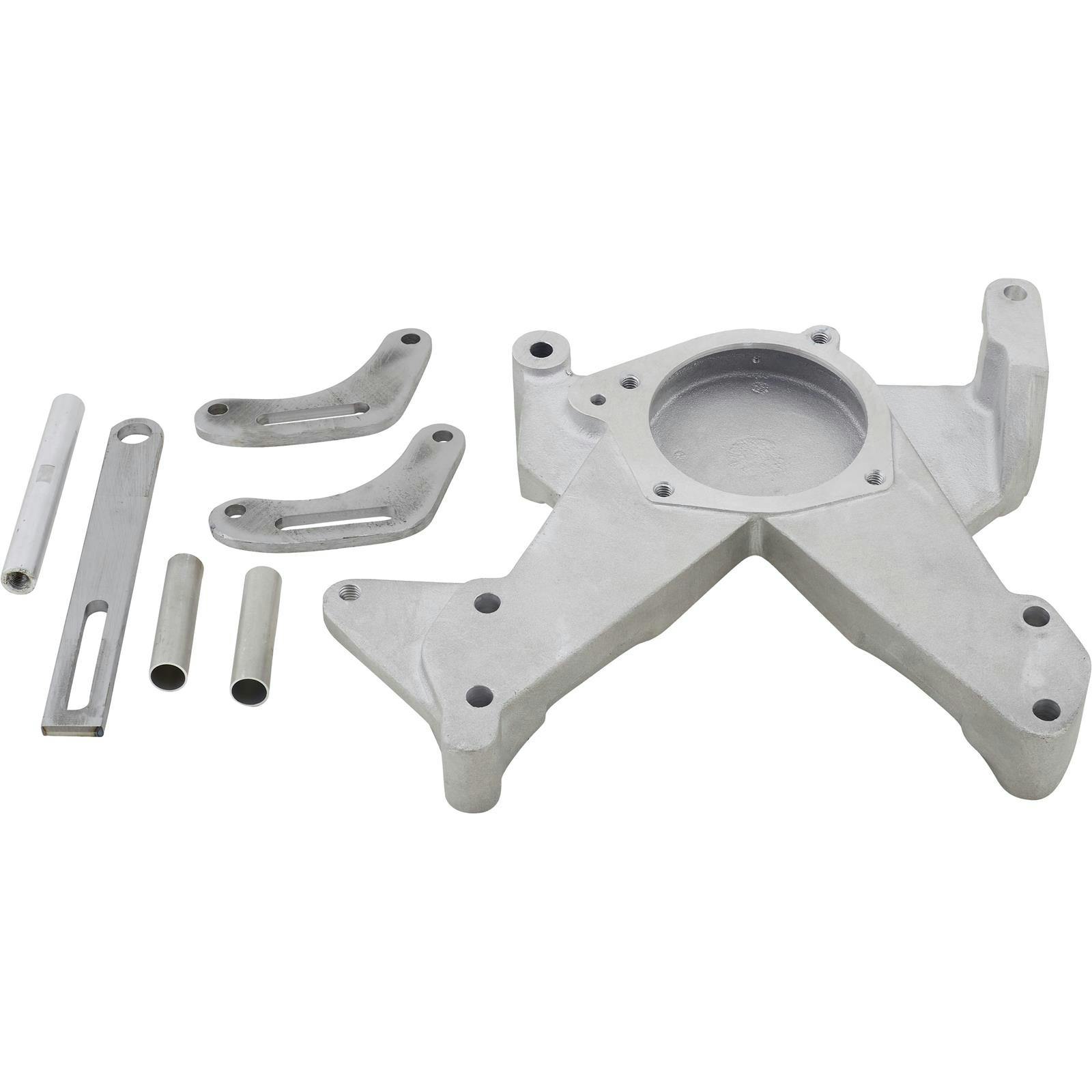

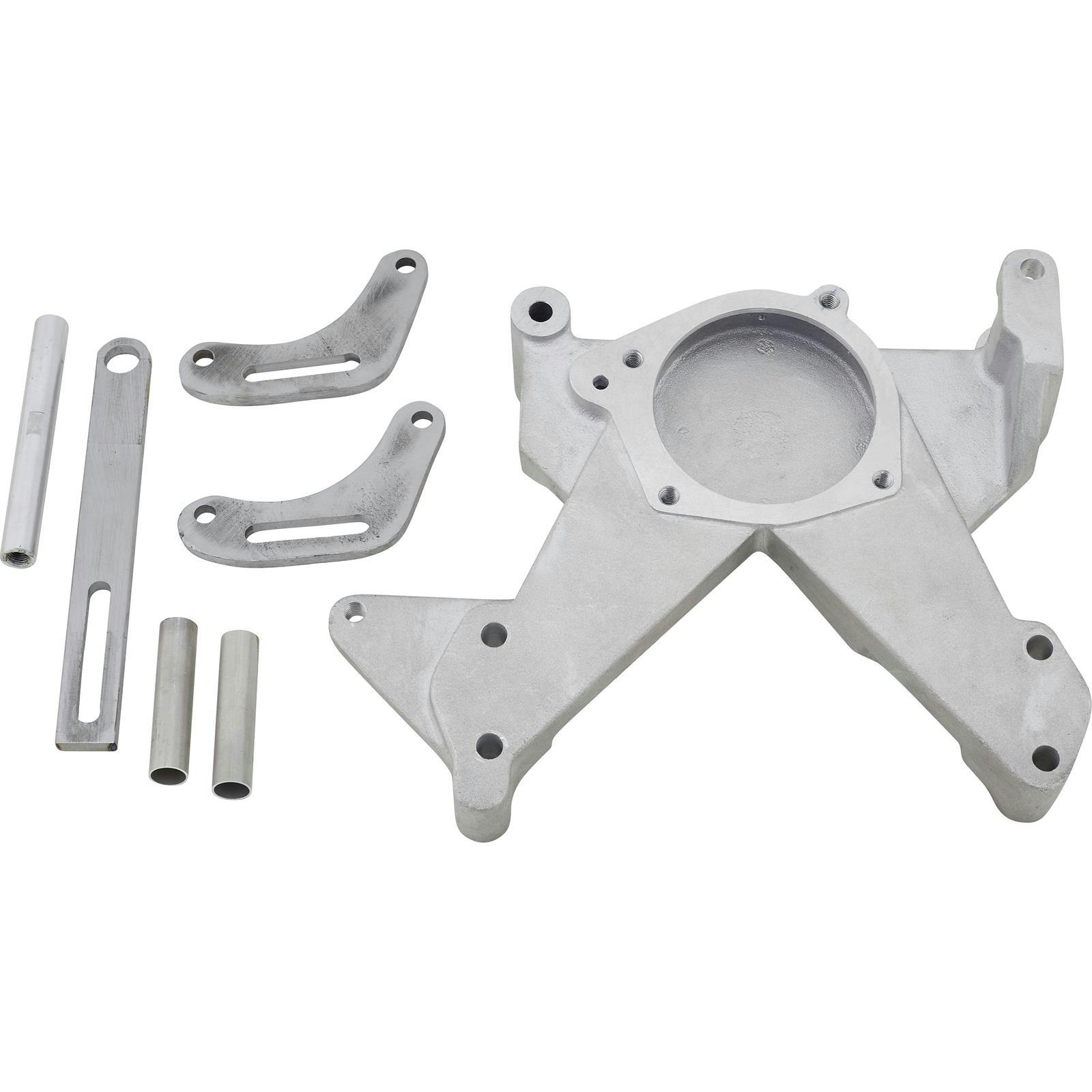

Zips Small Block Chevy Water Pump Riser

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Finish:
Natural
Gasket(s) Included:
No
Depth:
5.63
Notes
Raises the location of the water pump 5.00" higher in the engine bay. Includes brackets. Riser is 1.75" deep to pump mount surface. Water pump is 3.88" deep from mount surface to face of fan.
Zips Small Block Chevy Water Pump Riser

Click image to enlarge

Please note the following about this product:

  • This item is sold as a kit.

Details

Reviews (10)

Q & A (5)

What's in the Box

Info

  • Water pump riser solves the common problem of the fan being mounted too low on the radiator to be effective
  • Raises the pump and mechanical fan 5" higher in the engine compartment
  • Provides mounting surfaces for an A/C compressor and alternator
  • Riser housing comes with brackets and hardware
  • Water pump not included (use Chevy 250 L6 water pump)

910-2306 Instructions (PDF)

Learn more about using different water pump accessories to best fit your application by reading our tech article.  SBC - Short vs Long Water Pump.

Customer Reviews

Rated 4.6 out of 5 by 10 reviewers.
RATING BREAKDOWN
10 reviews
5 Stars
7
4 Stars
2
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

dont have one
Verified Purchaser
waynesboro pa

sbc h2o pump riser

August 09, 2016
nice installation but adjuster rod for ac comp was not detailed in the instructions.
Pros:
  • Nice Product
Cons:
  • Instructions For Adjuster
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Gossie
Verified Purchaser
Reading, Pa.

No more elect. fan issues!!!

June 01, 2016
Bolts ups just like a std pump> very simple set up!
Pros:
  • No More Elect Fans
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

fitnessguy
Verified Purchaser
british columbia Canada

mission accomplished

April 12, 2016
the zips unit gets the water pump and fan exactly where it needs to be on my 30 Ford coupe build!
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Hotrod rob
Verified Purchaser
Southampton pa

Really nice

January 13, 2016
This is really nice setup for putting a sbc in a model A ford chassis. The quality is very nice. I removed the bracket for the AC since I am not running AC. Bleeding the air out of the system is a real pain..I wound up using an air lift system. The 6 cly pump in my opinion is not up to snuff on engines with a lot of horsepower. I never had overheating problems until I installed an engine making 400hp. I like the riser and a mechanical fan, so my next step is to try a high volume 6 cyl pump. I still would recommend the riser, works best with lower hp engines.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Rocket
Verified Purchaser
Verified Reviewer
Redding, Ca.

Water pump riser

December 31, 2015
Solves the problem of a fan that is too low on the radiator core.Have seen them before, now have a project that needed one.Nice piece.
Pros:
  • Excellent quality
Cons:
  • high price
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Rod
Verified Purchaser
Verified Reviewer
South San Francisco

Zip riser runs a mechanical fan on small block Chevy

December 20, 2015
I bought three items: the Zip riser, Chevy 6 cylinder water pump and a shim kit. I had a Zip on a previous '32 roadster and it allowed me to raise the fan line about 5 inches, centering it in the radiator. I then used a flex fan and a shroud I made to make my 383 run cool in all weather. I like the idea of using a mechanical rather than an electric fan on an old school hot rod. I'm building a new '32 roadster and will use the Zip riser on it. I also like that the casting quality is good enough to clear coat to feature it, or paint it to subdue it. I like the built in alternator mount too. I'm not using AC so the AC mount won't be used. It's a good idea to drill a small bypass hole in the thermostat to let captured air escape. The Zip has a small screw at the top to bleed off captured air (a must). The screw is easy to drop and lose. A brass air bleed off valve is available from GM pt# 10070107. You will have to drill out the hole and tap it to 1/8"pipe thread.
Pros:
  • Nice Casting Quality
  • Gets Rid Of Electric Fan
  • Good Enough To Clear Coat
Cons:
  • Ac Hardware Is Crude
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Ratty32
Verified Purchaser
Glyndon, MN 56547, USA

Good problem solver

February 18, 2015
I bought this riser kit because I'm putting a small block chev in a 28 Model A, and the fan position is so low it almost hit the lower hose. I don't like electric fans on traditional rods, so the answer was to use the Zips riser to get it up about 5 inches. Worked perfect! I Don't expect any problems, although I haven't run it yet. Brackets are a little hokey, but they work. Good problem solver.
Pros:
  • moves fan up
Cons:
  • hokey brackets
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

OlDad
Battle Ground, WA 98604, USA

Water Pump adapter

September 29, 2013
What a great idea to increase cooling in a older vehicle when a small block Chevy engine is installed.
Pros:
  • allows use of manual fan
Cons:
  • may not work on all applications
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Kelleyc
Hoquiam, WA, USA

Solved a lot of problems

September 19, 2013
This product solved a lot of cooling problems because I didn't want to put an electric fan on a nostalgic old skool looking hot rod!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Pickup Man
Verified Purchaser
Athens, TN

Where's the directions?

March 28, 2012
The water pump riser serves its purpose perfectly and looks great. The accessories that came with the water pump riser are subpar. The brackets were pitted and tarnished, the spacers were very light weight and where are legible directions?
Pros:
  • Riser fits perfect
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

5 questions : 7 answers

2 answers

What is the finish on the riser? Does it come in a polished or chrome plated option? I am using a crate small block chevy in my truck. The center of the pump shaft now lies in the lower 1/3 of the radiator and this kit will solve my cooling problems. I know I can get a Tuff Stuff chrome plated water pump for this installation but the alternator and air-conditioning compressor are all polished or plated and I would like to stick with this theme.

BigDog1
West Virginia
October 04, 2014

What is the finish on the riser? Does it come in a polished or chrome plated option? I am using a crate small block chevy in my truck. The center of the pump shaft now lies in the lower 1/3 of the radiator and this kit will solve my cooling problems. I know I can get a Tuff Stuff chrome plated water pump for this installation but the alternator and air-conditioning compressor are all polished or plated and I would like to stick with this theme.

Answers

February 19, 2015
Ratty32
Mine came rough cast aluminum. I'm sure you could polish it if you want to put the time in.
October 06, 2014
EricM
This riser is cast aluminum. Sorry we do not offer it in a polished or chrome plated version. It could certainly be polished if a person wanted that look.
2 answers

Will using the Zips water pump riser w/the 6cyl. water pump change the distance between water pump hub and radiator, if so how much and which direction?

Rick
Canton, GA
July 30, 2012

Will using the Zips water pump riser w/the 6cyl. water pump change the distance between water pump hub and radiator, if so how much and which direction?

Answers

September 30, 2013
OlDad
No it will not change the pump to radiator distance.
August 01, 2012
John
From the block surface out with the Zips riser and suggested pump the fan hub face is 5 5/8” from the block which is suggested dimension for the short small block water pump.
1 answers

Currently my alternator is mounted low on the left side. Can I leave it there and not use the supplied brackets? No air or power steering.

Art
San Diego, Ca
July 17, 2015

Currently my alternator is mounted low on the left side. Can I leave it there and not use the supplied brackets? No air or power steering.

Answers

July 20, 2015
Zach
Expert
Yes you can keep your alternator mounted down low without it interfering with this high mount water pump.
1 answers

I need a replacement for the bleeder valve at the top of the riser. Where do I get one and what are the specs. Thanks, Jim

Jim
Tyler, Texas
August 20, 2015

I need a replacement for the bleeder valve at the top of the riser. Where do I get one and what are the specs. Thanks, Jim

Answers

August 20, 2015
Eric
Expert
The replacement bleeder valve is AC Delco part number 10070107 or Dorman 902112. Sorry we do not offer that item but a local auto parts store should be able to get one for you.
1 answers

I want to put this riser on my build but need to know if it will work with a power steering pump. Not sure what pump i will end up using it needs to be located above the lower pulleys, was think of the type 2 pump mounted on the head.

Tony
lake forest, CA
September 20, 2016

I want to put this riser on my build but need to know if it will work with a power steering pump. Not sure what pump i will end up using it needs to be located above the lower pulleys, was think of the type 2 pump mounted on the head.

Answers

September 22, 2016
John
Expert
The water pump riser will put the alternator and A/C compressor above the water pump ports with similar configuration of 91667919 as the photo on our website illustrates. Use of head mount bracket 91032904 and pump 91032906 will likely work as long as your application does not have interference with the normal pump location when head mounted.
Page 1 of 1
