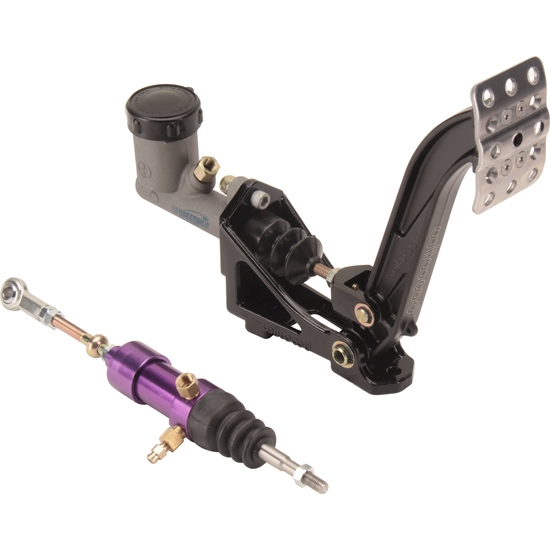

Speedway Hydraulic Clutch Floor Mount Pedal Kit

Floor Mount Clutch Pedal

This lightweight aluminum floor mount pedal assembly from Wilwood mounts a single brake or clutch master cylinder in the forward position outside the firewall. This pedal assembly features a high strength reinforced I-Beam style forged 6:1 ratio pedal arm and non-skid waffled pedal pad that can be laterally adjusted for your preference or clearance. This pedal will accept any Wilwood vertical mount flange single or tandem outlet master cylinder.

• Lightweight aluminum frame
• 6:1 ratio
• Floor mount

Clutch Master Cylinder

• Lightweight, space-saving alternative to full size master cylinders
• Fits popluar clutch and small brake applications
• 3/4" Bore
• 3/8"-24 inverted flare fitting included
• 1.4 oz. reservoir
• 5/16"-24 thread pushrod

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.

Pull-Type Clutch Release Slave Cylinder

Speedway pull type slave cylinder with 7/8" bore for clutch use. Works great with stock-style hydraulic throwout bearings or Ram Couplers. Has a 3/8"-24 inverted flare female inlet. Bleeder adapter and bleeder are included.

• Ram shaft is 3/8" O.D.
• Cylinder body is 4.09" long
• Cylinder body is 1-7/16" O.D. at end by fittings
• Cylinder body is 1-3/8" at opposite end of fittings

5/16-24 RH Female Heim End

Standard rod ends are for general purpose applications and are a 2-piece design with a low carbon steel body and a hardened steel ball without a race (metal to metal contact).

Included in this kit:

(1) Floor Mount Clutch Pedal - 83534013833

(1) Master Cylinder - 91025680

(1) Pull Type Slave Cylinder - 91025604

(1) Standard Heim 5/16" Female - 1750202

Pedal Installation Instructions(PDF)
