Single Remote Oil Filter Bracket, Vertical Outlet, 13/16-16 Thread

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Finish:
Polished
Mounting Thread Material:
Steel
Thread Pitch:
13/16"-16
Outlet Fitting:
1/2" NPT

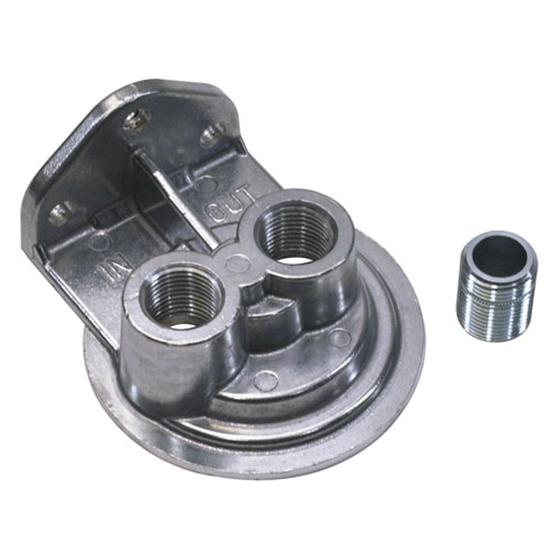

Single Remote Oil Filter Bracket, Vertical Outlet, 13/16-16 Thread

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Aluminum remote oil filter bracket with vertical hose inlet/outlet. Has 1/2" NPT female hose inlet/outlet threads. This oil filter relocator is used with Chevy filters with 13/16"-16 thread (AC Delco PF35, PF932 or Fram HP4 filters).

  • Aluminum
  • Vertical hose inlet/outlet
  • 1/2" NPT female hose inlet/outlet threads
  • Spin-on type element
  • Chevy filters with 13/16"-16 thread

Three items are needed for a remote oil filter assembly:

  1. Choose a remote oil filter bracket.
  2. Choose a remote bypass adapter to replace your oil filter.
  3. Choose a hose kit to connect the bypass adapter and oil filter bracket.

Item Details

Accepts 13/16"-16 Chevy spin-on oil filter

Customer Reviews

Rated 4 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
0
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

BernieG
Verified Purchaser

Nice, quick shipping

July 15, 2014
First time I dealt with Speedway. Super quick, picked almost immediately after receiving order. Quick delivery. Product was good, nicely machined. Adapter increases base size. Uses O-ring, seems to fit well. Not too sure I'm thrilled by the o-ring on the engine side.
Pros:
  • Good product
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

.
Verified Purchaser
Beverly Hills, Michigan

Nice Product!

March 01, 2011
This adaptor is used to replace the old style beehive oil filter on Chevy six cylinder motors. The expense is quickly recovered in the savings on filter replacements and easy accessibility to replacement filters. Also, the adaptor improves oil filteration by over 200% Mounting the adaptor on the frame requires flexible oil lines.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

1 answers

what size are the hose connections for this item?

December 14, 2011

what size are the hose connections for this item?

Answers

December 14, 2011
Jason
The inlet and outlet are 1/2" NPT
1 answers

Can this item be mounted with the inlet and outlet to the bottom instead of the top? Other than mess when changing filter, would it affect the operation? Thanks, Lee

Lee
Broken Arrow, OK
July 05, 2015

Can this item be mounted with the inlet and outlet to the bottom instead of the top? Other than mess when changing filter, would it affect the operation? Thanks, Lee

Answers

July 06, 2015
Eric
Expert
Yes you could mount the filter pointing upward but you would have to use an oil filter with a built in check valve so that the filter does not drain when the engine is shut off.
Page 1 of 1
