SSBC A1726 Universal Adjustable Master Cylinder Pushrod Kit

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Zinc
MFG. Part #:
A1726
Garage Sale:
No
Thread Length:
4.00
Notes
Sets up in 10 different configurations.

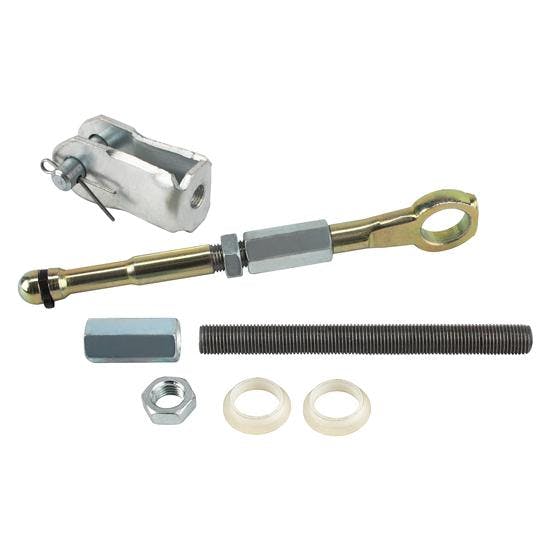

SSBC A1726 Universal Adjustable Master Cylinder Pushrod Kit

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Pushrod kit includes adapters for 10 common push rod configurations. Accommodates eyelet, clevis and bell crank style pushrod setups. Works with both power and non-power brake systems.

  • 3/8" threaded coupler, female threads RH on both ends, 1-1/8" long, 1/2" hex
  • Manual adjuster, M/C pushrod, 3-3/8" overall length, 7/8" of male 3/8" threads
  • Eye ring assembly is 3" overall length
  • 2.64" end of 3/8" female threads to center of eye
  • Dia. of eye is 0.640" and includes plastic insert halves for both sides (0.550" ID)

910-01726 Instructions(PDF)

Customer Reviews

Rated 5 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
3
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Onechevyfan99
Verified Purchaser
Florida, USA

Exactly what you need!

July 15, 2014
This kit is very nice, high quality, and worked out great for the custom application on my 54 chevy. Thanks SSBC and SPEEDWAY. Great product, great service, fast shipping, cant ask for anything more!!!!
Pros:
  • super versatile
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

ranbo
Verified Purchaser
Mukwonago wi.

Worked very well for my application.

July 07, 2014
This product was very simple to install,had all the needed parts to complete my application.Very pleased.Thanks.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Southpaw
Verified Purchaser
Deerfield Beach, FL

Just what my new brake system needed

October 17, 2011
Upgraded '65 Falcon Ranchero to front disk brakes. Needed a large bore master cylinder to push enough fluid to the calipers. The original factory push rod left a fully bled system with a pedal on the floor. The new pushrod allowed me to make this adjustment as needed. Worked out just fine. High and hard pedal now.
Pros:
  • Universal application
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

Will this fit a Raybestos 36440 master cylinder for a '74 mustang? I need to lengthen the master cylinder push rod on a kit car with a '74 mustang chassis. The master cylinder is a Raybestos 36440

Gazelle
Baton Rouge
May 22, 2014

Will this fit a Raybestos 36440 master cylinder for a '74 mustang? I need to lengthen the master cylinder push rod on a kit car with a '74 mustang chassis. The master cylinder is a Raybestos 36440

Answers

May 23, 2014
EricM
We offer a couple different options on extending the master cylinder push rod. This kit offers multiple styles of hook ups and works with most pedals and master cylinders. Also we offer 3 different push rods all with 3/8” thread that can be used as extensions. Part number 91031520, 91031522, and 91031524.
1 answers

What is the diameter of the ball end that goes into the master cylinder?

Mustang521
April 09, 2013

What is the diameter of the ball end that goes into the master cylinder?

Answers

April 10, 2013
Jason
The ball is .450" in diameter on the universal adjustable master cylinder pushrod kit
1 answers

will this pushrod kit work with the 7 inch dual diaphragm booster (part # 910-31432) ?

WildBill
Tucson, AZ, USA
November 20, 2012

will this pushrod kit work with the 7 inch dual diaphragm booster (part # 910-31432) ?

Answers

November 21, 2012
Jason
The kit could be used to lengthen or adapt to different connections but we don’t recommend removal of the existing push rod from the booster.
Page 1 of 1
