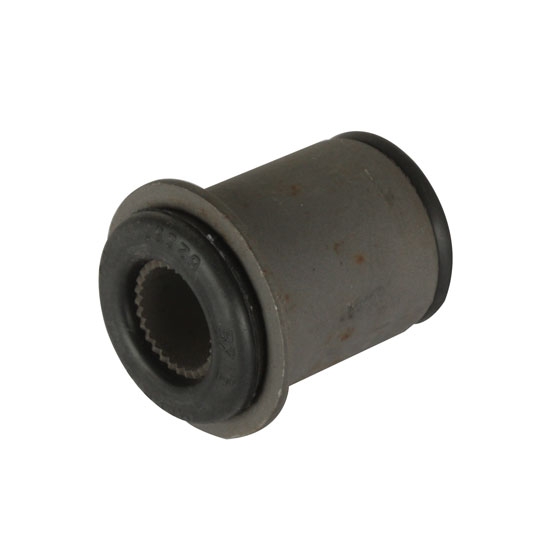

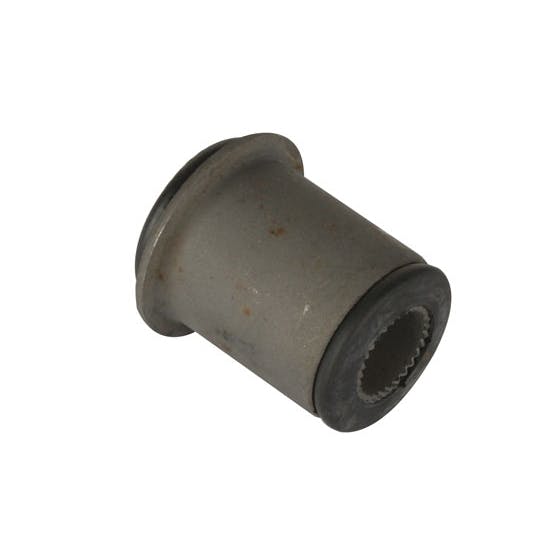

Replacement Tubular Mustang II Lower Control Arm Bushing

Specs
Material Type:
Rubber
Overall Length:
1.85
Sold in Quantity:
Each
Finish:
Natural
Inside Diameter:
.63
Outside Diameter:
1.29
Flange Diameter:
1.61
Notes
Used with our tubular non-strut style lower Mustag II/Pinto control arms.
Replacement Tubular Mustang II Lower Control Arm Bushing
Replacement Tubular Mustang II Lower Control Arm Bushing
Replacement Tubular Mustang II Lower Control Arm Bushing

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

This is a replacement rubber bushing used with our tubular non-strut style lower Mustang II/Pinto control arms.

Works with control arms:

  • 910-34322
  • 910-34334
  • 910-34335
  • 910-34336
  • 910-34337
  • 910-34338
  • 910-34339

Specs


Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

MIKE731
Verified Purchaser

Exactly what i ordered

February 23, 2015
Used for an application other than intended. Worked perfectly.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

1 answers

what are the dimensions please and do you sell upper bushings I have unknown mustang II tubular control arms

kennancy
Port Charlotte, FL, USA
October 02, 2013

what are the dimensions please and do you sell upper bushings I have unknown mustang II tubular control arms

Answers

October 02, 2013
Jason
This replacement control arm bushing has the following specs: Overall Length : 1.85 " Inside Diameter : .63 " Outside Diameter : 1.29 " Flange Diameter : 1.61 " Material Type : Rubber Speedway offer bushing part #91034329 for tubular upper control arm, it has a width of 1.665", od of 1.20" and id of .625".
1 answers

Will these bushing fit Heidts tubular lower control arms?

stinky
November 21, 2012

Will these bushing fit Heidts tubular lower control arms?

Answers

November 21, 2012
Jason
The Heidt’s bushings are slightly different and you will need to contact Heidt’s direct for replacement bushings. We apologize for the inconvenience
