#9101124
Speedway Power Remote-Mount Electric Emergency Brake Kit
- This power emergency brake kit makes it easy to activate your emergency brake with a push of a button
- Mounts in a remote area of your vehicle and allows you to remove those unsightly brake handles
- One touch push button operation will activate and deactivate your emergency brakes with ease
$583.99
/each
In Stock
Order soon, only 1 left in stock!
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 19.06" Overall Length
- This power emergency brake kit makes it easy to activate your emergency brake with a push of a button
- Mounts in a remote area of your vehicle and allows you to remove those unsightly brake handles
- One touch push button operation will activate and deactivate your emergency brakes with ease

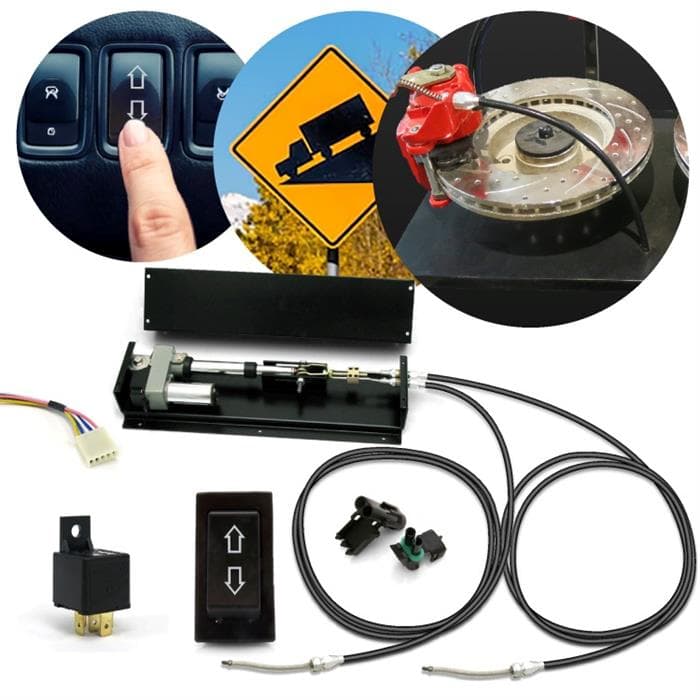

- Kit comes complete with cables, cable yoke, switch and relay to simplify installation
- Comprehensive step by step instructions are included for your convenience
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9101124 Details
Speedway Motors 9101124 Details
Simple Self-Contained Automatic Solution.
Our automatic emergency brake kit is unique because it is self-contained and easy to install. This means you won’t have to deal with the fuss of mounting extra external cable mounts that only add more failure points.
Our all metal weatherproof housing contains a powerful 200 lb adjustable actuator and all of the cable connections in one easy to mount unit. This translates to an easier installation and fewer failure points exposed to the elements.
FEATURES
- Push Button Operation
- Momentary Rocker Switch
- Smart Phone Compatible (With Additional Parts)
- 2x 8 ft Heavy-Duty Cables
- Adjustable Cables
- 200 lb Pulling Capacity
- Adjustable Actuator
- Safety Circuit
- 12V
- 10A / 6A Amp Draw
- Hot or Direct to Ignition Wiring
- 40 Amp Relay Included
DIMENSIONS
- Length = 19.5in (49.53cm)
- Depth = 3.5 in (7.62cm)
- Width (top of box) = 4.5 in (11.43cm)
- Base Width (with flange) = 6 in (15.24cm)
Charts
910-1124 Instructions (PDF)
Guides & Documents
Speedway Motors 9101124 Specifications
Speedway Motors 9101124 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9101124 |
| Brand | Speedway Motors |
| GENERAL | |
| Overall Length | 19.06" |
| Overall Width | 6.00" |
| Overall Height | 3.13" |
| Cable Length | 90.00" |
| Notes | Includes actuator, cables, and switches. |
| Sold in Quantity | Kit |
Ratings & Reviews
3.2
18 Reviews
Customer reviews indicate our product's main qualities as ease of installation, quality of individual components, and performance. Positive feedback focuses on the convenience of removing floor clutter, simple installation process, and quality in use. A few customers faced some challenges with adjusting cables on the unit, thin bending metal, and some mismatched components. However, many showed favorable comparisons to competitors, praising our product's usability, practicality, and quality. Those with mechanical aptitude found the installation process more manageable, and under the right circumstances, the product works effectively and satisfies the user's needs. Yet, be aware that there are some inconsistent sentiments regarding product quality and utilization. Overall, customer recommendations lean towards a positive view, valuing its particular features and functionality.
Ratings & Reviews
3.2
18 Reviews
Customer reviews indicate our product's main qualities as ease of installation, quality of individual components, and performance. Positive feedback focuses on the convenience of removing floor clutter, simple installation process, and quality in use. A few customers faced some challenges with adjusting cables on the unit, thin bending metal, and some mismatched components. However, many showed favorable comparisons to competitors, praising our product's usability, practicality, and quality. Those with mechanical aptitude found the installation process more manageable, and under the right circumstances, the product works effectively and satisfies the user's needs. Yet, be aware that there are some inconsistent sentiments regarding product quality and utilization. Overall, customer recommendations lean towards a positive view, valuing its particular features and functionality.
3.2
18 reviews
5
6
4
4
3
2
2
0
1
6
Most Liked Positive Review
4.0
I would buy this again
I was surprised by the quality after reading the other reviews. I wish I had done more research of the product prior to buying this one. I wanted a push button switch to match my start button. This one came with an on off rocker switch and all of the wiring and harness. I had to purchase an additional control motor box and the push button switch. There is another remote mount emergency brake kit that has all of the parts I ended up buying included in it. I ended up with the same thing it just took a while longer. If you have mechanical ability it's easy. No instructions are included however they are on the website next to the part when you order. If you would be happy with the rocker switch I would buy this every time. The included cables can be shortened and I did with no problem.
Most Liked Negative Review
1.0
do not buy

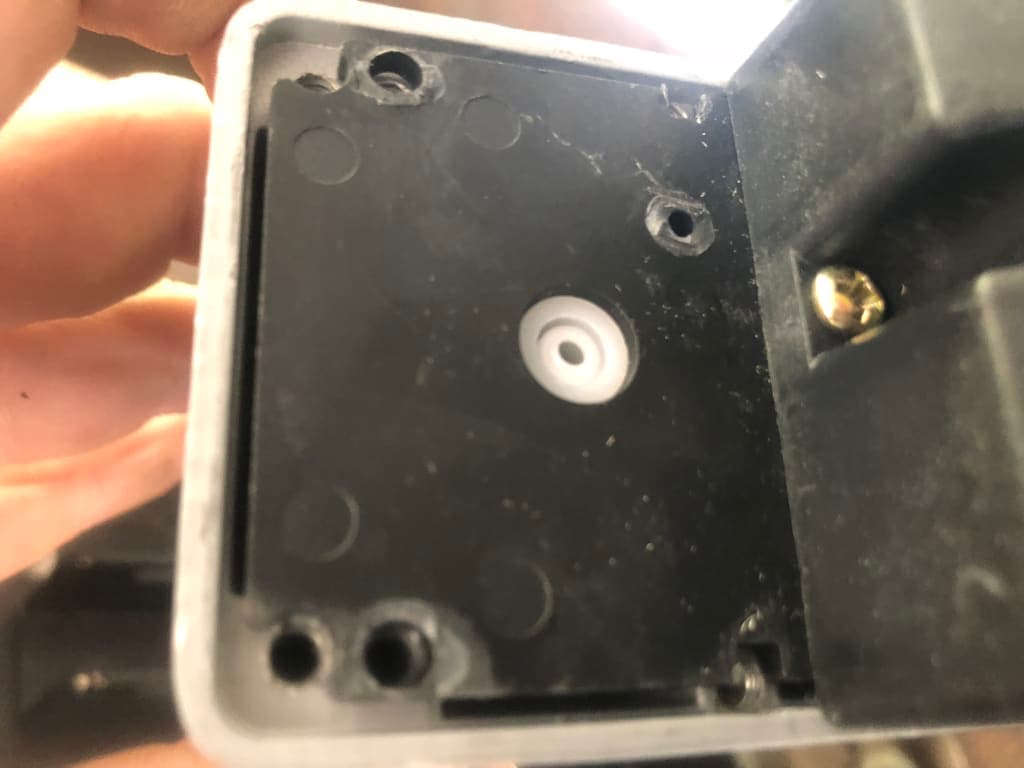

The holes in case had to be drilled out. did not match the bolts that was supplied. The spacer is to thick. Held the motor to high and case could not be closed. The electrical schematic does not show what wire goes where on the switch. Schematic shows 5 wire switch but I received a 6 wire switch. Speedway tech support was totally helpless. Tech support that came with the direction is only voice mail. never received a call.
Filter by Ratings
Self contained unit
4.0
17 days ago
DM
Omaha
Verified
Like how it's compact and self contained. Did call manufacturer and purchase parts to upgrade to the pushbutton control. Speedway motors needs to sell the E-Brake Pro+ model, it has the push button control that stops the actuator before it overloads. Not just a rocker switch.
Would Recommend
I would not buy again.
1.0
27 days ago
Doug
Mt Shasta,ca.
Verified
The assembly directions are very poor at best,even online. I've got parts not sure where they go. No plug for back of relay. I'd send it back but not worth the return effort.
Would Not Recommend
I would purchase this product again
5.0
3 years ago
Skidmark
East Texas
I've had this system for about six years, it has basically been flawless, anyone that complains about it pulling apart or not lining up in my opinion is going to be the quality of their mechanical abilities, the only thing that I can complain about is the rocker switch, If you do not have your cables adjusted properly it will not tighten completely or release, but that is not because of the unit that is strictly on the installers ability.
Would Recommend
Yes I though it had the best set up of the units I looked at
4.0
5 years ago
Chuck
Harrodsburg ky
Verified
Not installed yet
Would Recommend
Some modifications required
3.0
5 years ago
Dorrie
Oklahoma City
Verified
The metal is thin and bends. We had to reinforce it.
Buy the E-stop kit
1.0
7 years ago
Lone star street rod
Bryan Texas
Verified

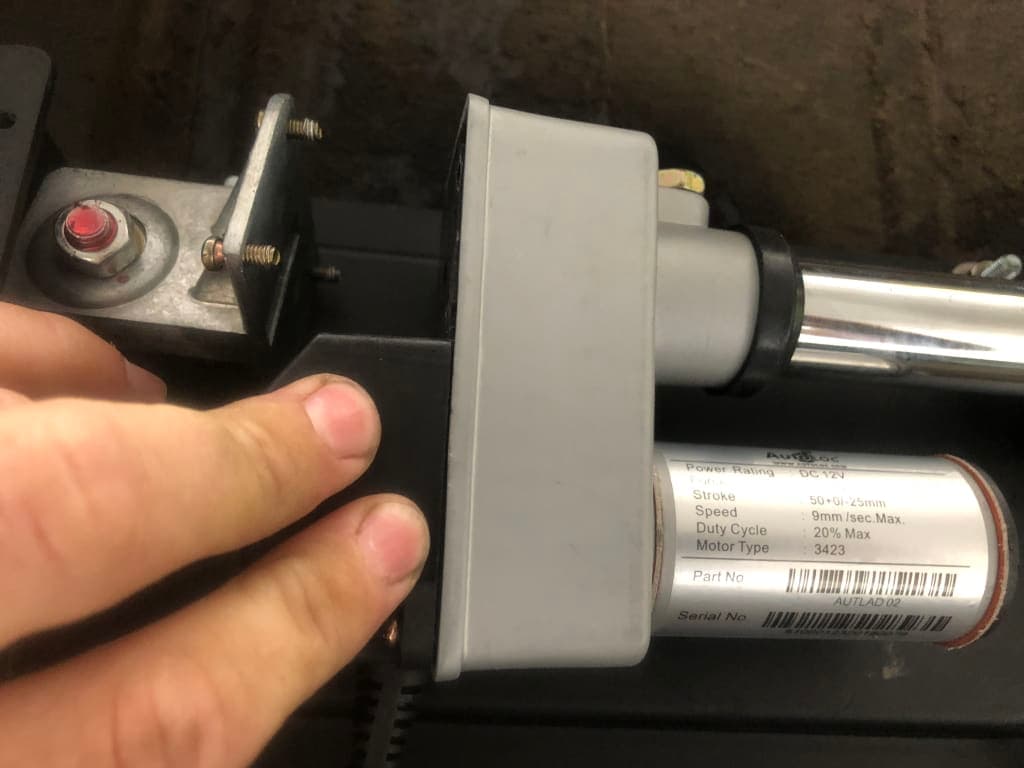

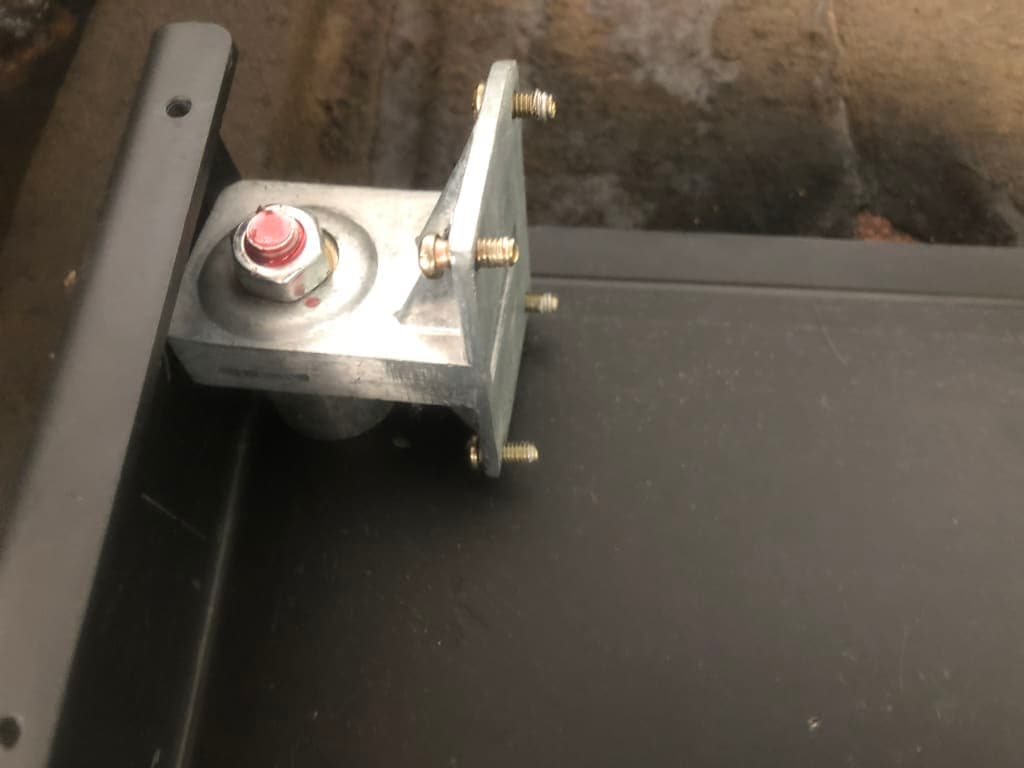

I've installed both the E-stop and this kit and the E-stop is well worth the extra money. The actuator on this kit was never designed to pull and the mount plate is held in place with 4 #6 screws that will pull right out of the cheap pot metal housing when put under a load. The gears inside the actuator are plastic and to adjust the actuator you have to totally remove it from the mount plate and disassemble the housing to access the adjustment cam. If you don't have the parking brake cables adjusted just right you will pull the screws out of the housing or strip the plastic gears. The E-stop kit is a simple one button push that will only pull to a certain load, this kit has a forward and reverse switch that can leave the cables not pulled tight enough or not fully released. I've built cars for over 18 years professionally and I have been a loyal Speedway motors customer since day 1. This has to be the first product from Speedway motors that I have had to truly shake my head at and give the engineers a thumbs down.
Would Not Recommend
Works perfectly!
5.0
7 years ago
TW
FLORIDA
Verified
Easy to install. Found directions online.
Would Recommend
Easy installation and connection to power circuitry.
5.0
7 years ago
Greg
Liberty Hill, Texas
Verified
The use of a power parking brake makes the installation very simple for a switch and LED in the console rather than the older ratchet style parking brake.
Would Recommend
Great product
5.0
7 years ago
Odin
San Tan Valley AZ
Verified
Used on 59 apache. works great
do not buy
1.0
10 years ago
kgk
Boise, Idaho
Verified
The holes in case had to be drilled out. did not match the bolts that was supplied. The spacer is to thick. Held the motor to high and case could not be closed. The electrical schematic does not show what wire goes where on the switch. Schematic shows 5 wire switch but I received a 6 wire switch. Speedway tech support was totally helpless. Tech support that came with the direction is only voice mail. never received a call.
Would Not Recommend
Showing 10 of 18 reviews
