Park-Lok Hydraulic Brake

SAME DAY SHIPPING! Order within the next 1 hour 32 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Overall Height:
3.25
Overall Width:
1.00
Overall Length:
2.00
Sold in Quantity:
Each
Finish:
Anodized
Outlet Fitting:
1/8" NPT
Garage Sale:
No
Notes
Arrow on the body points toward the outlet (away from M.C.).

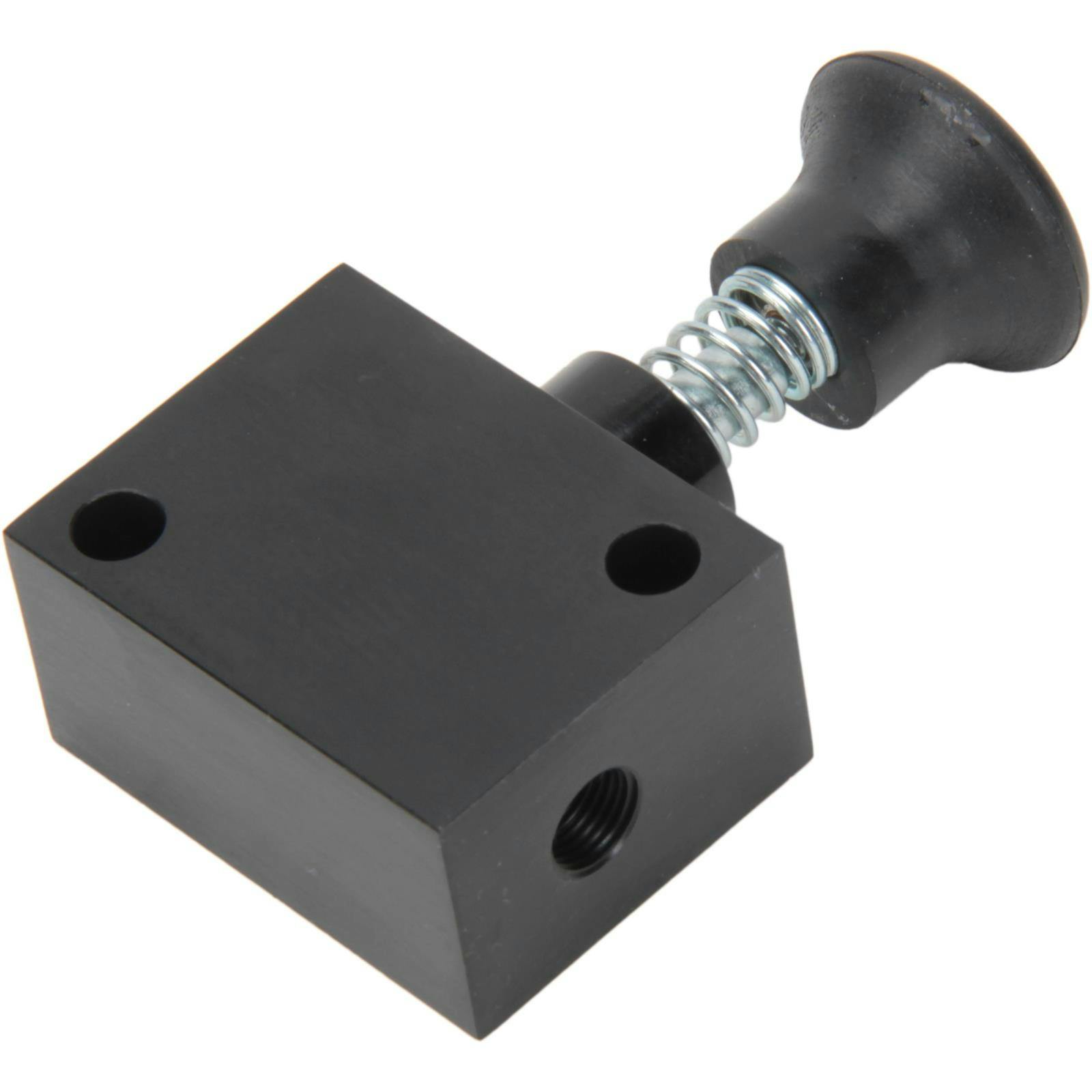

Park-Lok Hydraulic Brake
Product Video
Park-Lok Hydraulic Brake

Click image to enlarge

Watch the video below to learn more about the differences in brake lines, flare types and fittings you may want to consider before plumbing away on your current chassis project.

Details

Reviews

Q & A

What's in the Box

Hydraulic line pressure keeps brake secure. No special linkage. Not recommended for use with silicone brake fluid or as an emergency brake. Features 1/8" NPT female on inlet/outlet.

Device is generally used to lock the rear brakes. To set the lock, step on the brakes, push the lock knob down, and take your foot off the brake. To release the lock, step on the brake again slightly harder than before and it will release automatically.

Warning:This is not compatible with any silicone brake fluid.

Hydraulic Parking Brake Instructions (PDF)

Customer Reviews

Rated 3.1 out of 5 by 8 reviewers.
RATING BREAKDOWN
8 reviews
5 Stars
3
4 Stars
1
3 Stars
1
2 Stars
0
1 Star
3
RECOMMEND THIS PRODUCT:

Don
Verified Purchaser
Conway NH

Found park brake would not release

June 18, 2015
would not release when you step on brake had to remove it
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

leadfoot
florida

O ring failure or missing

October 13, 2014
This situation puzzles me. I have installed several of these locks in the past. However, in this case, after installing line lock, I applied normal brake pressure as a test. Brake fluid immediately began to gush from the stem seal, creating a real mess. Either the O ring instantly failed or was not installed during the manufacturing process. It created quite the mess as you might imagine. My guess is that this is an unusual defect created at the manufacturer. A little quality control is in order. Go Army. Thank you.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

Speedway Motors Customer Service team has issued this customer a replacement for the Park-Lok Hydraulic Brake. We apologize for the inconvenience and are always happy to help in any way that we can!
schwikes

This product is horrible!!

August 06, 2014
well i bought this park lock since my jamar park lock started to leak fluid out the front seal where you push the plunger in! mind you i used the thing 10 maybe 12 times so i figured id try another brand park lock well this one seems to leak past every seal possible so in the trash it goes!
Pros:
  • works when it wants to
Cons:
  • leaks
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

Speedway Motors Customer Service team has issued this customer a refund for the defective unit received. We apologize for any inconvenience this may have caused and are always happy to help.
william56
Verified Purchaser
Kansas City, MO, USA

Junk

May 31, 2014
I tried to save money with this line lock but that was a mistake. Maybe I just got a defective one, but it didn't work at all. It actually worked one time and then after that it acted like a check-valve and locked every time I pushed the brakes--rather scary! Note, I did NOT have it installed backwards. Also, I found virtually no documentation or support. I wound up pitching the thing in the trash and buying a better quality lock.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

Speedway Motors Customer Service team has issued this customer a refund for the defective unit received. This review has been passed along to our QC team to record and inspect the issue with this product. We apologize for any inconvenience this has caused and are always happy to help.
Flash01
Kansas City, MO, USA

easy to install works great

December 25, 2013
I have had one for several years on a manual transmission vehicle and have never had an issue. If too much pedal pressure is applied only way to release is to bleed pressure by opening one of the bleed valves on a wheel cylinder
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Hot Rod Bill
Verified Purchaser
Jacksonville FL.

I would buy this product agian

October 08, 2011
Very neat product. I installed one on my 1930 street rod and it works very good. Mounted next to my shifter with just the ball sticking out of the floor for a real clean look.Very easy to set in this location.
Pros:
  • No Fade
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Mystique racing
Verified Purchaser
El Paso, Tx.

Not sure

August 31, 2010
using for hydraulic parking brake for Rat Rod not hooked up yet but very easy to install. I LIKE
Pros:
  • Compact
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Money Pit Jeep
Sherman, Tx

Works good

March 30, 2010
It looks good and seems to work well. I haven't really put it to the test yet but I think it'll do well. The only thing I don't like is that there is less movement of the knob than I expected. I expected the the throw of the knob to be roughly 3/8" - 1/2" but it can only be pushed in about 1/4" so it's hard to visually tell whether it's pushed in or not.
Pros:
  • Easy Installation
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 3 answers

1 answers

PARK-LOK MOVEMENT I have not installed the Park-Loc yet but am concerned that there is so little play in the up and down position of the control. No coil bind but will only move up and down a 1/16th of an inch or less. Should I put some brake fluid in and see if it frees up or ? Mel

OFWG
Azusa, CA, USA
December 07, 2013

PARK-LOK MOVEMENT I have not installed the Park-Loc yet but am concerned that there is so little play in the up and down position of the control. No coil bind but will only move up and down a 1/16th of an inch or less. Should I put some brake fluid in and see if it frees up or ? Mel

Answers

December 09, 2013
EricM
This Park lock commonly has about ¼ to 3/8” of travel for engagement. If yours is limited to 1/16” you may try a little brake fluid like you mentioned to free it up and if still to that limit of travel please contact our customer service department.
2 answers

Can this be hooked up to front wheel disc brakes with a single stage master cyl. with no booster and be compatable with dot 3 brake fluid?

slowrider283
kingston Ma.
July 25, 2011

Can this be hooked up to front wheel disc brakes with a single stage master cyl. with no booster and be compatable with dot 3 brake fluid?

Answers

September 05, 2013
ejr1951
Yes
July 27, 2011
John
This Park Lok generally is installed in the line going to the rear brakes for easier access but can be installed and used on either the front or rear brakes. No specification is made for a particular master cylinder and the unit can be used with Dot 3 or 4 brake fluid but is not compatible with silicone brake fluid.
Page 1 of 1
