Nostalgia/Deluxe Bare Model T Frame

SAME DAY SHIPPING! Order within the next 17 hours 56 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Natural
Garage Sale:
No
Notes
1.50" x 3.00" tube rails. Includes front spring perch only.

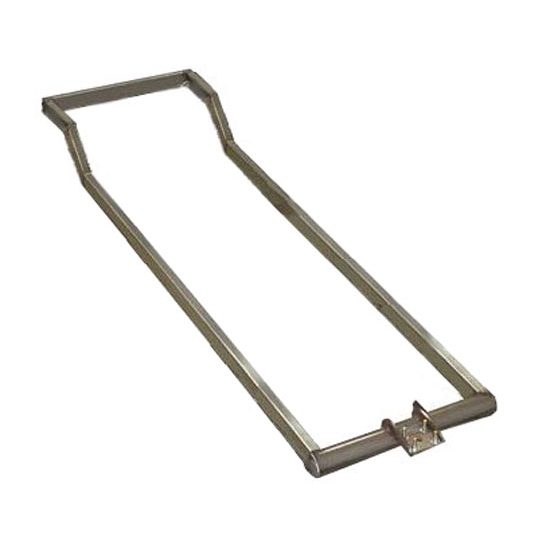

Nostalgia/Deluxe Bare Model T Frame
Product Video
Nostalgia/Deluxe Bare Model T Frame

Click image to enlarge

Watch the videos below to learn more about Speedway Motors T-Bucket body styles and configurations, general assembly and the completed project.







Please NOTE the following about this product:

  • Item 7154200 is made to order. We will ship it from our warehouse when it is produced.

Details

Reviews

Q & A

What's in the Box

These are great for the do-it-yourself fabricator and builder. These are the same frames as our frame assemblies, but have no suspension or steering mounts installed. You can build your own or adapt components you acquire separately.

  • 1-1/2" x 3" rectangular steel tube rails
  • 3" O.D. round tube front crossmember
  • Designed for spring-behind front axles
  • Front perch accommodates 1-3/4" wide spring

If you wish to add engine/suspension/steering mounts to your frame, simply purchase these items along with your frame.

This product requires a 3-4 week build time.

23 Nostalgia Chassis Exploded View (Link)

23 Deluxe Chassis Exploded View (Link)

Item Details

w/ Front Spring Perch only

Customer Reviews

This product has no reviews.

Product Q&A

10 questions : 10 answers

1 answers

Can you tell me the approximate cost of adding the suspension and steering box mounts to this chassis?

gladeparkflyer
grand jct, co.
February 23, 2015

Can you tell me the approximate cost of adding the suspension and steering box mounts to this chassis?

Answers

February 23, 2015
EricM
You would be looking for a frame kit since you want the suspension components also. See these kit part numbers: 7151000 - Basic T frame kit 7151200 - Nostalgia T frame kit 7151400 - Deluxe T frame kit
1 answers

frame length and rear spring mounting What is the chassis length? Could this be ordered with the upper spring cups used on the budget chassis? Thanks

deathTOsmoochie
Chicago, IL, USA
April 12, 2014

frame length and rear spring mounting What is the chassis length? Could this be ordered with the upper spring cups used on the budget chassis? Thanks

Answers

April 14, 2014
EricM
We apologize but this Nostalgia/Deluxe frame cannot be ordered custom with the coil spring buckets installed. We do offer the basic coil spring kit number 91649020 with the coils and both the upper and lower mounts. Or we have just the upper mounts as part number 91645100. We also have the full kit with radius rods and panhard bar kit under number 91649021. The frame length on the Nostalgia/deluxe is 95”.
1 answers

Bad frame rail Hello I purchased a 1923 bucket T from a friend that has a damaged frame rail. Do you sale a replacement rail for this bucket T or do I have to buy a whole new frame to get the frame rail I need to make the repair? Thank You Ron

1970hawkeye
Knoxville, IA 50138, USA
April 09, 2014

Bad frame rail Hello I purchased a 1923 bucket T from a friend that has a damaged frame rail. Do you sale a replacement rail for this bucket T or do I have to buy a whole new frame to get the frame rail I need to make the repair? Thank You Ron

Answers

April 09, 2014
EricM
We apologize but we do not offer individual parts of our T bucket frames. You may want to try your local metal supplier for 1 1/2" x 3" rectangular tubing.
1 answers

Mounts for 4.6 Mod motor It's starting to look like my donor vehicle will be a cop car. Can mounts for the 4.6 modular motor be ordered installed? Will the 4.6 bolt to the mounts for the Ford engine listed in the options? Also wondering about the trans mount, the cop car trans looks longer than the C4/C6 family.

Opus
Garland, TX, USA
March 20, 2014

Mounts for 4.6 Mod motor It's starting to look like my donor vehicle will be a cop car. Can mounts for the 4.6 modular motor be ordered installed? Will the 4.6 bolt to the mounts for the Ford engine listed in the options? Also wondering about the trans mount, the cop car trans looks longer than the C4/C6 family.

Answers

March 24, 2014
EricM
No I do not have a way to put mounts into this frame for a 4.6 Ford engine. You will have to mock it up and fabricate mounts as necessary.
1 answers

can these be ordered with the engine/tranny mounts installed , and also radius rod tabs and master cylinder bracket ?

Robbie77
North Carolina, USA
February 06, 2014

can these be ordered with the engine/tranny mounts installed , and also radius rod tabs and master cylinder bracket ?

Answers

February 07, 2014
EricM
We have add on options where we will weld some of those brackets on this frame such as: 715100—Add Vega box mount and front radius rod brackets 715300—Add rear radius rod brackets 715500—Add small block Chevy mount and transmission mount. Sorry we do not have the master cylinder bracket as an option to be added to this frame. It could be bolted or welded on when you receive the frame. If you purchase this frame and our body is used we can verify the location it should be installed at for you. With the variance of other bodies you would have to mock up and locate as needed if some other body is installed on this frame.
1 answers

frame width 1926 motel t toder frame width, comepared to your frame width? inches.

greasy
Kentucky, USA
January 11, 2014

frame width 1926 motel t toder frame width, comepared to your frame width? inches.

Answers

January 14, 2014
EricM
Speedway’s Model T frames are considerably different from an original frame. The original Model T’s used a spring over axle whereas our frames utilize a spring behind for lower ride stance. The front of the frame is 23 ½" wide as opposed to original 26 ¼" at the front spring cross member. At the rear we are 28 ½" instead of the original 41 ½”. Wheel base is approximately the same at 103” but location of the actual wheels is completely different because of the spring behind axle in front. They have been made to work but the frames will take considerable modification to use with a stock body.
1 answers

what is the width of the nostalgia/deluxe bare model t frame

dutch
Huntington Beach, CA, USA
April 15, 2013

what is the width of the nostalgia/deluxe bare model t frame

Answers

April 16, 2013
Jason
The bare Nostalgia T frame number 7154200 is 23.5” wide in the front and 28.5” wide at the rear.
1 answers

Front spring perch Can I order this frame with the Tribute T frame front perch welded on instead of the one that comes with it? It appears that the Tribute T frame perch will allow the car to sit lower.

Sonny
Lake Havasu City, AZ, USA
February 11, 2013

Front spring perch Can I order this frame with the Tribute T frame front perch welded on instead of the one that comes with it? It appears that the Tribute T frame perch will allow the car to sit lower.

Answers

February 12, 2013
Jason
The Nostalgia/Deluxe 23 T frame currently comes with the low ride front perch number 91633015 same as the 71533015 on the Tribute T. Custom build for a different perch height is not offered such as “Z” in the front. We apologize for any inconvenience.
1 answers

What is the angle of the kick up?

TJBo
January 04, 2013

What is the angle of the kick up?

Answers

January 04, 2013
Jason
The rear kickup in the frame is at 45 degrees.
1 answers

There is no picture. Does this Frame have the kick up in the back.

Vermont Custom Auto Service
Vermont
January 23, 2012

There is no picture. Does this Frame have the kick up in the back.

Answers

January 26, 2012
John
Part number 7154200 We apologize for the inconvenience but yes the Nostalgia /Deluxe T frame does have the kick up in the rear. It will be just like the Budget frame without the rear coil spring buckets or look just like the frame in the Chassis Kits we offer without all the brackets and accessories.
Page 1 of 1
