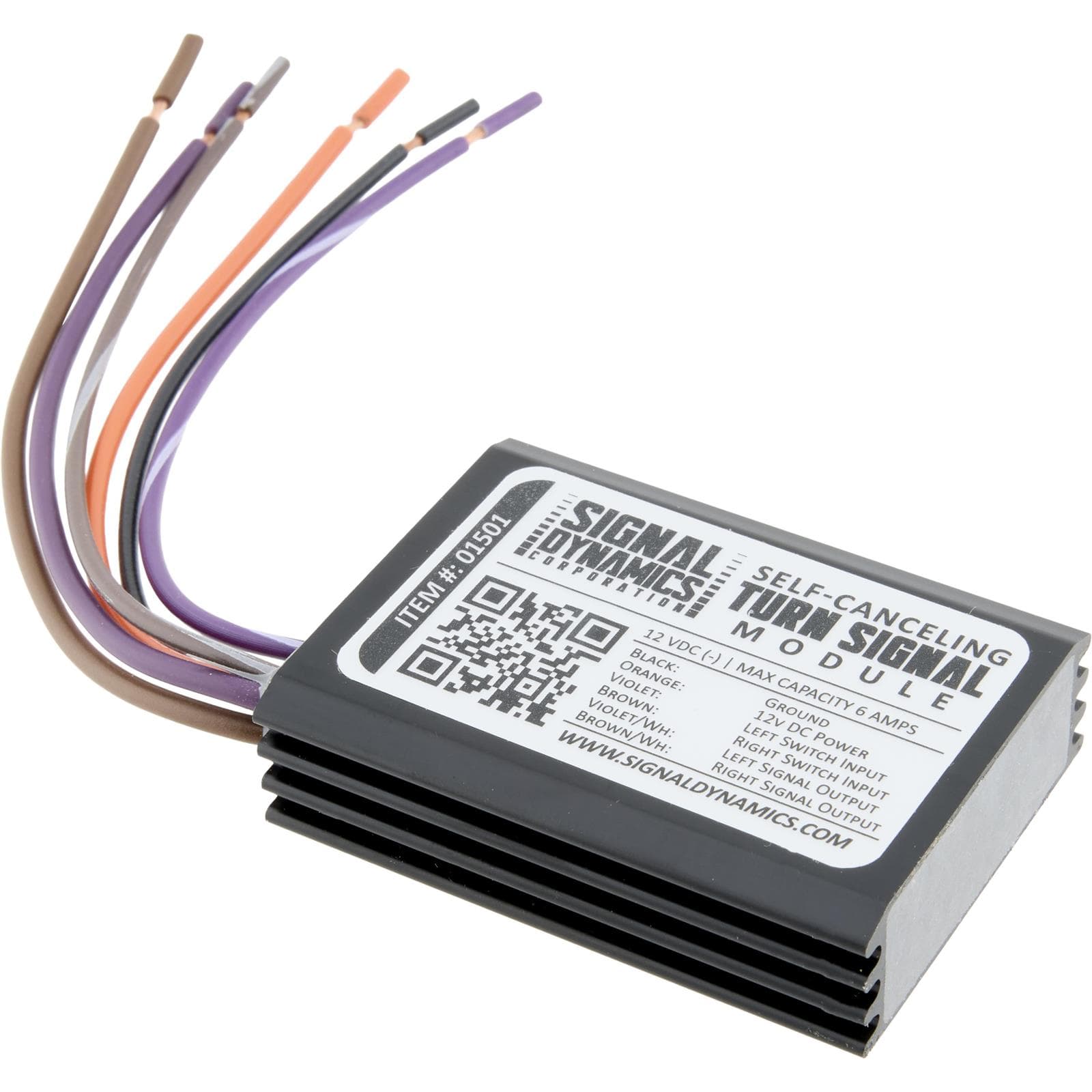

Hi-Tech Turn Signal Module Standard

Price:$69.99
STANDARD TURN SIGNAL MODULE
Price:
$69.99
EA
In Stock
Item #:
91064050
Item Details:
Two taillight bulbs per side

(1 Rating)
Click image to enlarge Click image to enlarge
  • Hi-Tech Turn Signal Module Standard
  • Hi-Tech Turn Signal Module Standard
No video at this time.

Engineered for the custom builder, or to retrofit motorcycles not equipped with self-canceling turn signals. Designed for use with individual momentary type turn signal switches mounted on the left and right handle bars. This unit will not work on bikes that have the left and right turn signal switch built into one unit that you must push to cancel.

Requires two taillight bulbs per side.

910-64050 Instructions (pdf)

  • Three Turn Signal Timing Modes - self canceling.+ Hazard Mode - non-self canceling.
  • Non-Load Dependent Flash Duration - flash time constant whether using incandescent or LED lighting.
  • Dependable Solid-state electronic components.
  • Weather Proof - potted with soft cell technology to prevent wire chaffing and damage.

    • Here's how it works:

    • Press the appropriate button for 1 second and the turn signal light will flash for 7 seconds, then self cancel.
    • Press for 2 seconds and it will flash for 20 seconds, then self cancel.
    • Press for 4 seconds and it will flash for 75 seconds, then self cancel.
    • Press the same button a second time to manually cancel.
    • To activate the hazard flashers, press both buttons at once. To disengage, press again. (They will flash until disengaged).
    • 12 VDC negative ground
    • Max load capacity: 6 amps per left or right channel
    • Dimensions: 2 1/4" L x 1 5/8" W x 5/8" H
    • Mounting: Secure to flat surface with double-sided tape (included)
    Reviews for Item #: 91064050
    Displaying Reviews 1 of 1
    Processing


    "Why didn't I buy this sooner"

    By mrcs4u from Maryland on 1/25/2010
    Pros:
    Easy, Straight forward Instruct
    Cons:
    No brake light hook-up
    Bottom Line: Yes, I would recommend this to a friend

    Very simple piece of equipment to install. The directions couldn't have been written any better. I wish there was a bit about not being able to hook-up the brake lights (you need the deluxe model). No complaints, I would do it all over again.

    Was this review helpful to you? Yes / No - You may also flag this review.
    Please let us know what kind of issue this is:









    Email Address:

    Comments:

    Displaying Reviews 1 of 1


    Questions and Answers for Item #: 91064050

    Get your questions answered by the community. Ask or answer questions below.

    1 Question | 1 Answer
    Displaying Questions
    Processing

    Q:

    How do I hook up brake lights to this product?

    Asked on 6/5/2011 4:48:25 AM by Bruce from Spring, TX
