Fuel Tank Roll-Over Vent Valve

Specs
Sold in Quantity:
Each
Finish:
Natural
Material Type:
Brass
Thread Pitch:
1/4" NPT
Overall Length:
3.02
Thread Length:
.60
Under Head Length:
2.50

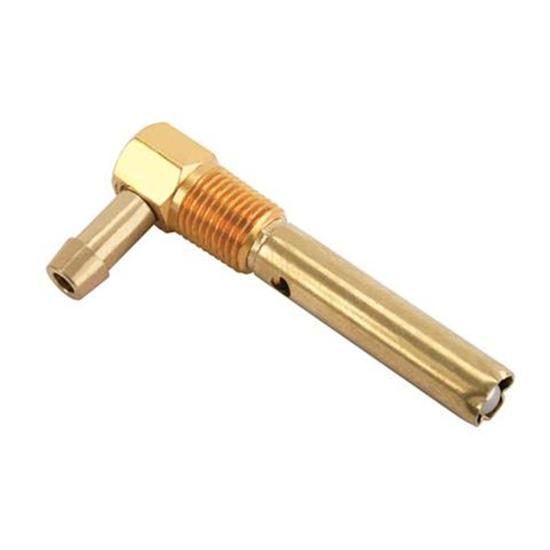

Fuel Tank Roll-Over Vent Valve

Click image to enlarge

Details

Reviews (16)

Q & A (5)

What's in the Box

Info

This safety device will automatically stop fuel flow if your car somehow gets upside down. Inside is a needle/ball seat which stops fuel flow out the vent if you get upside down.

  • Accepts 5/16" hose
  • Fits into 1/4" npt port
  • Measures 3" bottom-to-top

Customer Reviews

Rated 4.8 out of 5 by 16 reviewers.
RATING BREAKDOWN
16 reviews
5 Stars
13
4 Stars
3
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

C10 owner
Verified Purchaser
Regina Canada

Fast Service

August 22, 2016
It was exactly what I ordered but the check ball end had to be squeezed together with a vise a bit to fit in the gas tank hole, once in it screwed in great.
Pros:
  • Arrived Extremely Fast
  • To Canada
  • Especially For Shipping
Cons:
  • Had To Adjust
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

twaage
Verified Purchaser
kansas

vent valve

August 02, 2016
worked great on our derby car. Safety is important.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

street rod
Verified Purchaser
douglas wyoming

vent

June 11, 2016
vent worked great
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Spoon
Verified Purchaser
Verified Reviewer
Chicago, IL

Every fuel cell needs one

June 09, 2016
Nicely made and reasonably priced for something that could save your life.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Sal
Verified Purchaser
Verified Reviewer
Kingman, AZ

Just the part I needed

April 28, 2016
Just the part I needed
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

DH760
Verified Purchaser
Verified Reviewer
Tennessee

Fuel tank roll over valve

August 10, 2015
Got to my home next day.Customer service was excellent. I would return to Speedway for any other needs I have.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Kow48
Verified Purchaser
L. Prairie, Mn

It works!

September 23, 2014
My fuel tank had just a elbow with a hose rising above it and when I would take a corner, gas would splash out. This has cured that problem. Thank you!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Hotrodding
Verified Purchaser

As advertised.

April 19, 2014
Worked great on my 34 Chevy. 90 degree fitting gave great clearance in a limited location on my fuel cell.
Pros:
  • good quality and price.
Cons:
  • none.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Cmlkll
Murrieta, CA, USA

Easily forgotten, but extremely importan

September 20, 2013
Filling up my tank at the gas station was a nightmare until I installed this vent valve. Now I don't spend 45 minutes at the station only to get my feet covered in fuel. This simple (but effective) part installs in minutes and saves you of many head aches (because your not huffing fumes from you fuel soaked shoes)
Pros:
  • Effective
  • Simple
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Kyle
Verified Purchaser
MN

Good product

June 23, 2012
Good product!
Pros:
  • Good product good price
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 2

Product Q&A

5 questions : 5 answers

1 answers

Does a filter need to be installed on the nipple? If so, can you recommend a part #?

Chrismac
December 11, 2012

Does a filter need to be installed on the nipple? If so, can you recommend a part #?

Answers

December 11, 2012
Jason
This vent must be installed on the top of the tank, preferably at the highest point of the tank. No filter is required, you can install a rubber hose on nipple and route towards the ground
1 answers

What's the best location in the fuel tank to install? Will it matter if submerged in fuel?

TJ
Florida
March 11, 2012

What's the best location in the fuel tank to install? Will it matter if submerged in fuel?

Answers

March 13, 2012
Eric
This vent must be installed on the top of the tank, preferably at the highest point of the tank. It is not recommended to have it submerged in fuel since it would be possible for the fuel to be pushed out this vent if the fuel tank gets pressurized.
1 answers

will this valve work on a diesel transfer tank

March 03, 2011

will this valve work on a diesel transfer tank

Answers

March 07, 2011
Jason
This should work fine with diesel fuel.
1 answers

Can this vent be installed external to the tank?

CaptnCurt
Marietta, GA
November 14, 2015

Can this vent be installed external to the tank?

Answers

November 16, 2015
Kyle
Expert
This roll over vent is designed to be threaded into a weld in bung in the top of the tank.
1 answers

Does this product need to be installed vertically?

Gareth
May 03, 2016

Does this product need to be installed vertically?

Answers

May 04, 2016
Eric
Expert
Yes this valve must be installed vertically in order for the roll-over valve to operate.
