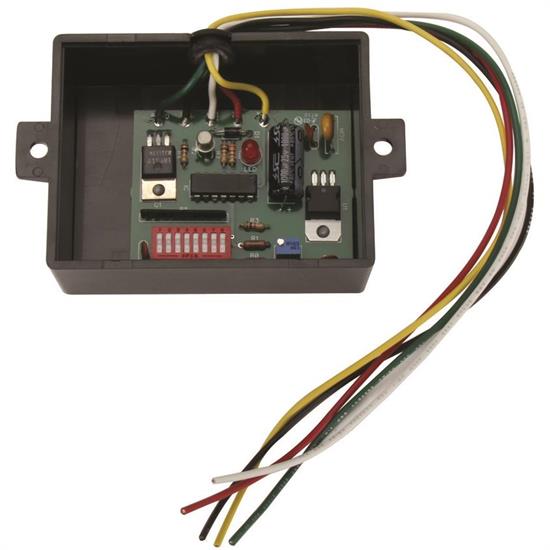

Fuel Gauge Interface Module

SAME DAY SHIPPING! Most orders ship within 24 hours.

Free Shipping Free Shipping
Specs
Sold in Quantity:
Each
Garage Sale:
No
Centerline of Holes:
3.73
Overall Height:
2.76
Overall Width:
4.20
Overall Length:
1.28
Fuel Gauge Interface Module
Fuel Gauge Interface Module
Fuel Gauge Interface Module

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Fuel level gauges are designed to work with specific sending units that vary from one automobile or gauge manufacturer to another. Some increase resistance from Empty to Full, while others decrease as the level goes up. For a builder updating their vehicle with new gauges, this presents a problem in that the aftermarket gauges must match the sending unit located in the tank. This module will allow you to use your stock sender with any fuel gauge. You no longer have to remove the tank to add a separate sending unit or modify the sending unit that comes with a aftermarket gauge set.
  • Simply wires in-line between your gauge and existing sender
  • Allows you to use your stock sender with any fuel gauge
  • No need to remove the tank to add a separate sending unit

Learn more about selecting the proper fuel sending unit by reading our tech article, Fuel Sending Units

Customer Reviews

Rated 5 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
4
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Rad
Verified Purchaser
We Ridge Colorado

This is a very nice gas modular I would recommended

June 26, 2015
It's just a very nice unit to set up very easy
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

63futura289
Verified Purchaser

Works great

February 24, 2015
Corrected aftermarket linear sending unit to work perfectly with factory gas gauge
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

48sub
PA

This product is a great time saver.

September 08, 2013
this product saved me hours of work removing my gas tank, when I put new gauges in. I don't think the sending unit sent with the gauges would fit in the tank in my car.
Pros:
  • Great product
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Robert321
Tennessee, USA

This part is a life saver

April 03, 2013
I would have to dissassemble vehicle to change the fuel gauge snding unit. The labor would have been 375.00. Plus the damage to the paint that would most likely happen. Great Idea
Pros:
  • great and simple
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

6 questions : 7 answers

1 answers

E36 BMW sending unit compatibility Hi, i am wondering if your module would work with the sending units in my E36 bmw. Those have 2 sending units in the tank(left an d right) for 500 ohm full and 20 ohm empty. Is your module compatible with this range of resistance?? If so i would be very interested. Thanks a lot!

Mathieu
March 13, 2015

E36 BMW sending unit compatibility Hi, i am wondering if your module would work with the sending units in my E36 bmw. Those have 2 sending units in the tank(left an d right) for 500 ohm full and 20 ohm empty. Is your module compatible with this range of resistance?? If so i would be very interested. Thanks a lot!

Answers

March 13, 2015
EricM
We apologize but this interface module only goes up to 240 ohm full and will not be applicable to your needs.
1 answers

I programed the box with my sender and guage.If I disconnect the power will it need to be reprogrammed?

cutty
Thibodaux, LA, USA
February 13, 2015

I programed the box with my sender and guage.If I disconnect the power will it need to be reprogrammed?

Answers

February 16, 2015
Tech
No these should retain the settings.
1 answers

will this module correct the real time needle movement on my new classic instrument fuel gauge? the gauge is 0-90.the sending unit and tank are new and are a direct replacement for original. also 0-90.The tech support for Classic instrument said this would help. Since the module cost as much as the new gauge I want to make sure before purchase.

nova
April 14, 2014

will this module correct the real time needle movement on my new classic instrument fuel gauge? the gauge is 0-90.the sending unit and tank are new and are a direct replacement for original. also 0-90.The tech support for Classic instrument said this would help. Since the module cost as much as the new gauge I want to make sure before purchase.

Answers

April 15, 2014
EricM
It's hard to get an idea of what your issue is by your description of "real time needle movement." If the tech support at Classic Instruments said an interface module would help you issues when you described it to them then I would have no reason to doubt them. To get any fuel level gauge to read accurately you have to use an interface module like this unit. They are a great addition even to a gauge that is working properly since you can adjust the full and empty readings to be correct.
1 answers

will this work with digital gauges? I read the manual it does not say anything about didgital gauges.

kase
January 31, 2014

will this work with digital gauges? I read the manual it does not say anything about didgital gauges.

Answers

January 31, 2014
EricM
This will work with nearly any fuel level gauge. Your gauge will have a specific resistance range that it requires from a fuel level sender. As long as your gauge operates with one of the resistance ranges that this Interface Module will transmit then it will work with your gauge whether its a standard gauge or digital.
2 answers

Why 6 wires?... my sending unit only has 2 wires (which go directly to the gage), and the gage then has 1 additional wire (going to 12v power)? Am trying to Make-do for a 1987 F350 pickup, having 2 tanks and unknown type of sending units (20-80 ohm resistance). Currently the gages read Backwards and (when the sending units are grounded) the gages only go 1/2 up the scale (eg read Half Full). I suspect that the sending units were replaced by previous owner with GM units.

ALEXB
ANAHEIM CA
March 21, 2013

Why 6 wires?... my sending unit only has 2 wires (which go directly to the gage), and the gage then has 1 additional wire (going to 12v power)? Am trying to Make-do for a 1987 F350 pickup, having 2 tanks and unknown type of sending units (20-80 ohm resistance). Currently the gages read Backwards and (when the sending units are grounded) the gages only go 1/2 up the scale (eg read Half Full). I suspect that the sending units were replaced by previous owner with GM units.

Answers

April 04, 2013
scott5859
6 wires ? red 12volts black Ground Green to fuel gauge yellow to sending unit white low fuel light as long as both of you sending units are the same (ford is 73-10) you can install the module between the gauge and fuel tank selector switch on your dash. If you do not know what your senders are fill up tanks and remove wires from senders. Take an ohm reading between ground and sender. if you get close to the readings below it is a gm sender. 90ohms 0-90 30ohms 0-30 If you can not do this the module has the capability to custom set the empty and full points If you ground the sending unit wire the gauge should got to full or empty depending on the gauge if it does not you have gauge, wire of selector switch problem. Start from th back and keep grounding the sender wire until it pegs the gauge. if it never pegs it is most likley the gauge.
March 21, 2013
Jason
The gauge interface module works for multiple applications of which detailed instructions come with. Red is 12 volt switched power, yellow is to the sender, green is to the gauge and “S” terminal, white is to low fuel light, black is to chassis ground, and gray is a dip switch wire of which has been preset. Only black dip switches are set to match the sender and the gauge and instructions will list how they are set.
1 answers

I have a ATL fuel cell with their sending unit mounted in the cell(240/33 ohms). The cell is mounted in a 1961 Ford Galaxie Starliner and I want to use the stock dash and fuel gauge which I believe is a lot lower ohms. Will this unit work with this application?

Jim
Montour Falls,NY
April 19, 2015

I have a ATL fuel cell with their sending unit mounted in the cell(240/33 ohms). The cell is mounted in a 1961 Ford Galaxie Starliner and I want to use the stock dash and fuel gauge which I believe is a lot lower ohms. Will this unit work with this application?

Answers

April 21, 2015
Eric
Expert
This interface module can be set for the aftermarket 33-240 ohms and then the gauge can be set to match the sender unit arm in the tank.
Page 1 of 1
