Deluxe 1932 Ford Tubular Crossmember Kit

SAME DAY SHIPPING! Order within the next 1 hour 6 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Natural
Garage Sale:
No

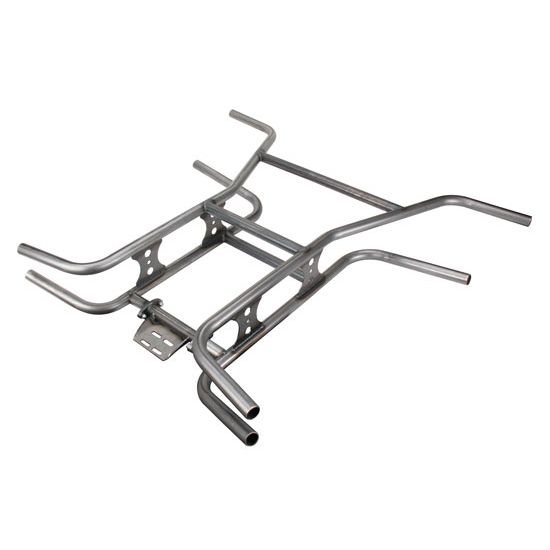

Deluxe 1932 Ford Tubular Crossmember Kit

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

This Deluxe 1932 Ford crossmember kit is the same crossmember we use in our complete 1932 Ford frame. It features heavy duty, thick wall round tubing and includes a removable transmission mount (less mount cushion). Designed for Speedway '32 Boxed Truss frame.

  • Upper tube overall length is 44-1/4"
  • Lower tube overall length is 45-1/2"
  • Overall width at front tubes is 30-3/4"
  • Overall width at rear tubes is 39"

Crossmember comes fully welded. Must ship truck - cannot ship UPS.

Notes

  1. Designed to work in our Speedway Boxed Truss '32 frame.
  2. Utilizes a 4-link bracket at the rear of the upper tube. In an application not running a 4-link rear suspension, the upper tube will be short and some fabrication for mounting may be required.
  3. Master cylinder/booster mount plate NOT included.

Specs


Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

1 answers

Can this crossmember be used with your reproduction frame rails, PN 91657007?

February 10, 2012

Can this crossmember be used with your reproduction frame rails, PN 91657007?

Answers

February 14, 2012
John
Part number 91657029 This tubular cross member works with Speedway frame rails number 91657007 after they have been boxed. Or the customer would box just the area where the cross member meets the rails if so desired. The upper rear tube is built with the brackets for the triangulated four link and if not used will need to be removed and the tube will need to be lengthened as desired.
1 answers

will this fit a boxed '34 frame?

nvrater
Dayton, NV, USA
April 11, 2015

will this fit a boxed '34 frame?

Answers

April 13, 2015
EricM
This cross member kit will work in a boxed 32 frame and with variations in the early frames of ½” or more there may be some trimming for a good fit. If the frame is swelled from boxing it may require pinching some for the proper fit.
