Cooling Fan Control for Electric Gauges

Specs
Overall Height:
1.37
Overall Width:
3.00
Overall Length:
4.75
Sold in Quantity:
Each
Amperage:
30.00
Voltage:
12.00
Wire Length:
140.00
Notes
Includes fusible link.

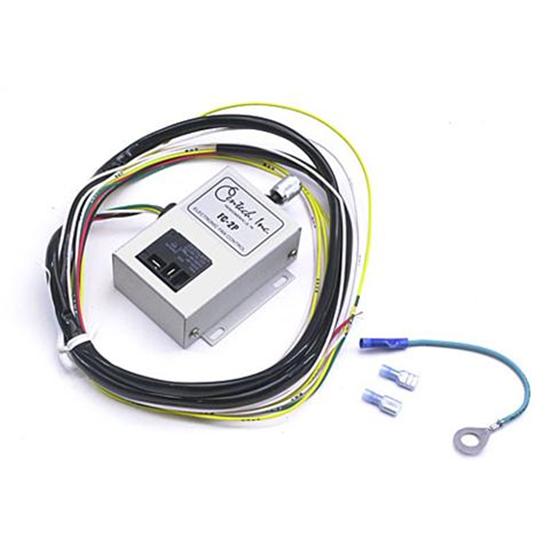

Cooling Fan Control for Electric Gauges
Cooling Fan Control for Electric Gauges
Cooling Fan Control for Electric Gauges

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

This is the slickest thing we've seen in years. This adjustable box simply uses your electric temperature gauge as the sending unit to control your cooling fan. Features a built-in 30 amp relay to provide maximum power to your fan and it comes with a tiny LED lamp to let you know when the fan is running plus a fuselink to protect the wiring between the temperature control unit and the fan.

  • Easy to install and adjust
  • No radiator tube
  • Uses existing wiring
  • Simple hookup
  • Fully adjustable
  • Driver-controlled temperature
  • A/C compressor switch to automatically turn on fans
  • 30 amp relay inside box
  • Protective fuse link
  • For 12 volt electrical systems
  • Measures 4-3/4" x 3" x 1-1/4"

Warranties

Each unit comes with a one year manufacturer's warranty.

Centech Wiring, Inc.
2190 Colflesh Road
Perkiomenville, PA 18074
(610) 754-0740
centech@centechwire.com

Customer Reviews

Rated 5 out of 5 by 6 reviewers.
RATING BREAKDOWN
6 reviews
5 Stars
6
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

46hotrod
Verified Purchaser
Illinois, USA
Product Rating

Simple installation.

June 01, 2014
I liked how it is wired into the temp gauge and has an LED light built into the controller.
Pros:
  • very clear instructions.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

BIGBLACK
Derby, KS 67037, USA
Product Rating

Years of perfection!!

June 15, 2013
If you know how it should be hooked up correctly then you wont have any problems. Other people are burning them up because there fans draw to many amps its only rated a 30 amps. I am going with bigger fans now so im going to use two of these just to be on the safe side.
Pros:
  • very depenable
Cons:
  • does not handle high aperage fans
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Creed
Mesa, AZ
Product Rating

Very good device

February 22, 2012
I've been using mine in my Street Rod for several years now. Works perfectly after the temperature has been set. Very durable, I have had it out-last (by 3 times!)the more expensive Spal controller that I installed on another car with dual fans. Using the temperature sending wire for the temperature gage is it's best feature because it will keep the engine compartment neat and clean with less wires running around and by using the gage you will know what temperature the fan is going to turn on.
Pros:
  • Easy hook-up
  • Durable
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Walt
Verified Purchaser
Winter Park, Fl
Product Rating

I would purchase this product again

August 01, 2010
I mounted the control on the inside of the fire wall,ran the wire to the temperature gage cut the wire to the fan and it was done. No other temperature sensor was required. The unit allows you to adjust the on temperature. I added an external led and a bypass switch. I did not want the fan to run when ever the ac was on.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

mike1932
Verified Purchaser
coeurdalene, idaho
Product Rating

easy to adjust and works great

June 21, 2011
good instructions and works as advertised..no need to buy different sensors anymore..
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

62 Fleetside
Middleville MI
Product Rating

Great Product

February 06, 2010
Very easy to use. Simple directions. Uses existing temp sending unit, attaches to back of gauge. Worth the dollars spent.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 5 answers

TWO SPEED FAN COMPATABILITY? WILL THIS OPERATE A SINGLE BLADE TWO SPEED FAN AND ENGAGE WHEN A/C IS ON?

1 answers
RALPHY
Fort Worth, TX, USA
February 03, 2015

TWO SPEED FAN COMPATABILITY? WILL THIS OPERATE A SINGLE BLADE TWO SPEED FAN AND ENGAGE WHEN A/C IS ON?

Answers

February 04, 2015
EricM
This unit can be used on a two speed fan but you will only be able to use one fan speed (either high or low). You could use two of these units and be able to adjust the on/off temperature of the low and high speed individually that way. Also this controller does have the ability to turn the fan on when the A/C is being used.

can i set this unit to a certain temperature for the fans to turn on or does it turn on only when i make it turn on? can i set this unit to a certain temperature for the fans to turn on or does it turn on only when i make it turn on?

1 answers
jossen
Bronx, NY, USA
June 19, 2013

can i set this unit to a certain temperature for the fans to turn on or does it turn on only when i make it turn on? can i set this unit to a certain temperature for the fans to turn on or does it turn on only when i make it turn on?

Answers

June 19, 2013
Jason
This cooling fan control will turn on automatically at specified temperature. The temperature setting is adjustable. Start engine and allow to warm to a temperature you would like it to operate. This temperature must exceed the thermostat temperature by a minimum of 8 degress. There is an approximately 6 degree difference between where the fan turns on and off.

Will this unit work a Dakota Digital dash electronic gage? Dennis.

2 answers
Abbotsford, BC, Canada
July 09, 2011

Will this unit work a Dakota Digital dash electronic gage? Dennis.

Answers

June 16, 2013
BIGBLACK
They will work with any electric gauge but it needs to be a 0-220 degree gauge and sender for them to work correctly. If the gauge reads for instance 160 to 260 degrees the fans will come on till the temperature reaches 160 then go off and come back on at the temperature you have it set at so be sure your gauges start reading at 0 degrees.
July 12, 2011
John
This fan control works with electric sending units for most gauge manufacturers. There is no warning or elimination of electronic gauges whether analog or digital. For verification feel free to visit with a Speedway Tech or the manufacturer. There is a direct link to the manufacturer for hook up and trouble shooting operation problems.

do i need to us the fan relly

1 answers
bones
whitter ca.
July 01, 2011

do i need to us the fan relly

Answers

July 06, 2011
John
These electric fan controls come with a 30 amp relay and is sufficient for several fan applications. If using in conjunction with a fan that is suggesting a 70 amp relay we suggest using a higher amp rated relay. The relay takes the current surge created on initial start up of the cooling fan. Without a relay in the system damage to the electronic control may result.
