Adjustable Tie-Rod Adapter Stud to Heim

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Sold in Quantity:
Each
Degree of Taper:
-
Overall Length:
-
Top of Taper:
-
Bottom of Taper:
-
Garage Sale:
No
Thread Length:
2.675
Notes
5/8" end is 3" long with 2.75" threaded. Steering arm end is 7/16".

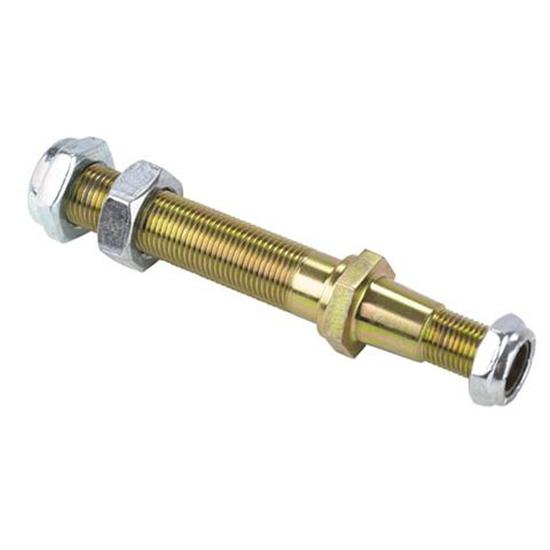

Adjustable Tie-Rod Adapter Stud to Heim

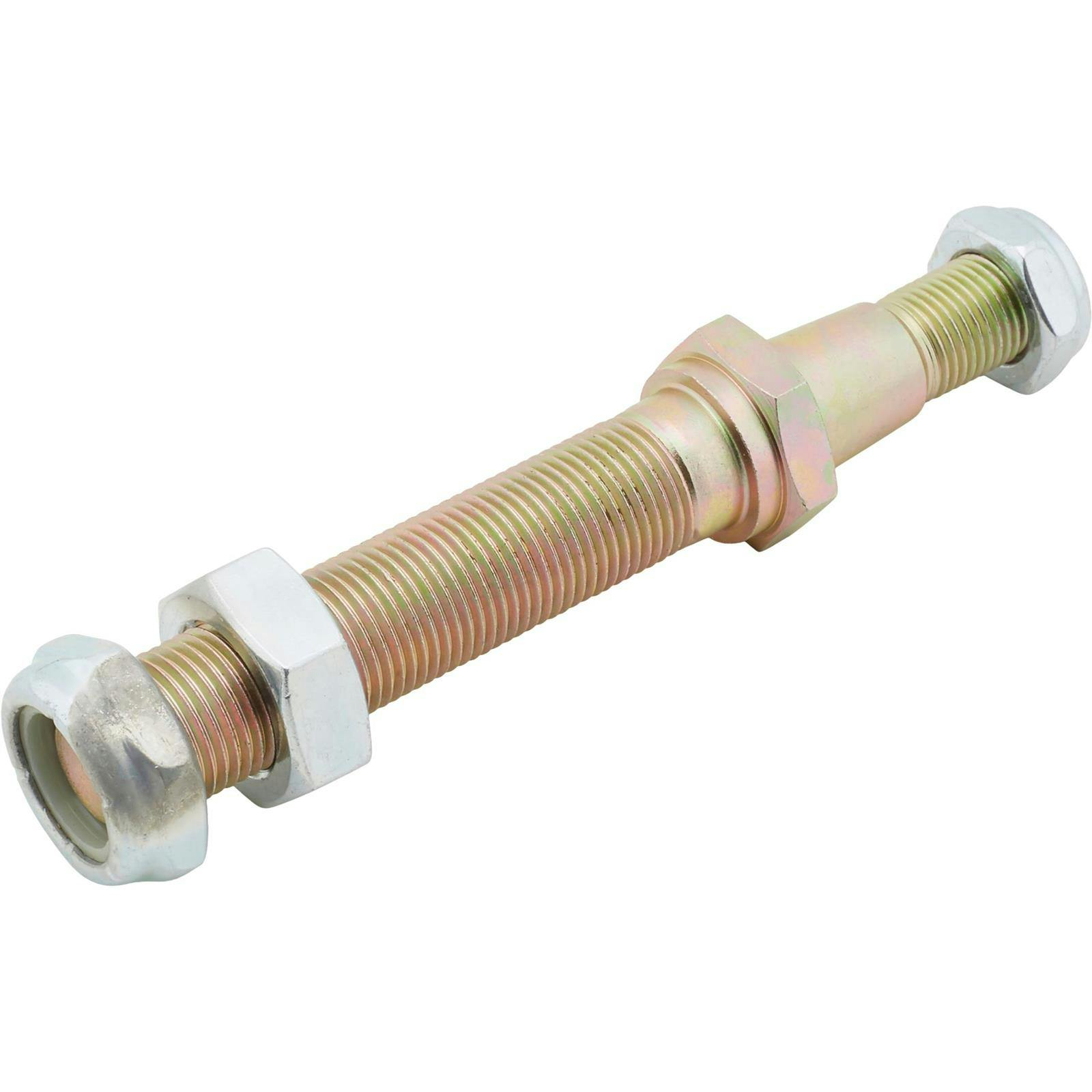

Adjustable Tie-Rod Adapter Stud to Heim
Adjustable Tie-Rod Adapter Stud to Heim

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

This little adjustable tie rod adapter stud allows you to use 5/8" heim rod ends instead of OEM tie rods. It also allows you to adjust steering geometry to minimize or eliminate bump steer.

Made of 4140 chromoly steel and zinc coated. Includes jam nuts. Choose from GM (10 degree taper) or Pinto (7 degree taper). IMCA approved.

Customer Reviews

Rated 4.6 out of 5 by 14 reviewers.
RATING BREAKDOWN
14 reviews
5 Stars
9
4 Stars
4
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

rocket88
Verified Purchaser
san jose ca

USED THESE ON EARLY FORD WITH STRAIGHT AXLE

August 14, 2015
USED THE PINTO TAPER REAMER TO GET CORRECT DEPTH WORKS VERY WELL
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Fast Freddie
Verified Purchaser
Verified Reviewer
Jasper al

No trouble

July 11, 2015
Used for tying my steering together, I never knew this adapter existed until the speedway tech told me . Bolted on and done.
Pros:
  • Great quality
Cons:
  • Should've Ordered Sooner
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

engineguy
Verified Purchaser
Gold Canyon, AZ

Great product

March 28, 2015
These adapters, used with Heim ends enabled me to get rid of bumpsteer completely.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Podre71
Verified Purchaser

Handy

March 06, 2015
Worked well for my Model A Coupe - Vega Cross Steer
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Cavy
Verified Purchaser
Evansville, IN, USA

Great part

August 31, 2014
Does just what I needed great item and it gave me the proper adjustment I needed
Pros:
  • Works Great
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

racerman

Hardware need to be improved

May 08, 2014
Very unique and useful product to the industry. The fasteners furnished need some improvement. They are very thin hex nuts, like a jam nut, with only 3 threads internally. I replaced them with full height locking nuts as I feel should have been furnished.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Fiberglass6o
Cincinnati, OH, USA

A part that dos just what is made to do

September 30, 2013
This was the best part I could add to my car. Bump steer is gone.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

DillingerChassis
Utah

"Excellent Price and Quality"

February 26, 2013
I have used many of these on my tie rod to heim conversion with no issues. Really help improve bump steer.
Pros:
  • Great price
  • Great quality
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

DillingerChassis
Utah

"Excellent Price and Quality"

February 26, 2013
I have used many of these on my tie rod to heim conversion with no issues. Really help improve bump steer.
Pros:
  • Great price
  • Great quality
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Mike Reddy
Verified Purchaser
Calvert county, md

Good for body dropped trucks

August 06, 2012
Awesome part for dropping the tie rod below the frame to prevent notching it, my only issue is they don't sell a "bump steer adapter" for it. If you try to use this with the mustang II rack you will need 9/16x18 rh to 5/8 lh adapters. Speedway needs to start selling them. But for my s10 it's going to work out fine.
Pros:
  • Adjustable
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 2

Product Q&A

14 questions : 15 answers

1 answers

Is this the same taper as an International Harvester tie rod end?

spize
Upland, CA, USA
April 02, 2015

Is this the same taper as an International Harvester tie rod end?

Answers

July 02, 2015
Eric
Expert
Sorry we do not have any info as to the taper angle or size of the tie rod ends from an International Harvester.
1 answers

Have you a model with a 3/8" tread at the bottom of taper ? For a Brit Classic car

Phil83
France
August 16, 2014

Have you a model with a 3/8" tread at the bottom of taper ? For a Brit Classic car

Answers

August 18, 2014
EricM
No, sorry I only offer these with 5/8" thread.
1 answers

Will the tapered end work with Mustang II steering knuckle?

dwhip
West Palm Beach, FL, USA
July 26, 2014

Will the tapered end work with Mustang II steering knuckle?

Answers

July 29, 2014
Travisp
Part number 91636055 is available for GM or Pinto and for the Mustang II spindles choosing Pinto would give you the correct 7 Degree taper. On the heim however we do not offer a 5/8” I.D, for the stud and 9/16 for the female threaded end for the Mustang II tie rod end. Some customers have modified the rack and pinion tie rod to accept the standard 5/8 heim end in male or female.
1 answers

Will this work on a 73 duster spindle

69valiant
March 12, 2014

Will this work on a 73 duster spindle

Answers

March 12, 2014
EricM
You would have to compare the taper of your tie rods to the taper sizes we offer. The -GM version measures: Degree of Taper: 10 degree Top of Taper: 0.615" Bottom of Taper: 0.460" The -PINTO version measures: Degree of Taper: 7 degree Top of Taper: .560" Bottom of Taper: .630"
1 answers

GM taper would this fit a 1988 Firebird?

madmax
Texas, USA
February 25, 2014

GM taper would this fit a 1988 Firebird?

Answers

February 25, 2014
EricM
Sorry we have not tried these on an '88 Firebird yet. Compare the taper measurements with the taper of your spindle or outer tie rod end to be sure of fitment. The GM version has taper measurements of 10 degree taper, .615" big end of taper, .460" small end of taper.
1 answers

what is the outside diameter of the taper at the thread base and the large end of the taper Im looking for proper fitment for stock 1969 mustang spindles.I believe it is a 7* taper.If you could give me the outside diameter of taper at the bottom and the top and the length of taper from the bottom of thread to the hex at the large taper end.Thanx Brian

mustangsue
February 24, 2014

what is the outside diameter of the taper at the thread base and the large end of the taper Im looking for proper fitment for stock 1969 mustang spindles.I believe it is a 7* taper.If you could give me the outside diameter of taper at the bottom and the top and the length of taper from the bottom of thread to the hex at the large taper end.Thanx Brian

Answers

February 25, 2014
EricM
The GM version is a 10 degree taper and measures .615" big end of taper and .460" small end of taper. The Pinto version is a 7 degree taper and measures .630" big end of taper and .560" small end of taper.
1 answers

whats the flute length of this stud i.e. the the length of the tapered section??

nofx230
Colorado, USA
January 09, 2014

whats the flute length of this stud i.e. the the length of the tapered section??

Answers

January 10, 2014
Travisp
The gm adapter is 7/16 long on the tapered end. The pinto is 1.425 long and .075 of that is threaded.
1 answers

Will this adapter fit the small hole of the pitman arm part # 7022940? Will this adapter fit the small hole of the pitman arm part # 7022940? I know the diameter of the hole is wide enough to accept it, but is the 1/2 end long enough to clear the hole and be fastened on the other side?

OriginalFord
NJ
October 28, 2013

Will this adapter fit the small hole of the pitman arm part # 7022940? Will this adapter fit the small hole of the pitman arm part # 7022940? I know the diameter of the hole is wide enough to accept it, but is the 1/2 end long enough to clear the hole and be fastened on the other side?

Answers

October 28, 2013
EricM
Yes the PINTO version of this tie rod adapter will fit pitman arm 7022940.
2 answers

What is the over all length of the adapter?

midamericacustoms.com
Wood River IL.
September 14, 2011

What is the over all length of the adapter?

Answers

March 03, 2013
DillingerChassis
5.157" overall length. It is stated in the item details.
September 15, 2011
Jason
The GM adapter is 5-3/16" in over all length TAPER INFO: APPROX .460" DIA SMALL END APPROX .615" DIA LARGE END UNDER NUT END OF THREADS/BEGINNING OF TAPER TO BOTTOM OF NUT APPROX 1.055" 5/8" END IS 3" LONG WITH APPROX 2 3/4" THREADS THIS UNIT HAS 2" OF TAPER PER FOOT / 10 DEG WHICH IS MATCHED TO OUR REAMER # 910-89412 The Pinto adapter is 4-13/16 over all in length TAPER INFO APPROX .560" DIA SMALL END APPROX .620" DIA LARGE END UNDER NUT END OF THREADS/BEGINNING OF TAPER TO BOTTOM OF NUT APPROX .625" 5/8" END IS 3" LONG WITH APPROX 2 3/4" THREADS THIS UNIT HAS 1-1/2" OF TAPER PER FOOT / 7 DEG WHICH IS MATCHED TO OUR REAMER # 910-89411
1 answers

Looking to use this on the spindle of a chevy 98 1ton truck (2wd). Would be replacing MOOG-ES2836RL

Phil
June 14, 2011

Looking to use this on the spindle of a chevy 98 1ton truck (2wd). Would be replacing MOOG-ES2836RL

Answers

June 16, 2011
John
This part is a tie rod adapter stud to help lower the tie rod or raise the tie rod to help with bump steer and steering geometry problems. Designed for car applications it could be used for pickup applications depending on the dimensions of the tapered portion of the stud. These dimensions should help verify fit to a particular application: TAPER INFO: APPROX .460" DIA SMALL END APPROX .615" DIA LARGE END UNDER NUT END OF THREADS/BEGINNING OF TAPER TO BOTTOM OF NUT APPROX 1.055" 5/8" END IS 3" LONG WITH APPROX 2 3/4" THREADS Again this is GM taper which is 10 degree versus 7 degree for the Ford/Mopar
