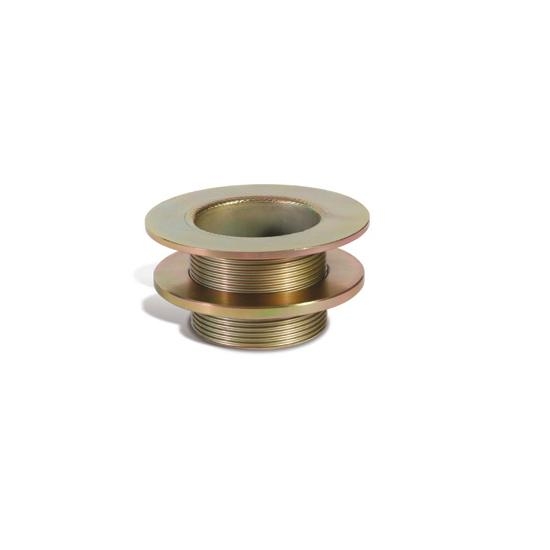

AFCO Adjustable Spring Spacer

AFCO Adjustable Spring Spacer

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Maximize your spring tuning capabilities with these adjustable spring shims. Hidden-style shim is out of sight above the spring. Threaded steel two-piece design. Adjust the shim to where you want and then spot weld it.

  • Features a 2-7/8" center hole to allow use with stock style shocks
  • Can be used with either 5" or 5-1/2" diameter springs
  • ACME threads for high strength
  • Allows 2" range of height adjustment
  • Trim sleeve for initial fit then weld

Customer Reviews

Rated 4 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
1
4 Stars
0
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

55ford
Verified Purchaser
Mesa, AZ, USA

very high quality

September 18, 2014
Excellent t product, exceptional service. Should menation that this will raise the car about twice what you set. I set it 1 5/8 inches a d it raised the car 3 inches. Easy adjustment but it could have been avoided. Speedway is the best.
Pros:
  • very easy to i stall
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Stude50
Verified Purchaser
Taylorsville, KY 40071, USA

Hard to install

September 17, 2014
Impossible to remove the spring compressor with the full length. We installed it on a 14" spring and had to cut the excess off the spacer to give us room.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

Does this fit up in the spring pocket of a stock front clip!? I have a 1979 Caprice and have 12 inch springs need another inch to make ride height!

Dale555
December 18, 2013

Does this fit up in the spring pocket of a stock front clip!? I have a 1979 Caprice and have 12 inch springs need another inch to make ride height!

Answers

December 19, 2013
EricM
Yes these will work fine for the front of your stock clip 79 Caprice.
1 answers

is this price for 2 of them? I need two spring spacers for 1967 cougar.Item # is 10620187.

braco
Hamilton, ON, Canada
September 23, 2013

is this price for 2 of them? I need two spring spacers for 1967 cougar.Item # is 10620187.

Answers

September 23, 2013
Jason
The Afco adjustable spring spacer is sold as each(1)
1 answers

Can you tell me the outside diameter of the thread? I'd like to use these with a set of 3.5" I.D. springs, assuming the thread diameter on the body isn't too big.

Stamperman
Central Ohio, OH, USA
January 24, 2013

Can you tell me the outside diameter of the thread? I'd like to use these with a set of 3.5" I.D. springs, assuming the thread diameter on the body isn't too big.

Answers

January 24, 2013
Jason
The threads on this spring spacer are 3-1/4" od. This should work good with your 3.5" id coil springs
Page 1 of 1

You may also be interested in:

Speedway Adjustable Hidden Spring Shim
(Part #91645551)


Maximize your spring tuning capabilities with these adjustable spring shims. Hidden-style shim is out of sight above the spring. Threaded steel two-piece design. Adjust the shim to where you want and then spot weld it.

Features a 2-7/8" center hole to allow use with stock style shocks. Can be used with either 5" or 5-1/2" diameter springs.

Speedway Adjustable Extended Spring Shim
(Part #91645552)


Maximize your spring tuning capabilities with these adjustable spring shims. Extended-style for use with shorter springs. Threaded steel two-piece design. Adjust the shim to where you want and then spot weld it.

Features a 2-7/8" center hole to allow use with stock style shocks. Can be used with either 5" or 5-1/2" diameter springs.

AFCO 20191 Adjustable Extended Coil Spring Spacer
(Part #10620191)


Allows 2" range of height adjustment when fitting 5" or 5-1/2 " springs into stock stub cars.

  • ACME threads for high strength
  • Trim sleeve for initial fit then weld
  • Use collar to adjust ride height and wedge
