1973-88 GM Midsize Rear Control Arm Spherical Bushing

SAME DAY SHIPPING! Order within the next 59 minutes and receive same day shipping

Specs
Material Type:
Steel
Overall Length:
2.30
Sold in Quantity:
Each
Finish:
Natural
Inside Diameter:
.57
Outside Diameter:
1.922
Flange Diameter:
2.00
Garage Sale:
No
Notes
These are press-in style.
1973-88 GM Midsize Rear Control Arm Spherical Bushing
1973-88 GM Midsize Rear Control Arm Spherical Bushing
1973-88 GM Midsize Rear Control Arm Spherical Bushing

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

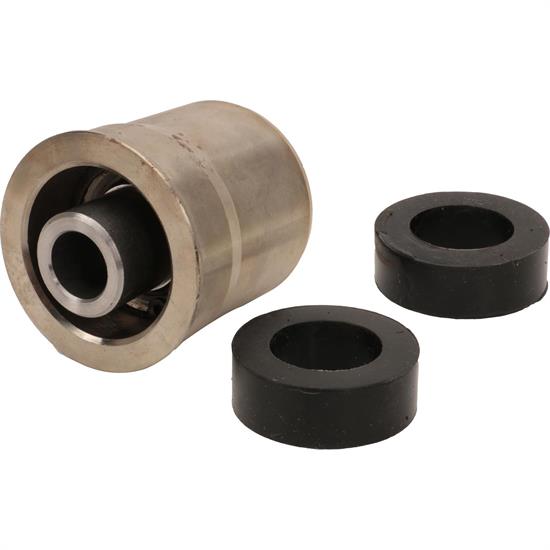

These steel rear control arm bushings have spherical bearings in them, just like a rod end, which frees up suspension movements and eliminates binding. Fits '73-'88 GM midsize upper and lower rear control arms.

Sold individually.

Notes

This unit now includes black rubber inserts for both sides

to make the unit appear more 'stock appearing'.  Please note

that they can be removed to clean and disassemble and

re-assemble the spherical bushing as needed.

Customer Reviews

Rated 4.8 out of 5 by 10 reviewers.
RATING BREAKDOWN
10 reviews
5 Stars
8
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

10x racing
Verified Purchaser
Verified Reviewer
Loyal Wisconsin

best bushing available

June 26, 2015
These bushings will unbind your rear end and make everything completely free. Squirt a little penetrating oil on them every so often and that's it for maintenance.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Chris
Verified Purchaser
Oklahoma City

Very NICE

June 05, 2015
These are awesome!
Pros:
  • Cannot See Heim
  • Great price
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Drewse
Verified Purchaser
The SSIPPI

Great Product

May 15, 2015
Installed in Pro Truck
Pros:
  • Longer Lasting
Cons:
  • Had To Machine Down 001
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Mudslinger5M
Verified Purchaser
Tulsa, Ok

Good product

May 13, 2015
Very good product, worked as it was advertised. Was easy to install. Would purchase again.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Tiddy
Verified Purchaser
Appleton, WI, USA

Very good product

May 24, 2014
I used this on a 91 camaro rear LCA , helps the rear end articulate around corners a lot more then stock or Polly bushings. The rubber bushings hold the bearing extensions in well. The only spot I wish they would improve on is having grease zerks so u could lube and preload the bearing slightly during normal wear.
Pros:
  • helps aginst rear end bind
  • Great price
  • improves traction
Cons:
  • needs grease zerks
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

rayjay
Verified Purchaser
Illinois, USA

better then stock bushings

March 12, 2013
This will deffently help you pro stock or street stock that just doesn't seem to have the rear end movement that you think it should these are the best fix for the stock 4 link bars and even if your rules say it has to be a bushing you can make rubber that will make these look like bushings
Pros:
  • more rearend movement
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Dan
Verified Purchaser
Quitman,MS

Excellent bushings !

October 26, 2011
I use the on a metric body street stock, racing on a 1/4 mile dirt oval track, Really helps handling...
Pros:
  • No- binding
  • Improves Handling
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Badwrenchracing
Verified Purchaser
Jane, Mo

I would buy this product again and again

January 28, 2011
I would buy this product again and again
Pros:
  • Adjustable
  • Improves Launching
  • Easy To Install
  • Improves Handling
  • Comfortable Ride
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

none
New Mexico

I am going to be buying another set for

March 11, 2010
I think it lets the rearend move much easer than stock bushings
Pros:
  • VERY EASY to install
  • Frees up control arms
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

GSMsport
Brookshire, Tx.

I reccomend this product

March 02, 2010
Frees up rear suspension tremendously.
Pros:
  • Frees up rear suspension
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

9 questions : 9 answers

1 answers

Do you sell rod ends for these bushings? Our rules allow us to run spherical bushings on metric chassis. We would like to build our own rear control arms utilizing these bushings.

coalroller
September 17, 2014

Do you sell rod ends for these bushings? Our rules allow us to run spherical bushings on metric chassis. We would like to build our own rear control arms utilizing these bushings.

Answers

September 17, 2014
EricM
Sorry we do not sell the spherical bearing that is in this bushing as a separate item. If the rules allow you to use a heim joint such as 15031008 or 15031208 you would be much better off both cost and strength wise.
1 answers

Can you buy just the bushing adapter inserts?

Samuel
August 09, 2014

Can you buy just the bushing adapter inserts?

Answers

August 11, 2014
EricM
Sorry I do not offer the adapter inserts separately.
1 answers

WHAT BOLT DIAMETER DO YOU RECCOMEND TO USE FOR THESE BUSHINGS I VE TRIED AMERICAN BOLTS AND METRIC BOLTS THEY ARE EITHER LOOSE IN THE BUSHINGS OR WONT FIT DEPENDING ON SIZE ANY INFO WOULD BE GREATLY APRECIATED THANKS

RACINGBOYS
Ohio, USA
March 02, 2014

WHAT BOLT DIAMETER DO YOU RECCOMEND TO USE FOR THESE BUSHINGS I VE TRIED AMERICAN BOLTS AND METRIC BOLTS THEY ARE EITHER LOOSE IN THE BUSHINGS OR WONT FIT DEPENDING ON SIZE ANY INFO WOULD BE GREATLY APRECIATED THANKS

Answers

March 03, 2014
EricM
To have a nice snug fit use 9/16" bolts with these bushings. Most of our customers typically use 1/2" bolts however. The 1/2" bolt will be a little loose in the bushing adapters but will not be a problem once bolted up tight into the frame.
1 answers

Are these bushings for the upper rear control arms in rear or the lower rear control arms

CAR Motorsports
plantersville tx
January 14, 2011

Are these bushings for the upper rear control arms in rear or the lower rear control arms

Answers

January 18, 2011
Eric
These bushings will fit both upper and lower rear control arms.
1 answers

Would these fit in the upper housing GM G body (upper control arm rear mount, ears on axle)?

Joe Frits
Saint Paul Park, MN
March 29, 2011

Would these fit in the upper housing GM G body (upper control arm rear mount, ears on axle)?

Answers

March 30, 2011
Scott
These bushings are meant to be used on Street Stock and Hobby Stock cars. Without know your exact dimension on you ears on your rearend I could never guarantee a fit. If you could look at the dimension and compare them to what you have there it would help. The dimensions are as followed: · Hole through bushing: 9/16" ID · Length at center: 2.316" · Length at outside diameter: 1.955" · Outside diameter: OD of bushing has a step (as do original equipment bushings) Step measures 1.912" OD Rest of bushing measures 1.843" OD
1 answers

do you think it will help to run these on an asphalt street stock?

iceman
jefferson, pa
March 10, 2012

do you think it will help to run these on an asphalt street stock?

Answers

March 12, 2012
Eric
Yes these will help any and all race cars that use this style of bushing since it will free up the suspension to travel without friction like a rubber or polyurethane bushing will.
1 answers

How many should I use in my street stock 2 uppers or 2 upper and 2 lower?

woody
ocean springs MS
June 20, 2011

How many should I use in my street stock 2 uppers or 2 upper and 2 lower?

Answers

June 21, 2011
Jason
Intalling in uppers will help but I would install in both for full advantage of part.
1 answers

would these bushings be used on the frame mount or the frame and rear end?

Jewellman
April 05, 2015

would these bushings be used on the frame mount or the frame and rear end?

Answers

April 06, 2015
EricM
If this spherical bushing is allowed by your rules then i would install them in all eight positions on the rear control arms. These bushings will significantly improve the articulation of the rear end and allow it to move freely.
1 answers

Are these bushings supposed to be greased or lubricated? If so what type of lube is recommended?

dwwhit
Anderson SC
May 03, 2015

Are these bushings supposed to be greased or lubricated? If so what type of lube is recommended?

Answers

May 05, 2015
Eric
Expert
Yes you should use some sort of lubrication such as WD40 or similar. Use the same lube as you would on a rod end.
Page 1 of 1
