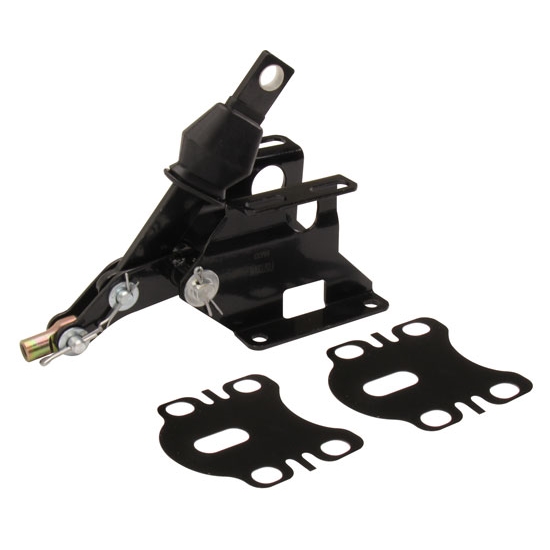

1964-1966 Mustang Brake Booster Mounting Bracket Kit for 91031409

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Overall Length:
3.63
Color:
Black
Sold in Quantity:
Each
Finish:
Powder Coated
Bolt Hole Pattern:
3.38" x 3.38"
Material Thickness:
0.12
Garage Sale:
No
Notes
Includes shim.
1964-1966 Mustang Brake Booster Mounting Bracket Kit for 910314091964-1966 Mustang Brake Booster Mounting Bracket Kit for 91031409
1964-1966 Mustang Brake Booster Mounting Bracket Kit for 91031409

Click image to enlarge

Speeday Motors Logo
X
1964-1966 Mustang Brake Booster Mounting Bracket Kit for 91031409

Details

Reviews

Q & A

What's in the Box

This bracket makes it easy to convert to power brakes. It is designed to convert a manual brake Mustang to power brakes. It is NOT an OEM replacement bracket. It accepts our 7” booster and 1” master cylinder combo number 91031409. The booster mount pattern is 3-3/8” center to center both vertically and horizontally in a 4 bolt square pattern.

  • Makes it easy to convert to power brakes
  • Designed to convert a manual brake Mustang to power brakes
  • Accepts our 7” booster and 1” master cylinder combo: number 91031409
  • Mount pattern: 3-3/8” center to center
  • 4 bolt square pattern
